更多>>测量时钟振荡器Cardinal频率稳定性
来源:http://www.kangbidz.com 作者:康比电子 2023年09月06
Cardinal Clock Oscillator Stability
Cardinal时钟振荡器稳定性Measuring Clock Oscillator Frequency Stability
测量时钟振荡器频率稳定性
Oscillators exhibit a number of frequency/period instabilities. Manufacturers generally specify their oscillators in terms of short term, long term, and environmental frequency stability.
振荡器表现出许多 频率/周期不稳定性。 制造商通常会指定他们的石英晶体振荡器在短期内长期、长期和环境频率稳定性

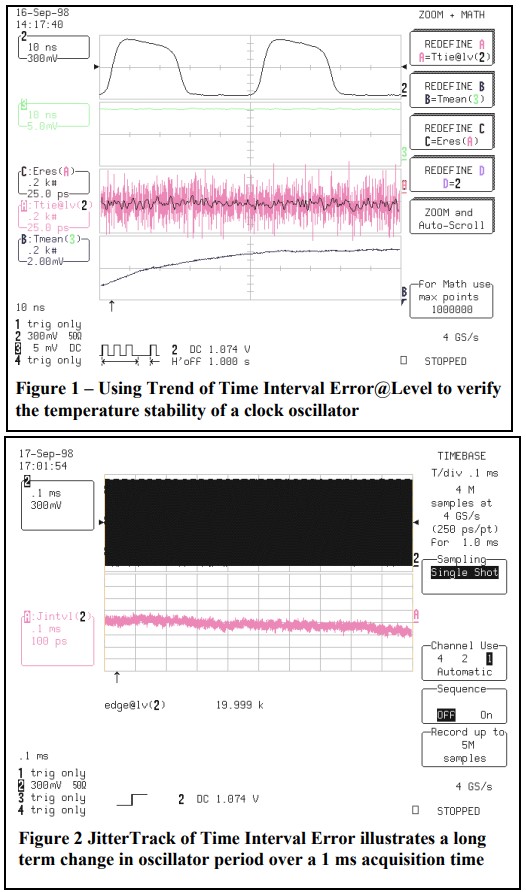

Environmental stability reflects the effects of temperature, vibration, power supply variations, and other environmental factors on an oscillator’s output frequency or phase. Figure 1 is an example of the stability of a clock oscillator during warmup from a cold start. The actually oscillator output is shown in Trace 2. The lower trace (trace B) is the trend of mean internal temperature (1mV = 1° C). It shows that during startup the internal temperature increases by about 8° C over a period of 2000 seconds. During that time the average change in the oscillators period is about ±25 ps. This is read in trace C which contains the smoothed measurement of the trend of time interval error at level (tie@lv) . Time interval error at level measures the time difference of an oscillator’s measured period from an ideal period. Trace A, the trend of tie @lv, is overlaid on the smoothed trace. It shows a peak to peak variation of slightly more than ±100 ps. Temperature variation has little effect on this oscillator.
环境稳定性反映了温度、振动、电源变化和其他环境因素对振荡器输出频率或相位的影响。图1是时钟振荡器在冷启动预热期间的稳定性示例。实际振荡器输出如图2所示。较低的轨迹(轨迹B)是平均内部温度(1mV=1°C)的趋势。它表明,在启动过程中,内部温度在2000秒内增加了约8°C。在这段时间内,石英晶体振荡器周期的平均变化约为±25 ps。这在轨迹C中读取,轨迹C包含对水平上时间间隔误差趋势的平滑测量(tie@lv)。电平上的时间间隔误差测量振荡器的测量周期与理想周期的时间差。轨迹A(tie@lv的趋势)覆盖在平滑轨迹上。它显示出略高于±100 ps的峰间变化。温度变化对这个振荡器几乎没有影响
Long term stability, illustrated in figure 2, involves a gradual drift in oscillator timing. Long term stability generally includes oscillator aging but excludes environmentally induced drift. Aging, in crystal oscillator is caused by a variety of electromechanical mechanisms. Long term stability is usually expressed in parts per million or ppm. A typical specification of 10 ppm means that over a 1 ms interval the clock period can change by 10 ns: △t=1ms*(10/1,000,000) =10 ns
长期稳定性,如所示 图2涉及一个逐渐漂移振荡器定时。长期的稳定性通常包括振荡器老化,但不包括环境引起的漂移。老化,在晶体振荡器中引起通过各种机电 机制。长期稳定性 通常用份/来表示 百万或百万分之一。10 ppm的典型规格意味着 在1毫秒的时间间隔内,时钟 周期可以变化10 ns:△t=1ms*(10/1,000,000) =10ns

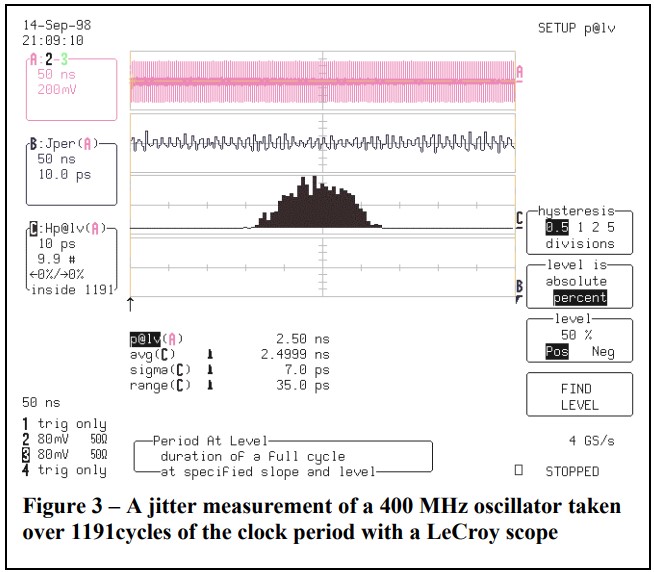

Short term stability is a function of noise signals within the oscillator and represents a phase modulation of the oscillator output. Short term stability can be specified in the time domain as jitter. The greatest drawback to this method of specifying short term stability is that it is dependent of the measurement interval. The longer the measurement observation time the greater the peak to peak jitter magnitude. Figure 3 shows a typical jitter measurement of a 400 MHz Surface Acoustic Wave (SAW) oscillator. The mean or average period is 2.4999 ns with an rms jitter (sigma) of 7 ps and a peak to peak jitter (range) of 35 ps. Note that the manufacturer of this oscillator specifies that peak to peak jitter for a measurement duration of 1000 cycles.
短期稳定性是一个函数振荡器中的噪声信号,代表一个贴片石英晶振相位振荡器输出的调制。短期稳定性可以是 在时域中指定为 抖动。最大的缺点是 这种指定short的方法术语稳定性在于它依赖于测量间隔。 测量观察时间越长 峰峰值抖动幅度。 图3显示了典型的抖动 400 MHz的测量 表面声波 振荡器。平均值或平均数 均方根周期为2.4999 ns 7 ps的抖动(σ)和峰值 峰值抖动(范围)为35 ps。 请注意,制造商这个振荡器指定了那个峰值 为了测量峰值抖动 1000个周期的持续时间。
Many manufacturers minimize the observation time dependency by specifying the oscillator short term stability in terms of the Allan Variance. The Allan Variance uses the frequency difference between adjacent frequency measurements, usually made with a frequency counter, to compute the variance of oscillator output frequency.
许多制造商尽量减少 观察时间相关性 通过指定振荡器短路 根据Allan方差的项稳定性。艾伦方差 使用频率差 相邻频率之间 测量,通常使用 一个频率计数器,用来计算振荡器输出的方差 频率。
Short term stability can also be specified in the frequency domain as phase noise. Phase noise characterizes the shape of the frequency spectrum of the oscillator. A typical phase noise specification is –100 dbC at 10 kHz offset from the carrier. Phase noise can be measured using a narrowband FFT spectrum analyzer (12-16 bit amplitude resolution) or a dedicated phase noise measurement system.
短期稳定性也可以 在频域中指定 作为相位噪声。相位噪声 表征的形状振荡器的频谱。典型相位噪声 10时的规格为–100 dbC 与载波的kHz偏移。 石英晶振相位噪声可以使用窄带FFT频谱来测量 分析器(12-16位振幅 分辨率)或专用阶段 噪声测量系统。
The greatest strength of the LeCroy jitter and timing analysis package is the ability to study both long term and short term variations in oscillator timing. Long memory and SmartTriggers make it easy to acquire and display this data Specialized jitter measurements combined with the capability to measure and correlate the effects of other parameters such as temperature or supply voltage are ideal for evaluating environmental stability
勒罗伊抖动和时序分析的最大优势包是学习的能力 长期和短期振荡器定时的变化。 长记忆和智能触发器 使采集和显示这种数据变得容易专门抖动 测量值与 能够测量和关联温度或电源电压等其他参数的影响是评估环境稳定性的理想选择。
