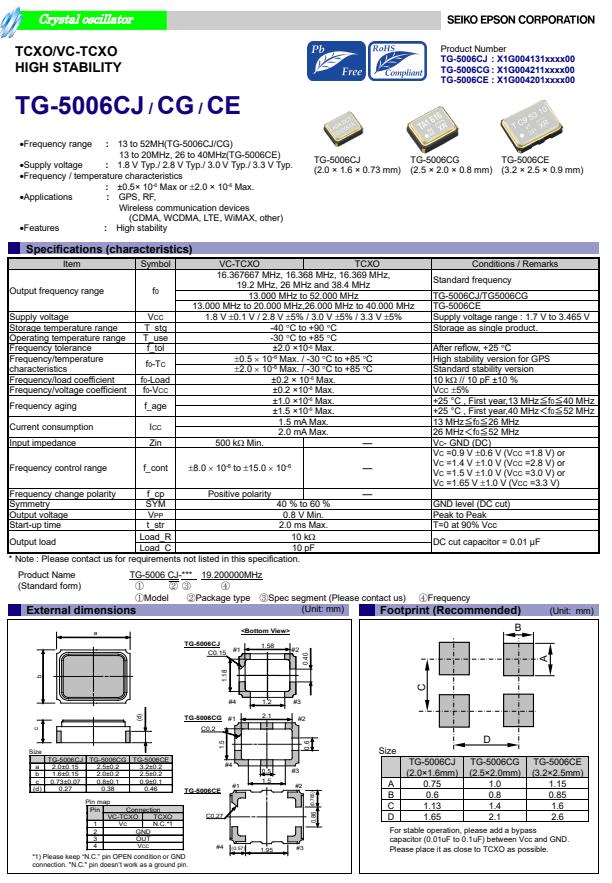

罗拉模块低电压温补晶振X1G004131004916，由于爱普生公司的知名度持续上涨，吸引了无数用户的关注，并为爱普生公司的产品刷新了新的记录，销量的创新高，使得爱普生公司名利双收，也快速放大其在晶体行业的影响力，借着影响力快速推出了高性能的有源晶振，TCXO温补晶振产品，这款TG-5006CJ晶振，编码X1G004131004916，频率26.000000兆赫，输出剪波正弦波，电源电压1.70 ~ 1.90 V，电源电压(一般)1.800 V，尺寸(LxWxH)2.0 x 1.6 x 0.7 mm，工作温度-30至+85°C，频率公差+/- 2.0 ppm，具有低损耗，低抖动，高性能的特点,非常适用于罗拉模块，无线模块，智能家居，投影机，5G无线模块，电子产品等领域，也是各种电子最佳的搭档。

爱普生晶振	Model	Frequency	LxWxH	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G004131002616	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-1.5 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131002916	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	2.600 to 3.000 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003116	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003216	TG-5006CJ	26.635300 MHz	2.00 x 1.60 x 0.73 mm	2.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003316	TG-5006CJ	28.974000 MHz	2.00 x 1.60 x 0.73 mm	2.700 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003416	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131003616	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 2.940 V	+/-1.5 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131003716	TG-5006CJ	19.200000 MHz	2.00 x 1.60 x 0.73 mm	2.660 to 2.940 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131003816	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C	+/-1.50 ppm
X1G004131004116	TG-5006CJ	40.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-40 to +85 °C	+/-0.50 ppm
X1G004131004216	TG-5006CJ	32.000000 MHz	2.00 x 1.60 x 0.73 mm	2.850 to 3.150 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G004131004416	TG-5006CJ	24.576000 MHz	2.00 x 1.60 x 0.73 mm	3.135 to 3.465 V	+/-2.0 ppm	-30 to +85 °C	+/-0.50 ppm
X1G004131004916	TG-5006CJ	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-2.0 ppm	-30 to +85 °C	+/-2.00 ppm
X1G005371020016	TG2016SKA	26.000000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005371020316	TG2016SKA	38.400000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005371020616	TG2016SKA	49.580000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005371030116	TG2016SKA	26.000000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm

爱普生公司拥有世界顶端的机械技术,是全球数码映像的领军企业,同时也生产打印机和影印机等产品.而在电子元器件中,占主席地位,石英晶振中,EPSON爱普生做的异常出色具了解，爱普生现已实现成为石英部件的NO1，40多年前为支持SEIKO(精工)手表而成立的Epson石英部件部门强在PC、NB、手机及消费电子等运用上,市占率高达七八成,其中又以32.768k晶振称霸业界。爱普生以提供原子钟的精准振荡器知名业界。
