2016mm无源贴片晶振Q22FA1280013200专属于汽车氛围灯控制器，在这个变化莫测的世界之中，唯有掌握核心技术才是基本，随着市场对于5G技术有了更高更严的要求，而5G最主要的当属芯片，与芯片工作密不可分的电子元器件之一就是它的左邻右舍---晶振。石英晶振的作用是提供精准信号源与之配合，以协作模式实现设备之间借由网络渠道达到数据高速传输（交换）的目的。

Product Number	爱普生晶振	Model	Frequency	CL Value	Freq.tol. @+25°C
Q22FA1280010800	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	12 pF	+/-30 ppm
Q22FA1280011200	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	10 pF	+/-15 ppm
Q22FA1280011400	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	9 pF	+/-10 ppm
Q22FA1280011600	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	12 pF	+/-15 ppm
Q22FA1280011900	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	10 pF	+/-20 ppm
Q22FA1280012000	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	8 pF	+/-10 ppm
Q22FA1280012100	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	15 pF	+/-10 ppm
Q22FA1280012500	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-30 ppm
Q22FA1280012600	2 x 1.6 x 0.5mm	FA-128	25.000000 MHz	8 pF	+/-30 ppm
Q22FA1280012700	2 x 1.6 x 0.5mm	FA-128	24.576000 MHz	10 pF	+/-30 ppm
Q22FA1280012900	2 x 1.6 x 0.5mm	FA-128	27.120000 MHz	12 pF	+/-30 ppm
Q22FA1280013100	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-10 ppm
Q22FA1280013200	2 x 1.6 x 0.5mm	FA-128晶振	26.000000 MHz	15 pF	+/-10 ppm
Q22FA1280013500	2 x 1.6 x 0.5mm	FA-128	27.000000 MHz	12 pF	+/-10 ppm
Q22FA1280013700	2 x 1.6 x 0.5mm	FA-128	32.000000 MHz	9 pF	+/-20 ppm
Q22FA1280014000	2 x 1.6 x 0.5mm	FA-128	26.000000 MHz	9 pF	+/-10 ppm
Q22FA1280014100	2 x 1.6 x 0.5mm	FA-128	20.000000 MHz	10 pF	+/-10 ppm
Q22FA1280014300	2 x 1.6 x 0.5mm	FA-128	48.000000 MHz	6 pF	+/-50 ppm
Q22FA1280014500	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	6 pF	+/-10 ppm
Q22FA1280014600	2 x 1.6 x 0.5mm	FA-128	24.000000 MHz	7 pF	+/-10 ppm

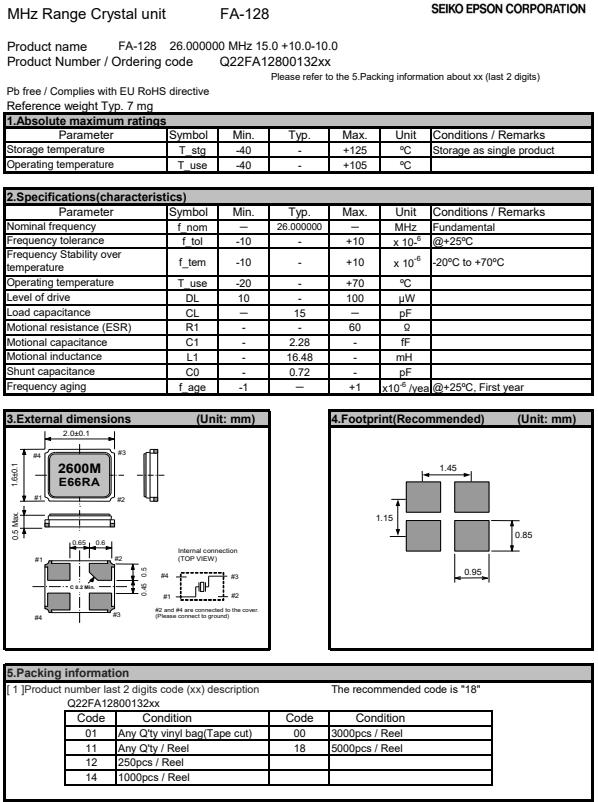

爱普生公司凭着自身独特优势，开发出了FA-128晶振，贴片晶振编码Q22FA1280013200，编码26.000000兆赫，尺寸(LxWxH)2 × 1.6 × 0.5 mm，客户负载电容15pf，频率公差+ / -10 ppm，Fo / temp。特征公差+ / -10 ppm，温度范围-20至+70°C，具有低损耗，高性能的特点，十分适合用于汽车氛围灯控制器，无人机，智能水表，医疗产品，智能家居等领域。
