X1E000251004600小尺寸石英晶体谐振器非常适合可穿戴设备，爱普生公司是一家敢于在激烈市场斗争之中，寻找新的机会，通过自身几十年积累的经验，使得其在晶体行业如鱼得水这般自在，同时，又是一家不断打造自身的竞争力的公司，随之推出了FA-118T晶振，爱普生晶振编码X1E000251004600，频率24.000000兆赫，尺寸(LxWxH)1.6 x 1.2 x 0.35 mm，客户负载电容12pf，频率公差+ / -10 ppm，Fo / temp，特征公差+ / -10 ppm，温度范围-20至+75°C，FA-118T已经作为通信模块的参考时钟商业化，要求精度高，并作为时钟用于无线通信和微机的应用需要小型化的设备(TWS(真无线立体声)、智能手表等)。产品采用多年培育的高精度加工技术打造协助改进客户系统的性能。应用程序用于消费和工业应用的小型通信模块，可穿戴设备，MCU时钟。

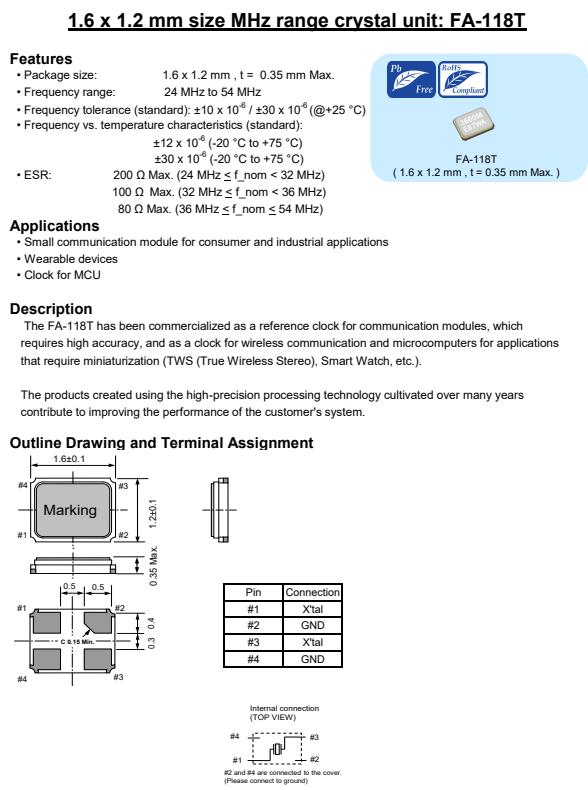

石英晶振特性：包装尺寸:1.6 x 1.2 mm, t = 0.35 mm，频率范围:24 MHz至54 MHz，频率公差(标准):±10 × 10-6 /±30 × 10-6(@+25°C)，频率与温度特性(标准):±12 x 10-6(-20°C至+75°C)，ESR: 200 Ω最大。(24 MHz < f_nom < 32 MHz)，100ΩMax。(32 MHz < f_nom < 36 MHz)，80ΩMax。(36 MHz < f_nom < 54 MHz).

Product Number	LxWxH	Model	Frequency	CL Value	Freq.tol. @+25°C
X1E000411000800	1.2 x 1 x 0.3mm	FA1210AN	32.000000 MHz	8 pF	+/-10 ppm
X1E000411001000	1.2 x 1 x 0.3mm	FA1210AN	32.000000 MHz	8 pF	+/-10 ppm
X1E000411001200	1.2 x 1 x 0.3mm	FA1210AN	32.000000 MHz	8 pF	+/-10 ppm
X1E000251000900	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	+/-30 ppm
X1E000251001100	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm
X1E000251001400	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	9 pF	+/-10 ppm
X1E000251001600	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm
X1E000251003100	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-7 ppm
X1E000251003200	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm
X1E000251003300	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-30 ppm
X1E000251003400	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-30 ppm
X1E000251003500	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	8 pF	+/-20 ppm
X1E000251004600	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	12 pF	+/-10 ppm
X1E000251005000	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm
X1E000251005600	1.6 x 1.2 x 0.35mm	FA-118T	52.000000 MHz	9 pF	+/-15 ppm
X1E000251005700	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	7 pF	+/-30 ppm
X1E000251005900	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm
X1E000251006000	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	10 pF	+/-30 ppm
X1E000251006400	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	12 pF	+/-10 ppm
X1E000251006500	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm
X1E000251006800	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm
X1E000251006900	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	10 pF	+/-30 ppm
X1E000251007100	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-8 ppm
X1E000251007500	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm
X1E000251007700	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-10 ppm
X1E000251007800	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	7 pF	+/-10 ppm
X1E000251007900	1.6 x 1.2 x 0.35mm	贴片晶振FA-118T	32.000000 MHz	9 pF	+/-10 ppm
X1E000251008000	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm
X1E000251008600	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm
X1E000251009900	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	6 pF	+/-30 ppm
X1E000251010200	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	8 pF	+/-30 ppm
X1E000251010400	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-20 ppm
X1E000251011100	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm
X1E000251011300	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm
X1E000251012100	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm
X1E000251012600	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	7 pF	+/-30 ppm
X1E000251013400	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm
X1E000251013800	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm
X1E000251014100	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm
X1E000251014400	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	20 pF	+/-30 ppm
X1E000251015000	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	20 pF	+/-10 ppm
X1E000251015200	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	8 pF	+/-10 ppm
X1E000251015300	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm
X1E000251015500	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-30 ppm
X1E000251015800	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	12 pF	+/-10 ppm
X1E000251016100	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	8 pF	+/-10 ppm
X1E000251016600	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm
X1E000251019000	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-10 ppm
X1E000251019700	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm
X1E000251020100	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	8 pF	+/-10 ppm
X1E000251021200	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	6 pF	+/-10 ppm
X1E000251021500	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-20 ppm
X1E000251021900	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm

X1E000251004600小尺寸石英晶体谐振器非常适合可穿戴设备，高频晶振则由最初的5032mm逐步发展至3225mm贴片晶振以及2520mm贴片晶振。而32.768K晶振由最初的圆柱直插(音叉)晶振，到尺寸为7015mm的贴片晶振，再逐步发展至国前广泛使用的封装尺寸为3215mmmm的产品，未来尺寸为2016mm的贴片晶振，渗透率亦将逐步提升。
