无线通信高稳定性能时钟振荡器CB3-3C-20M0000，CTS公司宣布扩展其CA系列，CB系列汽车级时钟振荡器家族，增加支持免费LVPECL和LVDS输出的设备。所有CA系列器件专为汽车、工业和商业军事/航空航天应用而设计，要求宽的工作温度范围，所有CA系列器件都在TS16949认证的生产线上制造，通过AEC-Q200认证，符合PPAP标准，并在标准汽车温度范围-40°C至+125°C范围内运行。

Manufacturer Part Number原厂代码	Manufacturer品牌	Series型号	Frequency 频率	Frequency Stability频率稳定度
CB3-3C-7M3728	CTS-Frequency Controls	CB3	7.3728MHz	±50ppm
CB3-3C-7M3728	CTS-Frequency Controls	CB3	7.3728MHz	±50ppm
CB3-3C-16M0000	CTS-Frequency Controls	CB3	16MHz	±50ppm
CB3-3C-16M0000	CTS-Frequency Controls	CB3	16MHz	±50ppm
CB3-3C-16M0000	CTS-Frequency Controls	CB3	16MHz	±50ppm
CB3-3C-32M0000	CTS-Frequency Controls	CB3	32MHz	±50ppm
CB3-3C-32M0000	CTS-Frequency Controls	CB3	32MHz	±50ppm
CB3-3C-32M0000	CTS-Frequency Controls	CB3	32MHz	±50ppm
CB3-3C-33M3330	CTS-Frequency Controls	CB3	33.333MHz	±50ppm
CB3-3C-33M3330	CTS-Frequency Controls	CB3	33.333MHz	±50ppm
CB3-3C-33M3330	CTS-Frequency Controls	CB3	33.333MHz	±50ppm
CB3-3C-20M0000	CTS-Frequency Controls	CB3	20MHz	±50ppm
CB3-3C-20M0000	CTS-Frequency Controls	CB3	20MHz	±50ppm
CB3-3C-20M0000	CTS-Frequency Controls	CB3	20MHz	±50ppm
CB3-3C-40M0000	CTS-Frequency Controls	CB3	40MHz	±50ppm
CB3-3C-40M0000	CTS-Frequency Controls	CB3	40MHz	±50ppm
CB3-3C-40M0000	CTS-Frequency Controls	CB3	40MHz	±50ppm
CB3-3C-50M0000	CTS-Frequency Controls	CB3	50MHz	±50ppm
CB3-3C-50M0000	CTS-Frequency Controls	CB3	50MHz	±50ppm
CB3-3C-50M0000	CTS-Frequency Controls	CB3	50MHz	±50ppm
CB3-3I-50M0000	美国CTS晶振	CB3	50MHz	±50ppm
CB3-3I-50M0000	CTS-Frequency Controls	CB3	50MHz	±50ppm
CB3-3I-50M0000	CTS-Frequency Controls	CB3	50MHz	±50ppm
CB3LV-3I-66M0000	CTS-Frequency Controls	CB3LV	66MHz	±50ppm
CB3LV-3I-66M0000	CTS-Frequency Controls	CB3LV	66MHz	±50ppm
CB3LV-3I-66M0000	CTS-Frequency Controls	CB3LV	66MHz	±50ppm
CB3LV-5I-20M0000	CTS-Frequency Controls	CB3LV	20MHz	±25ppm
CB3LV-5I-20M0000	CTS-Frequency Controls	CB3LV	20MHz	±25ppm
CB3LV-5I-20M0000	CTS-Frequency Controls	CB3LV	20MHz	±25ppm
CB3LV-3C-64M0000	CTS-Frequency Controls	CB3LV	64MHz	±50ppm
CB3LV-3C-64M0000	CTS-Frequency Controls	CB3LV	64MHz	±50ppm
CB3LV-3C-64M0000	CTS-Frequency Controls	CB3LV	64MHz	±50ppm
CB3LV-3C-66M6666	CTS-Frequency Controls	CB3LV	66.6666MHz	±50ppm

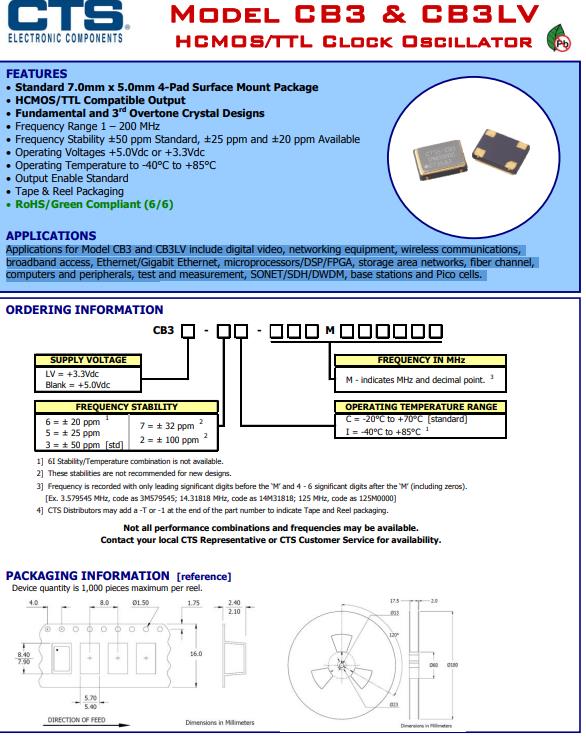

编码CB3-3C-20M0000是一款微型的XO时钟振荡器，石英晶体振荡器，频率20MHZ，输出HCMOS，TTL 电压5V，4-SMD，无引线，标准7.0mm x 5.0mm 4-Pad表面安装包，HCMOS/TTL兼容输出，基本和第三泛音水晶设计，频率范围1 - 200 MHz，频率稳定性±50ppm标准，±25ppm和±20ppm可选，工作电压+5.0Vdc或+3.3Vdc，工作温度-40°C至+85°C。输出启用标准，磁带和卷筒包装.

无线通信高稳定性能时钟振荡器CB3-3C-20M0000，CTS有源晶振应用范围：CB3和CB3LV型号的应用包括数字视频、网络设备、无线通信、宽带接入，以太网/千兆以太网，微处理器/DSP/FPGA，存储区域网络，光纤通道，计算机和外围设备，测试和测量，SONET/SDH/DWDM，基站和Pico单元。
