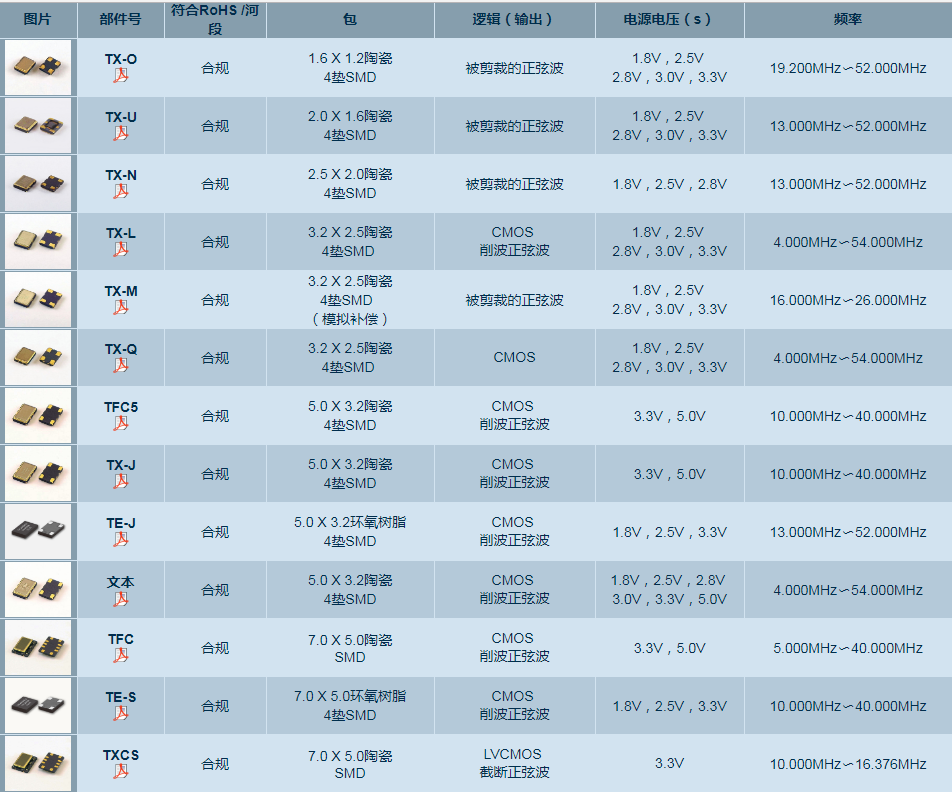

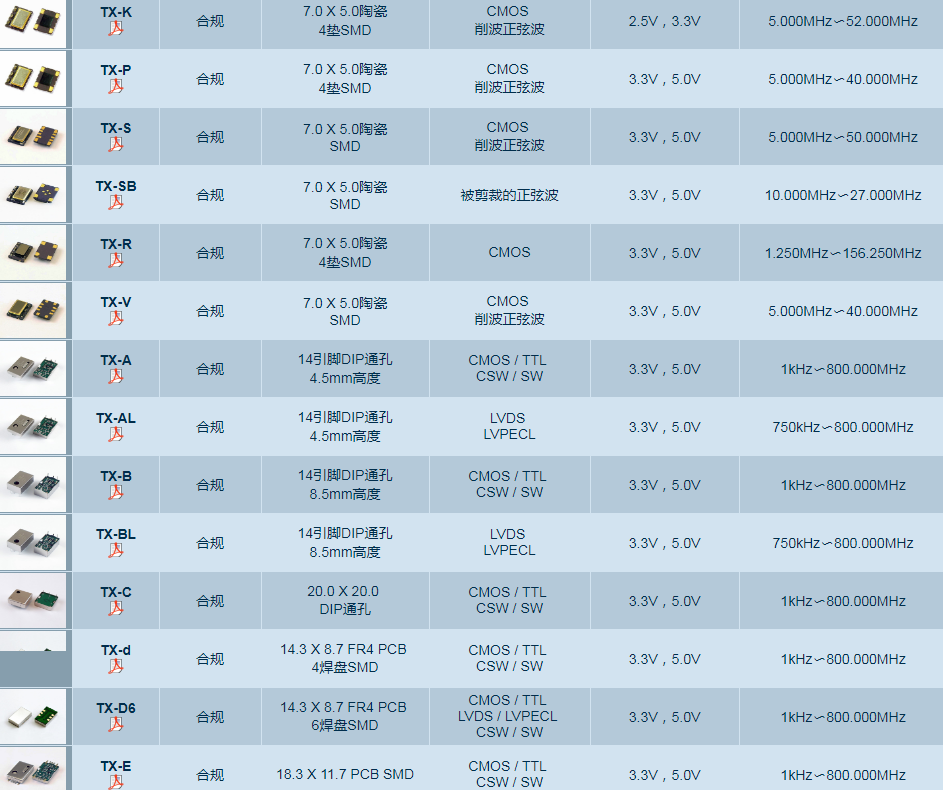

更多>>Transko晶振集团新系列高稳定性温补晶振型号尺寸详情表
来源:http://www.kangbidz.com 作者:kbdzkj 2018年06月16
Transko晶振集团是一家位于加利福尼亚州阿纳海姆的通过ISO 9001认证的变频控制设备解决方案供应商,专业生产石英晶振,贴片晶振,有源晶振,压控晶振,滤波器等频率元件.通过质量和经验,自1992年以来,其他许多其他产品我们得到了援助.
让我们与众不同的是Transko Advantage –具有快速交付能力。能够在72小时内提供产品,高度积极的销售人员为您的频率控制要求提供优异的定价和解决方案。通过结合杰出员工的知识和广泛背景,能够解决和定制您的特定项目或设计需求,Transko团队导向的环境和高效的生产人员不断让我们的客户满意,并使我们能够提供最好的支持。
Transko宣布推出适用于基站,无线回程和核心网络设备应用的新系列高稳定性TCXO晶振TX-P系列。提供CMOS和削波正弦波输出,在-10°C至60°C的工作温度范围内具有±0.05ppm的频率稳定性,在-10°C至70°C范围内具有±0.1ppm的频率稳定度,这些器件还具有可选的电压调整范围线性10%时为±5ppm。此外,由于TX-P系列在100Hz失调时可以达到-130dBc/Hz,而在26MHz CMOS输出时可以达到-145dBc/Hz@1KHz失调,因此相位噪声性能非常出色。成本比OCXO更合理 Transko crystal oscillator group is an iso 9001 certified solution supplier for frequency conversion control equipment located in Anaheim, California. it specializes in producing Shi Ying crystal oscillator, patch crystal oscillator, active crystal oscillator, voltage controlled crystal oscillator, filter and other frequency components. through quality and experience, we have received assistance for many other products since 1992.
What sets us apart is trans ko advantage – fast delivery capability. Able to provide products within 72 hours, highly active salespeople provide excellent pricing and solutions for your frequency control requirements. By combining the knowledge and extensive background of outstanding employees, you can solve and customize your specific project or design requirements. Trans ko's team-oriented environment and efficient production staff have continuously satisfied our customers and enabled us to provide the best support.
Trans ko announces new series of high stability tcxo tx - p series suitable for base station, wireless backhaul and core network equipment applications. Provides CMOS and clipped sine wave outputs with 0.05 ppm frequency stability in the operating temperature range of - 10 c to 60 c, 0.1 ppm frequency stability in the range of - 10 c to 70 c, and 5 ppm when the optional voltage adjustment range is 10 % linear. In addition, since the tx - p series can reach - 130 DBC / Hz at 100 Hz offset and -45 DBC/Hz@1 khz offset at 26 MHz CMOS output, the phase noise performance is excellent. The cost is more reasonable than ocxo
让我们与众不同的是Transko Advantage –具有快速交付能力。能够在72小时内提供产品,高度积极的销售人员为您的频率控制要求提供优异的定价和解决方案。通过结合杰出员工的知识和广泛背景,能够解决和定制您的特定项目或设计需求,Transko团队导向的环境和高效的生产人员不断让我们的客户满意,并使我们能够提供最好的支持。
Transko宣布推出适用于基站,无线回程和核心网络设备应用的新系列高稳定性TCXO晶振TX-P系列。提供CMOS和削波正弦波输出,在-10°C至60°C的工作温度范围内具有±0.05ppm的频率稳定性,在-10°C至70°C范围内具有±0.1ppm的频率稳定度,这些器件还具有可选的电压调整范围线性10%时为±5ppm。此外,由于TX-P系列在100Hz失调时可以达到-130dBc/Hz,而在26MHz CMOS输出时可以达到-145dBc/Hz@1KHz失调,因此相位噪声性能非常出色。成本比OCXO更合理 Transko crystal oscillator group is an iso 9001 certified solution supplier for frequency conversion control equipment located in Anaheim, California. it specializes in producing Shi Ying crystal oscillator, patch crystal oscillator, active crystal oscillator, voltage controlled crystal oscillator, filter and other frequency components. through quality and experience, we have received assistance for many other products since 1992.
What sets us apart is trans ko advantage – fast delivery capability. Able to provide products within 72 hours, highly active salespeople provide excellent pricing and solutions for your frequency control requirements. By combining the knowledge and extensive background of outstanding employees, you can solve and customize your specific project or design requirements. Trans ko's team-oriented environment and efficient production staff have continuously satisfied our customers and enabled us to provide the best support.
Trans ko announces new series of high stability tcxo tx - p series suitable for base station, wireless backhaul and core network equipment applications. Provides CMOS and clipped sine wave outputs with 0.05 ppm frequency stability in the operating temperature range of - 10 c to 60 c, 0.1 ppm frequency stability in the range of - 10 c to 70 c, and 5 ppm when the optional voltage adjustment range is 10 % linear. In addition, since the tx - p series can reach - 130 DBC / Hz at 100 Hz offset and -45 DBC/Hz@1 khz offset at 26 MHz CMOS output, the phase noise performance is excellent. The cost is more reasonable than ocxo
