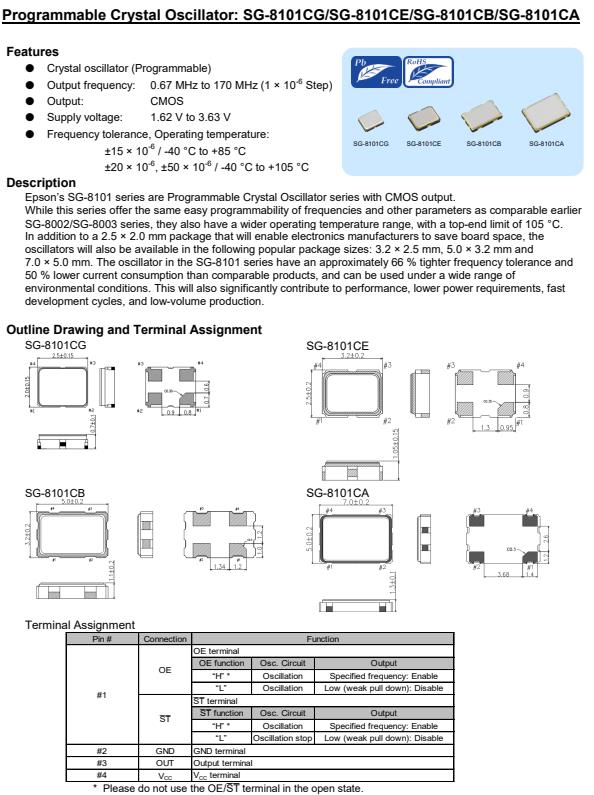

PCBA专用系列晶振产品X1G005191002700，爱普生公司倾其所有将打造最具有核心竞争力的产品线，从最初的仅有几款产品，到如今涉猎各行各业中，并为各个行业提供优质的产品，同时也实现了实力的快速增长，不懈打磨自身的每一款产品，才有如今这么伟大的成就,并推出了SG-8101CA晶振，有源晶振编码X1G005191002700，频率25.000000兆赫，输出WaveCMOS，电源电压1.62 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.40 mm，工作温度-40至+105°C，频率公差±20ppm，具有低损耗，低电压，低抖动，低相噪声，高精度的特点，广泛用于超高精密应用，PCBA，通信模块，蓝牙，智能家居等应用。

Product Number	爱普生晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature
X1G005191002000	SG-8101CA	22.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002100	SG-8101CA	18.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002200	SG-8101CA	25.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002300	SG-8101CA	69.120000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002400	SG-8101CA	5.560000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191002500	SG-8101CA	66.666000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002600	SG-8101CA	13.516800 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191002700	SG-8101CA	25.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191002800	SG-8101CA	125.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191002900	SG-8101CA	50.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191003000	SG-8101CA	98.304000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003100	SG-8101CA	10.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003200	SG-8101CA	22.660000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005191003300	SG-8101CA	40.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003400	SG-8101CA	40.960000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003500	SG-8101CA	56.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003600	SG-8101CA	9.031680 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005191003700	SG-8101CA	36.126700 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

晶体振荡器是一种电子电路或设备，用于在晶体而不是调谐电路的帮助下产生稳定的频率。原理就是，晶体振动时，它就像一个谐振器，因此会产生一个振荡频率，从而在谐振器电路使用晶体产生振荡。
