更多>>低功耗蓝牙智能灯控制模块TCXO温补晶振X1G004201002000
来源:http://www.kangbidz.com 作者:nies 2022年09月23
随着晶体行业的快速发展,市场上出现新型的晶振产品,并提供更多尺寸的选择空间,爱普生并没有止步于只满足消费者当前最迫切的需求,而是将眼光放至更长远的未来,主动承担起社会责任。并针对当下市场开发高品质的有源晶振产品,以满足市场的需求。

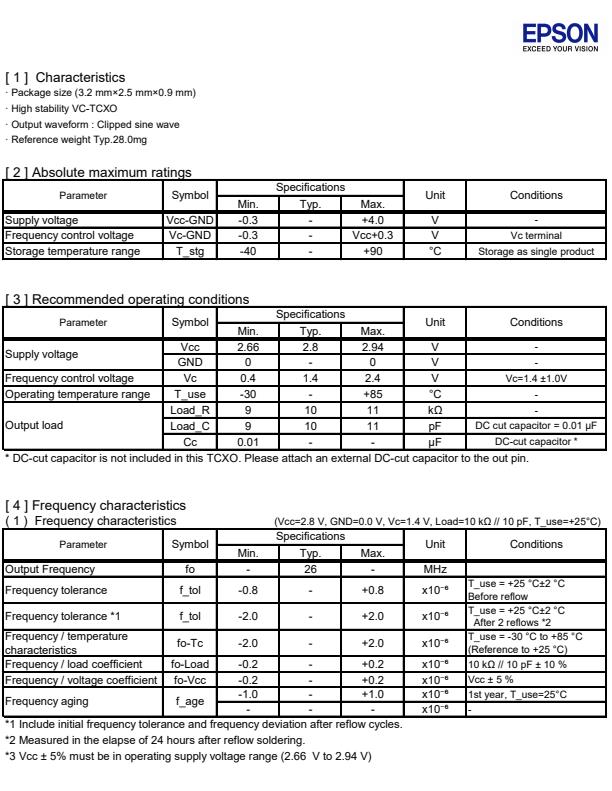

爱普生晶振公司TG-5006CE晶振,编码X1G004201002000,频率26.000000兆赫,输出剪波正弦波,电源电压2.66 ~ 2.94 V,电源电压(一般)2.800 V,尺寸(LxWxH)3.2 x 2.5 x 0.9 mm,工作温度-30至+85°C,频率公差+/- 2.0 ppm,这是一款3225mm的有源晶振,带电压晶振,TCXO温补晶振,具备高精度,低损耗,低电压,低相噪声 低抖动之特点,非常适合用于投影仪,智能家居,医疗设备,无线模块,低功耗蓝牙智能灯控制模块等领域。
石英晶体振荡器为电子产品提供稳定的时钟频率,其精度和稳定度对下游产品的质量、性能以及后期维护成本具有至关重要的影响。而石英晶体振荡器产品的微型化和片式化则对其精度和稳定度提出更大挑战,由于可穿戴设备等下游应用兴起,设备需要满足低功耗以延长产品使用时长,使产品向更高精度、更高稳定度及更低功耗方向发展。
爱普生晶振公司TG-5006CE晶振,编码X1G004201002000,频率26.000000兆赫,输出剪波正弦波,电源电压2.66 ~ 2.94 V,电源电压(一般)2.800 V,尺寸(LxWxH)3.2 x 2.5 x 0.9 mm,工作温度-30至+85°C,频率公差+/- 2.0 ppm,这是一款3225mm的有源晶振,带电压晶振,TCXO温补晶振,具备高精度,低损耗,低电压,低相噪声 低抖动之特点,非常适合用于投影仪,智能家居,医疗设备,无线模块,低功耗蓝牙智能灯控制模块等领域。
Product Number | Model | Frequency | LxWxH | Supply Voltage | F.Tol@25°C | Ope Temperature | Freq/Temp |
X1G004201000600 | TG-5006CE | 16.367667 MHz | 3.20 x 2.50 x 0.90 mm | 1.700 to 1.900 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
X1G004201000800 | TG-5006CE | 16.369000 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
X1G004201000900 | TG-5006CE | 19.200000 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
X1G004201001000 | TG-5006CE | 26.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
X1G004201001300 | TG-5006CE | 16.367667 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-2.00 ppm |
X1G004201001700 | TG-5006CE | 26.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-2.00 ppm |
X1G004201002000 | TG-5006CE | 26.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.660 to 2.940 V | +/-2.0 ppm | -30 to +85 °C | +/-2.00 ppm |
X1G004201002300 | TG-5006CE | 26.000000 MHz | 3.20 x 2.50 x 0.90 mm | 1.700 to 3.465 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
X1G004201002500 | TG-5006CE | 32.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-2.00 ppm |
X1G004201002600 | TG-5006CE | 26.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.660 to 2.940 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
X1G004201003200 | TG-5006CE | 20.000000 MHz | 3.20 x 2.50 x 0.90 mm | 3.135 to 3.465 V | +/-2.0 ppm | -30 to +85 °C | +/-2.00 ppm |
X1G004201003300 | TG-5006CE | 25.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
X1G004201006200 | TG-5006CE | 32.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.850 to 3.150 V | +/-2.0 ppm | -30 to +85 °C | +/-0.50 ppm |
Product Number00 | Model | 爱普生晶振 | LxWxH | Supply Voltage | F.Tol@25°C | Ope Temperature | Freq/Temp |
X1G005101001000 | TG3225CEN | 17.920000 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
X1G005101001500 | TG3225CEN | 12.000000 MHz | 3.20 x 2.50 x 0.90 mm | 3.000 to 3.600 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.50 ppm |
X1G005101001800 | TG3225CEN | 24.515300 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
X1G005101002600 | TG3225CEN | 24.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
X1G005101002900 | TG3225CEN | 16.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
X1G005101003300 | TG3225CEN | 25.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
X1G005101003600 | TG3225CEN | 36.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
X1G005101004100 | TG3225CEN | 40.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
X1G005101004400 | TG3225CEN | 20.000000 MHz | 3.20 x 2.50 x 0.90 mm | 2.375 to 3.630 V | +/-2.0 ppm | -40 to ++85 °C | +/-2.00 ppm |
