更多>>爱普生推出5G无线模块晶振Q3805CA00011100
来源:http://www.kangbidz.com 作者:fiee 2022年09月14

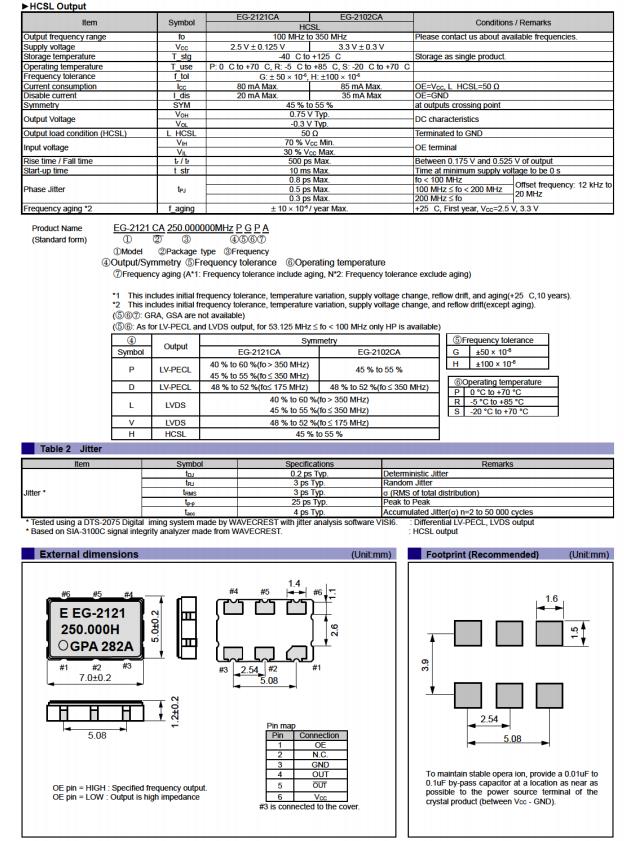

爱普生推出5G无线模块晶振Q3805CA00011100,随着世界在高速变迁高科技悄然发生巨大的变革,智能穿戴,5G无线模块,蓝牙模块,智能家居等应用已经频繁出现在我们的日常生活中,爱普生公司是一家具备慧眼识别机会的公司,能够针对市场的需求设计出适合各个应用领域使用的高质量晶振产品,推出了EG-2121CA晶振,差分晶振编码Q3805CA00011100,频率125.000000兆赫,输出WaveLV-PECL,电源电压2.38 ~ 2.62 V,尺寸(LxWxH)7.00 x 5.00 x 1.20 mm,操作温度-5至+85°C,频率公差±50ppm,额外的OptionsN /OSC TypeClock OSC,这是一款贴片型的有源晶振,5G无线模块晶振,具有非常高的稳定性和可靠性能,非常适用于对设计面积敏感的智能穿戴设备,5G设计,具备优良的耐热性与耐环境特性,是智能家居,5G无线模块的最佳甄选。
比起普通的晶体谐振器,有源晶振技术要求更高,起振性能更稳定,一般都是用在高端的产品身上,大致分为普通晶体振荡器SPXO,TCXO温补晶振TCXO,VCXO压控晶振,VC-TCXO压控温补晶振,OCXO恒温晶振,差分晶振等。每种石英晶体振荡器都具备不一样的功能,但同样拥有低功耗,低电压电流,低相位抖动,低相噪等优异特性。Product Number | Model | Frequency | 爱普生晶振 | Output Wave | Supply Voltage | Ope Temperature |
Q3805CA00010500 | EG-2121CA | 76.800000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00010600 | EG-2121CA | 161.132800 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00010700 | EG-2121CA | 164.355500 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00010800 | EG-2121CA | 166.700000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00010900 | EG-2121CA | 150.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011000 | EG-2121CA | 155.520000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011100 | EG-2121CA | 125.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00011200 | EG-2121CA | 159.375000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011300 | EG-2121CA | 150.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011400 | EG-2121CA | 266.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011500 | EG-2121CA | 311.040000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011600 | EG-2121CA | 100.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011700 | EG-2121CA | 150.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011800 | EG-2121CA | 250.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00011900 | EG-2121CA | 74.250000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00012000 | EG-2121CA | 312.500000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | -5 to 85 °C |
Q3805CA00012100 | EG-2121CA | 137.330000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00012200 | EG-2121CA | 128.750000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00012300 | EG-2121CA | 266.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00012400 | EG-2121CA | 250.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
Q3805CA00012500 | EG-2121CA | 280.000000 MHz | 7.00 x 5.00 x 1.20 mm | LV-PECL | 2.375 to 2.625 V | 0 to 70 °C |
爱普生推出5G无线模块晶振Q3805CA00011100,有源晶振自其诞生以来就一直在通信、电子、航海航空航天及医学等领域扮演重要的角色,具有广泛的用途。在无线电技术发展的初期,它就在发射机中用来产生高频载波电压,在超外差接收机中用作本机振荡器,成为发射和接收设备的基本部件。
