更多>>NX74SA系列高性能HCSL晶体振荡器,7050mm晶振
来源：http://www.kangbidz.com 作者：康比电子 2022年07月16

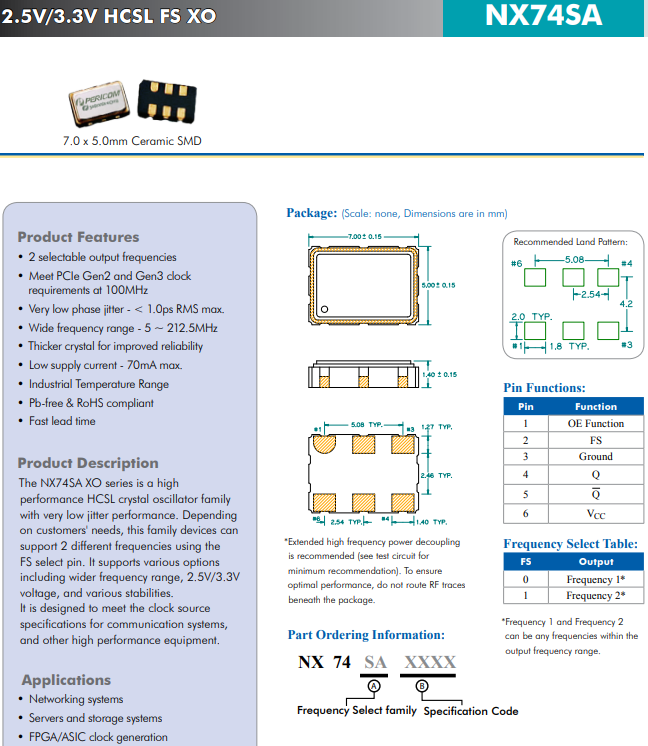

NX74SA XO系列是具有极低抖动性能的高性能HCSL晶体振荡器系列。小体积晶振尺寸7.0mmx5.0mm，HCSL 2频可编程XO，根据客户的需求，该系列器件可以使用FS 选择引脚支持2个不同的频率。它支持多种选择，包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。
产品特点：
2个可选输出频率
满足100MHz的PCIe Gen2和Gen3时钟要求
非常低的相位抖动 - < 1.0ps RMS 最大值。
宽频率范围 - 5~ 212.5MHz有源晶振
更厚的晶体以提高可靠性
低电源电流 - 最大70mA。
工业温度范围
无铅且符合RoHS标准
交货时间快
应用：网络系统，服务器和存储系统，FPGA/ASIC 时钟生成
NX74SA系列高性能HCSL晶体振荡器,7050mm晶振,NX7032C0200.000000,可编程晶振,ECERA振荡器
NX74SA系列高性能HCSL晶体振荡器,7050mm晶振,NX7032C0200.000000,可编程晶振,ECERA振荡器
| FNB000003 | Diodes Incorporated | SaRonix-eCera™ FN | 110MHz | ±50ppm |
| FNC000011 | Diodes Incorporated | SaRonix-eCera™ FN | 120MHz | ±50ppm |
| FNC500123 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±25ppm |
| FNC500124 | Diodes Incorporated | SaRonix-eCera™ FN | 125.009MHz | ±25ppm |
| FNC500127 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±20ppm |
| FNC500134 | Diodes Incorporated | SaRonix-eCera™ FN | 125MHz | ±50ppm |
| FNC500135 | Diodes Incorporated | SaRonix-eCera™ FN | 125.004MHz | ±50ppm |
| SNI750006 | Diodes Incorporated | SaRonix-eCera™ SN | 187.5MHz | ±50ppm |
| SNK000007 | Diodes Incorporated | SaRonix-eCera™ SN | 200MHz | ±50ppm |
| SNL250005 | Diodes Incorporated | SaRonix-eCera™ SN | 212.5MHz | ±50ppm |
| LDA000002 | Diodes Incorporated | SaRonix-eCera™ LD | 100MHz | ±50ppm |
| LDA620002 | Diodes Incorporated | SaRonix-eCera™ LD | 106.25MHz | ±50ppm |
| LDA620003 | Diodes Incorporated | SaRonix-eCera™ LD | 106.25MHz | ±50ppm |
| LDF000001 | Diodes Incorporated | SaRonix-eCera™ LD | 150MHz | ±50ppm |
| LDF000002 | Diodes Incorporated | SaRonix-eCera™ LD | 150MHz | ±50ppm |
| LDF620004 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±50ppm |
| LDF620006 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±50ppm |
| PB5000005 | Diodes Incorporated | SaRonix-eCera™ PB | 50MHz | ±50ppm |
| PB5000007 | Diodes Incorporated | SaRonix-eCera™ PB | 50MHz | ±50ppm |
| PB6250004 | Diodes Incorporated | SaRonix-eCera™ PB | 62.5MHz | ±50ppm |
| PB7500004 | Diodes Incorporated | SaRonix-eCera™ PB | 75MHz | ±50ppm |
| PB7770004 | Diodes Incorporated | SaRonix-eCera™ PB | 77.76MHz | ±50ppm |
| PBA000007 | Diodes Incorporated | SaRonix-eCera™ PB | 100MHz | ±50ppm |
| PBA620006 | Diodes Incorporated | SaRonix-eCera™ PB | 106.25MHz | ±50ppm |
| PBC500006 | Diodes Incorporated | SaRonix-eCera™ PB | 125MHz | ±50ppm |
| PBF620009 | Diodes Incorporated | SaRonix-eCera™ PB | 156.25MHz | ±50ppm |
| PDA000002 | Diodes Incorporated | SaRonix-eCera™ PD | 100MHz | ±50ppm |
| LDA000001 | Diodes Incorporated | SaRonix-eCera™ LD | 100MHz | ±25ppm |
| LDC500003 | Diodes Incorporated | SaRonix-eCera™ LD | 125MHz | ±25ppm |
| LDC500004 | Diodes Incorporated | SaRonix-eCera™ LD | 125MHz | ±25ppm |
| LDF620003 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±25ppm |
| PB6250006 | Diodes Incorporated | SaRonix-eCera™ PB | 62.5MHz | ±25ppm |
| PBA000008 | Diodes Incorporated | SaRonix-eCera™ PB | 100MHz | ±25ppm |
| PBA620007 | Diodes Incorporated | SaRonix-eCera™ PB | 106.25MHz | ±25ppm |
| PBC500008 | Diodes Incorporated | SaRonix-eCera™ PB | 125MHz | ±25ppm |
| PXF620013 | Diodes Incorporated | SaRonix-eCera™ PX | 156.25MHz | ±25ppm |
| LDA620001 | Diodes Incorporated | SaRonix-eCera™ LD | 106.25MHz | ±50ppm |
| LDA620004 | Diodes Incorporated | SaRonix-eCera™ LD | 106.25MHz | ±50ppm |
| LDC500001 | Diodes Incorporated | SaRonix-eCera™ LD | 125MHz | ±50ppm |
| LDC500002 | Diodes Incorporated | SaRonix-eCera™ LD | 125MHz | ±50ppm |
| LDF620001 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±50ppm |
| LDF620002 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±50ppm |
| PB5000006 | Diodes Incorporated | SaRonix-eCera™ PB | 50MHz | ±50ppm |
| PB5000008 | Diodes Incorporated | SaRonix-eCera™ PB | 50MHz | ±50ppm |
| PB6250005 | Diodes Incorporated | SaRonix-eCera™ PB | 62.5MHz | ±50ppm |
| PB7500005 | Diodes Incorporated | SaRonix-eCera™ PB | 75MHz | ±50ppm |
| PB7770003 | Diodes Incorporated | SaRonix-eCera™ PB | 77.76MHz | ±50ppm |
| PBA000009 | Diodes Incorporated | SaRonix-eCera™ PB | 100MHz | ±50ppm |
| PBA620008 | Diodes Incorporated | SaRonix-eCera™ PB | 106.25MHz | ±50ppm |
| PBC500007 | Diodes Incorporated | SaRonix-eCera™ PB | 125MHz | ±50ppm |
Product Parameters
| ProductSeries | NX7 |
|---|---|
| Family | XO |
| Output Logic | HCSL |
| Supply Voltage (V) | 3.3, 2.5 |
| Freq Range (MHz) | 5 to 212.5 |
| Jitter RMS (ps) | <1 |
| PkgType | Ceramic Seam |
| Package Size (mm) | 7.0 x 5.0 x 2.0 |
| Pads | 6 |
NX74SA系列高性能HCSL晶体振荡器,7050mm晶振,NX7032C0200.000000,可编程晶振,ECERA振荡器

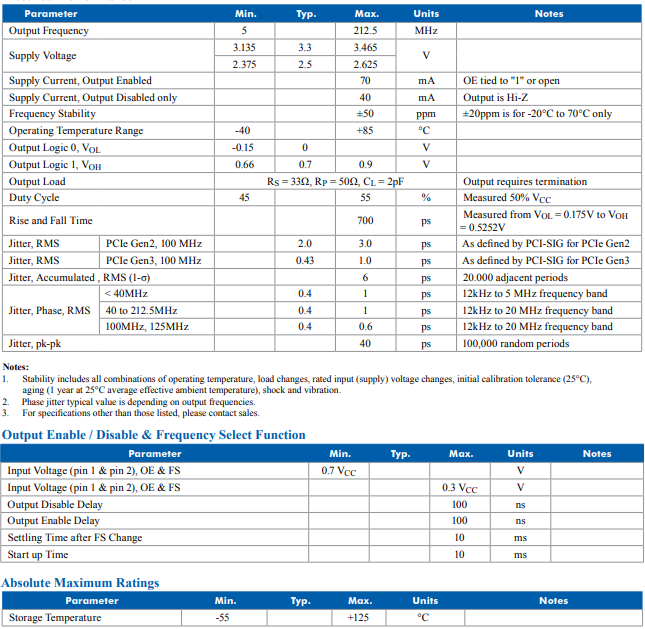

产品参数:
产品参数:
产品系列 NX7
家庭 XO 石英振荡器
输出逻辑 HCSL
电源电压 (V) 3.3, 2.5
频率范围 5至212.5MHz
抖动均方根 (ps) <1
包装类型 陶瓷缝
包装尺寸 7.0x5.0x2.0mm
垫 6脚
NX74SA系列高性能HCSL晶体振荡器,7050mm晶振,NX7032C0200.000000,可编程晶振,ECERA振荡器
NX74SA系列高性能HCSL晶体振荡器,7050mm晶振,NX7032C0200.000000,可编程晶振,ECERA振荡器
| PBF000006 | Diodes Incorporated | SaRonix-eCera™ PB | 150MHz | ±50ppm |
| PD5000003 | Diodes Incorporated | SaRonix-eCera™ PD | 50MHz | ±50ppm |
| PXC500010 | Diodes Incorporated | SaRonix-eCera™ PX | 125MHz | ±50ppm |
| LDA000003 | Diodes Incorporated | SaRonix-eCera™ LD | 100MHz | ±20ppm |
| PBF000005 | Diodes Incorporated | SaRonix-eCera™ PB | 150MHz | ±20ppm |
| LDF620005 | Diodes Incorporated | SaRonix-eCera™ LD | 156.25MHz | ±25ppm |
| PRSONT155 | Diodes Incorporated | SaRonix-eCera™ PR | 155.52MHz | ±50ppm |
| PRETHE156 | Diodes Incorporated | SaRonix-eCera™ PR | 156.25MHz | ±42ppm |
| WT325CF0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±500ppb |
| WT325CF0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±500ppb |
| WT325CF0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±500ppb |
| WT325CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±500ppb |
| WT325CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±500ppb |
| WT325CF0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±500ppb |
| WT325BI0030.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 30MHz | ±2ppm |
| WT325BI0030.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 30MHz | ±2ppm |
| WT325BI0030.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 30MHz | ±2ppm |
| WT3251I0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±2ppm |
| WT3251I0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±2ppm |
| WT3251I0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±2ppm |
| WT325BI0032.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 32MHz | ±2ppm |
| WT325BI0032.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 32MHz | ±2ppm |
| WT325BI0032.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 32MHz | ±2ppm |
| WT3253I0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±2ppm |
| WT3253I0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±2ppm |
NX74SA系列高性能HCSL晶体振荡器,7050mm晶振,NX7032C0200.000000,可编程晶振,ECERA振荡器
| NX71SA | CMOS | 3.32.5 | 5 到 250 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm CMOS 2 频可编程 XO | |
|---|---|---|---|---|---|---|---|---|
| NX71SB | CMOS | 3.32.5 | 5 到 250 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm CMOS 四频可编程XO | |
| NX72SA | LVPECL | 3.32.5 | 5 到 1000 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm LVPECL 2频可编程XO | |
| NX72SB | LVPECL | 3.32.5 | 5 到 1000 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm LVPECL 4频可编程XO | |
| NX73SA | LVDS | 3.32.5 | 5 到 1000 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm LVDS 2 频可编程 XO | |
| NX73SB | LVDS | 3.32.5 | 5 到 1000 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm LVDS 4 频可编程 XO | |
| NX74SA | HCSL | 3.32.5 | 5 至 212.5 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm HCSL 2频可编程XO | |
| NX74SB | HCSL | 3.32.5 | 5 至 212.5 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm HCSL 四频可编程XO | |
| NX76SA | CML | 3.32.5 | 5 到 1000 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm CML 2频可编程XO | |
| NX76SB | CML | 3.32.5 | 5 到 1000 | <1 | 7.0 x 5.0 x 2.0 | 6 | 7.0mmx5.0mm CML 四频可编程XO |
| WT3253I0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±2ppm |
| WT325CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ WT | 19.2MHz | ±500ppb |
| WT325CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ WT | 19.2MHz | ±500ppb |
| WT325CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ WT | 19.2MHz | ±500ppb |
| WT3253F0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±500ppb |
| WT3253F0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±500ppb |
| WT3253F0026.000000 | Diodes Incorporated | SaRonix-eCera™ WT | 26MHz | ±500ppb |
| WT325CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.368MHz | ±500ppb |
| WT325CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.368MHz | ±500ppb |
| WT325CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.368MHz | ±500ppb |
| WT3251F0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±500ppb |
| WT3251F0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±500ppb |
| WT3251F0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±500ppb |
| WT3251I0016.367667 | Diodes Incorporated | SaRonix-eCera™ WT | 16.367667MHz | ±2ppm |
| WT3251I0016.367667 | Diodes Incorporated | SaRonix-eCera™ WT | 16.367667MHz | ±2ppm |
| WT3251I0016.367667 | Diodes Incorporated | SaRonix-eCera™ WT | 16.367667MHz | ±2ppm |
| WT325CI0016.367667 | Diodes Incorporated | SaRonix-eCera™ WT | 16.367667MHz | ±2ppm |
| WT325CI0016.367667 | Diodes Incorporated | SaRonix-eCera™ WT | 16.367667MHz | ±2ppm |
| WT325CI0016.367667 | Diodes Incorporated | SaRonix-eCera™ WT | 16.367667MHz | ±2ppm |
| WT325CI0016.368000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.368MHz | ±2ppm |
| WT325CI0016.368000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.368MHz | ±2ppm |
| WT325CI0016.368000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.368MHz | ±2ppm |
| WT325CI0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±2ppm |
| WT325CI0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±2ppm |
| WT325CI0016.369000 | Diodes Incorporated | SaRonix-eCera™ WT | 16.369MHz | ±2ppm |
我们提供一流的晶体 (Xtal) 和晶体振荡器 (XO)，针对您的设计要求进行了优化。
我们广泛的晶体和晶体振荡器提供：
输出频率范围从 kHz 到 GHz
完整的输出组合： CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的 XO 产品组合，包括标准 XO、VCXO、TCXO 到超低抖动和高温 XO
从 1.0V 到 3.3V 的多个电压范围（甚至是传统的 5V）
大量 SMT 封装选项组合，可满足您的封装要求
