更多>>Diodes编码FN2000115为小体积的CMOS时钟振荡器,广泛用于低抖动应用,ECERA有源晶振
来源:http://www.kangbidz.com 作者:lzf 2022年07月15
At Diodes Incorporated, respect for human rights is ingrained in our core values and in how we conduct business, interact with stakeholders (including customers, employees, and suppliers), and engage with the communities in which we operate. We are cognizant of the potential human rights issues and labor risks that may occur within the semiconductor supply chain, especially for the vulnerable populations in our society, and are committed to protecting and preserving these human rights and promoting human rights awareness.
在Diodes Incorporated,尊重人权根植于我们的核心价值观以及我们如何开展业务,与利益相关者(包括客户、员工和供应商)互动,与我们所在的社区建立联系。我们认识到这种潜力半导体或晶体振荡器供应链中可能出现的人权问题和劳工风险,特别是我们社会中的弱势群体,并致力于保护和维护这些人权,促进人权意识。
PI4ULS3V4857 的时钟频率达到 208MHz,能够支持目前最快的 SD 卡接口 - SD 3.0 SDR104。该 6 位器件也适用于 SDR50 (100MHz)、SDR25 (50MHz)、DDR50 (50MHz) 和 SDR12 (25MHz) 操作。向后兼容性意味着它也可以处理传统的 SD 2.0 高速 (50MHz) 和默认速度(25MHz) 模式。
通过消除对外部电平转换器的需要,节省了大量的电路板空间。内置的100mA LDO 稳压器和电磁干扰 (EMI) 滤波器有助于进一步减少系统组件数量并限制物料清单成本。8kV 静电放电 (ESD) 保护也已集成到转换器设备中,从而确保长期运行。
PI4ULS3V4857采用小尺寸、20球WLCSP封装,现在可提供3000片.
百利通亚陶晶振公司(纳斯达克股票代码:DIOD)今天宣布推出PI4ULS3V4857,这是一款符合 SD 3.0 标准的双向电平转换器,用于通信、消费类和计算系统应用,包括智能手机、笔记本电脑、SD/MicroSD 读卡器、无线接入点和 5G 毫微微蜂窝基站.
PI4ULS3V4857 能够将 1.2V 至 1.8V 主机侧电压转换为 1.8V 或 3.0V 的存储卡电压信号,反之亦然。这允许 SD 3.0 存储卡与最新的低压微处理器、SoC 和 ASIC 结合使用,其传输时间比其他数据存储解决方案短得多。FN1220027 | Diodes晶振 | SaRonix-eCera™ FN | 12.288MHz | ±25ppm | -40°C ~ 85°C |
FN1430053 | Diodes晶振 | SaRonix-eCera™ FN | 14.318MHz | ±25ppm | -40°C ~ 85°C |
FN2000115 | Diodes晶振 | SaRonix-eCera™ FN | 20MHz | ±25ppm | -40°C ~ 85°C |
FN2500156 | Diodes晶振 | SaRonix-eCera™ FN | 25MHz | ±20ppm | -20°C ~ 70°C |
FN2500171 | Diodes晶振 | SaRonix-eCera™ FN | 25MHz | ±25ppm | -40°C ~ 85°C |
FN2500175 | Diodes晶振 | SaRonix-eCera™ FN | 25MHz | ±25ppm | -40°C ~ 85°C |
FN2500177 | Diodes晶振 | SaRonix-eCera™ FN | 25.002MHz | ±25ppm | -40°C ~ 85°C |
FN2700077 | Diodes晶振 | SaRonix-eCera™ FN | 27MHz | ±20ppm | -20°C ~ 70°C |
FN3000041 | Diodes晶振 | SaRonix-eCera™ FN | 30MHz | ±25ppm | -40°C ~ 85°C |
FN3200033 | Diodes晶振 | SaRonix-eCera™ FN | 32MHz | ±25ppm | -40°C ~ 85°C |
FN3270028 | Diodes晶振 | SaRonix-eCera™ FN | 32.768MHz | ±25ppm | -40°C ~ 85°C |
FN3600001 | Diodes晶振 | SaRonix-eCera™ FN | 36MHz | ±25ppm | -40°C ~ 85°C |
FN3600019 | Diodes晶振 | SaRonix-eCera™ FN | 36MHz | ±25ppm | -40°C ~ 85°C |
FN3710001 | Diodes晶振 | SaRonix-eCera™ FN | 37.125MHz | ±25ppm | -40°C ~ 85°C |
FN3840008 | Diodes晶振 | SaRonix-eCera™ FN | 38.4MHz | ±20ppm | -20°C ~ 70°C |
FN4000162 | Diodes晶振 | SaRonix-eCera™ FN | 40MHz | ±20ppm | -20°C ~ 70°C |
FN4800077 | Diodes晶振 | SaRonix-eCera™ FN | 48MHz | ±25ppm | -40°C ~ 85°C |
FN5000118 | Diodes晶振 | SaRonix-eCera™ FN | 50MHz | ±25ppm | -40°C ~ 85°C |
FN6660075 | Diodes晶振 | SaRonix-eCera™ FN | 66.67MHz | ±25ppm | -40°C ~ 85°C |
FN6660076 | Diodes晶振 | SaRonix-eCera™ FN | 66.66MHz | ±25ppm | -40°C ~ 85°C |
FNA620051 | Diodes晶振 | SaRonix-eCera™ FN | 106.25MHz | ±50ppm | -20°C ~ 70°C |
FND330009 | Diodes晶振 | SaRonix-eCera™ FN | 133.33MHz | ±50ppm | -20°C ~ 70°C |
SXF000007 | Diodes晶振 | SaRonix-eCera™ SX | 150MHz | ±50ppm | -20°C ~ 70°C |
SXF550007 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±50ppm | -20°C ~ 70°C |
SXF620007 | Diodes晶振 | SaRonix-eCera™ SX | 156.25MHz | ±50ppm | -20°C ~ 70°C |
UM2600002 | Diodes晶振 | SaRonix-eCera™ UM | 26MHz | ±50ppm | -30°C ~ 85°C |
NX3261E0125.000000 | Diodes晶振 | SaRonix-eCera™ NX | 125MHz | ±50ppm | -40°C ~ 85°C |
FN6660077 | Diodes晶振 | SaRonix-eCera™ FN | 66.666MHz | ±25ppm | -20°C ~ 70°C |
FN6660079 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -20°C ~ 70°C |
FN6660080 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±50ppm | -40°C ~ 85°C |
FN7000003 | Diodes晶振 | SaRonix-eCera™ FN | 70MHz | ±50ppm | -40°C ~ 85°C |
FN7200004 | Diodes晶振 | SaRonix-eCera™ FN | 72MHz | ±50ppm | -20°C ~ 70°C |
FN7400001 | Diodes晶振 | SaRonix-eCera™ FN | 74MHz | ±50ppm | -20°C ~ 70°C |
FN7420006 | Diodes晶振 | SaRonix-eCera™ FN | 74.25MHz | ±50ppm | -20°C ~ 70°C |
FN7500038 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±50ppm | -20°C ~ 70°C |
FN7500039 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±25ppm | -20°C ~ 70°C |
FN7500045 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±50ppm | -40°C ~ 85°C |
FN7500046 | Diodes晶振 | SaRonix-eCera™ FN | 75MHz | ±25ppm | -20°C ~ 70°C |
FN7770021 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -40°C ~ 85°C |
FN7770022 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -40°C ~ 85°C |
FN7770023 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -20°C ~ 70°C |
FN7770024 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -20°C ~ 70°C |
FN7770025 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±50ppm | -20°C ~ 70°C |
PI4ULS3V4857采用小尺寸、20球WLCSP封装,现在可提供3000片.
FN7770026 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -20°C ~ 70°C |
NX5061E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
YNWMAX153 | Diodes晶振 | SaRonix-eCera™ YN | 153.6MHz | ±35ppm | -40°C ~ 85°C |
NX3232E0156.250000 | Diodes晶振 | SaRonix-eCera™ NX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
SXF000005 | Diodes晶振 | SaRonix-eCera™ SX | 150MHz | ±50ppm | -40°C ~ 85°C |
SXF550009 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±50ppm | -40°C ~ 85°C |
SXF620003 | Diodes晶振 | SaRonix-eCera™ SX | 156.25MHz | ±50ppm | -40°C ~ 85°C |
FDC500016 | Diodes晶振 | SaRonix-eCera™ FD | 125MHz | ±20ppm | -20°C ~ 70°C |
FDC500019 | Diodes晶振 | SaRonix-eCera™ FD | 125MHz | ±20ppm | -20°C ~ 70°C |
UM2600001 | Diodes晶振 | SaRonix-eCera™ UM | 26MHz | ±20ppm | -30°C ~ 85°C |
FRSONT077 | Diodes晶振 | SaRonix-eCera™ FR | 77.76MHz | ±50ppm | -40°C ~ 85°C |
SXF550011 | Diodes晶振 | SaRonix-eCera™ SX | 155.52MHz | ±20ppm | -20°C ~ 70°C |
FN6660081 | Diodes晶振 | SaRonix-eCera™ FN | 66.667MHz | ±25ppm | -40°C ~ 85°C |
FN7410004 | Diodes晶振 | SaRonix-eCera™ FN | 74.175MHz | ±25ppm | -40°C ~ 85°C |
FN7420007 | Diodes晶振 | SaRonix-eCera™ FN | 74.25MHz | ±25ppm | -40°C ~ 85°C |
FN7770028 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±25ppm | -40°C ~ 85°C |
FN7770029 | Diodes晶振 | SaRonix-eCera™ FN | 77.76MHz | ±20ppm | -20°C ~ 70°C |
FN8000056 | Diodes晶振 | SaRonix-eCera™ FN | 80MHz | ±50ppm | -40°C ~ 85°C |
FN8000059 | Diodes晶振 | SaRonix-eCera™ FN | 80MHz | ±50ppm | -20°C ~ 70°C |
FN8330020 | Diodes晶振 | SaRonix-eCera™ FN | 83.33MHz | ±50ppm | -40°C ~ 85°C |
FN8500004 | Diodes晶振 | SaRonix-eCera™ FN | 85MHz | ±50ppm | -20°C ~ 70°C |
FN9000013 | Diodes晶振 | SaRonix-eCera™ FN | 90MHz | ±50ppm | -20°C ~ 70°C |

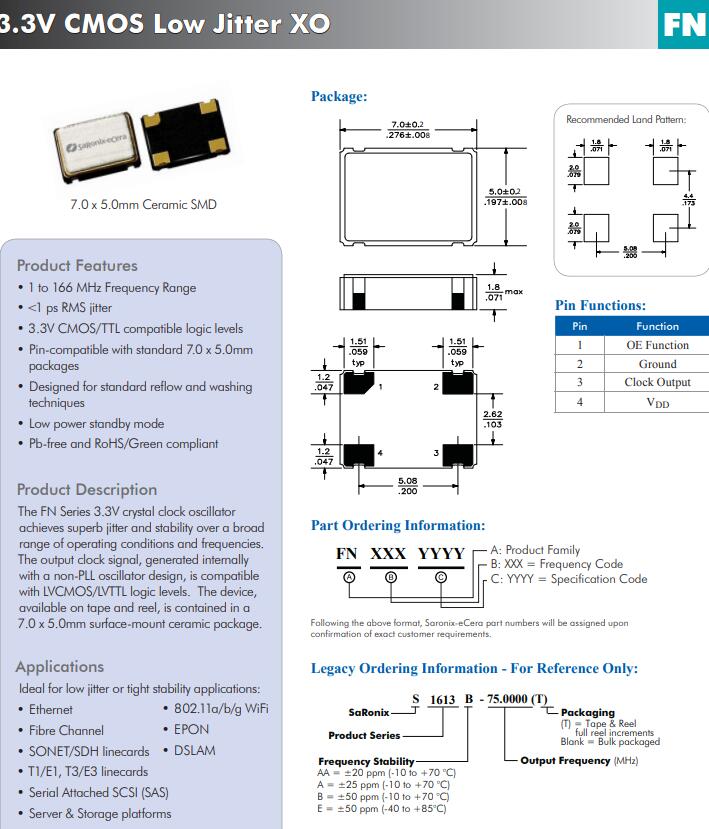

产品特性
1 ~ 166mhz频率范围
<1 ps RMS抖动
<1 ps RMS抖动
3.3V CMOS/TTL兼容逻辑电平
引脚兼容标准7.0 x 5.0mm包
用于标准回流和洗涤技术
低功耗待机模式
无铅和RoHS/绿色环保
产品描述
FN系列3.3V晶体时钟振荡器实现卓越的抖动和稳定的广泛操作条件和频率的范围。内部产生的输出时钟信号与非锁相环振荡器设计,是兼容的LVCMOS/LVTTL逻辑电平。的设备,可在磁带和卷轴上,是包含在一个7.0 x 5.0mm表面贴装陶瓷封装。应用程序
适用于低抖动或紧密稳定的应用:
以太网
光纤通道
SONET / SDH linecards
T1/E1, T3/E3线卡
SAS (Serial Attached SCSI)
服务器和存储平台
