更多>>美国西迪斯LVDS输出代码系列之375LB6C2000T晶振
来源:http://www.kangbidz.com 作者:康比电子 2018年12月05
自改革开放以来,主要以科技发展为主,而科技的快速发展是大家有目共睹的,无论是在工业,科技等方面都取得了巨大的成功,而每一项伟大的科技,智能化等一系列关于电子产品的领域都少不了的电子元器件的鼎力相助,如晶振,二极管,IC,电容,电阻等一系列的电子元器件.晶振作为电子元件的必需品,有着多种分类,在晶振类中差分晶振是行业中具备高的要求高的技术的一款石英晶体振荡器.欧美晶振在行业市场上是具有一定的知名度,美国CTS晶振公司成立于1896年,CTS晶振公司是一个优秀的设计师和制造商,生产的石英晶振在航空航天,通讯,国防,工业,信息技术,医疗和交通运输市场.

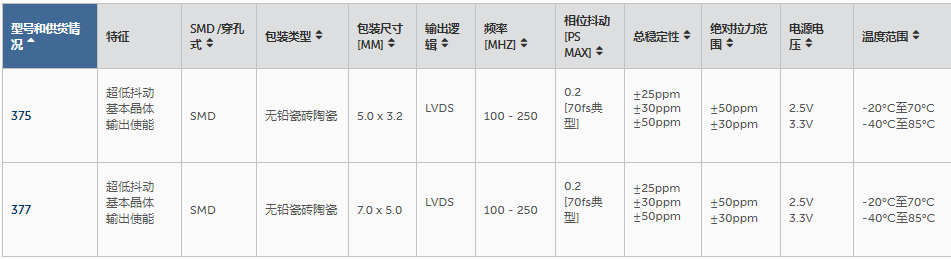

375差分晶振代码表
CTS晶振最高频率电压控振荡器(VCXO)突出了独特的设计技术,使我们的VCXO晶振能够在市场上实现最佳抖动性能,即使频率高于1.0GHz也是如此.该系列差分晶振为LVDS输出晶振,具有0fs典型的相位抖动,频率高达250MHz,绝对拉力范围±50ppm,其工作温度以及储存温度范围远远超过了普通晶振,达到了-45°~+100°的温度范围,适合使用在网络设备等一些具有高的要求的产品上.
375差分晶振LVDS输出代码表
375差分晶振代码表
原厂代码 | 品牌 | 型号 | 频率 | 频率稳定度 | 包装/封装 | 尺寸 |
375LB3C1228T | CTS | 375 | 122.88MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C1228T | CTS | 375 | 122.88MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I1228T | CTS | 375 | 122.88MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I1228T | CTS | 375 | 122.88MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C1000T | CTS | 375 | 100MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C1000T | CTS | 375 | 100MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I1000T | CTS | 375 | 100MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C1000T | CTS | 375 | 100MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I1000T | CTS | 375 | 100MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C1000T | CTS | 375 | 100MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C1000T | CTS | 375 | 100MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C1000T | CTS | 375 | 100MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C1228T | CTS | 375 | 122.88MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C1228T | CTS | 375 | 122.88MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I1000T | CTS | 375 | 100MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I1000T | CTS | 375 | 100MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C1250T | CTS | 375 | 125MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I1228T | CTS | 375 | 122.88MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C1228T | CTS | 375 | 122.88MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C1250T | CTS | 375 | 125MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I1228T | CTS | 375 | 122.88MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C1228T | CTS | 375 | 122.88MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C1250T | CTS | 375 | 125MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C1250T | CTS | 375 | 125MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I1250T | CTS | 375 | 125MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C1250T | CTS | 375 | 125MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I1250T | CTS | 375 | 125MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C1250T | CTS | 375 | 125MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I1250T | CTS | 375 | 125MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I1250T | CTS | 375 | 125MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C1536T | CTS | 375 | 153.6MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C1536T | CTS | 375 | 153.6MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I1536T | CTS | 375 | 153.6MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C1536T | CTS | 375 | 153.6MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I1536T | CTS | 375 | 153.6MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C1536T | CTS | 375 | 153.6MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C1555T | CTS | 375 | 155.52MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C1555T | CTS | 375 | 155.52MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I1555T | CTS | 375 | 155.52MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C1555T | CTS | 375 | 155.52MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I1555T | CTS | 375 | 155.52MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C1555T | CTS | 375 | 155.52MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C1536T | CTS | 375 | 153.6MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C1536T | CTS | 375 | 153.6MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C1562T | CTS | 375 | 156.25MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C1562T | CTS | 375 | 156.25MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I1536T | CTS | 375 | 153.6MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I1536T | CTS | 375 | 153.6MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I1562T | CTS | 375 | 156.25MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C1562T | CTS | 375 | 156.25MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I1562T | CTS | 375 | 156.25MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C1562T | CTS | 375 | 156.25MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C1555T | CTS | 375 | 155.52MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C1562T | CTS | 375 | 156.25MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C1555T | CTS | 375 | 155.52MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C1562T | CTS | 375 | 156.25MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I1555T | CTS | 375 | 155.52MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I1562T | CTS | 375 | 156.25MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I1555T | CTS | 375 | 155.52MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I1562T | CTS | 375 | 156.25MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C1660T | CTS | 375 | 166MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C1660T | CTS | 375 | 166MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I1660T | CTS | 375 | 166MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C1660T | CTS | 375 | 166MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I1660T | CTS | 375 | 166MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C1660T | CTS | 375 | 166MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C1660T | CTS | 375 | 166MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C1660T | CTS | 375 | 166MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I1660T | CTS | 375 | 166MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I1660T | CTS | 375 | 166MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C2000T | CTS | 375 | 200MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C2000T | CTS | 375 | 200MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C2048T | CTS | 375 | 204.8MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C2048T | CTS | 375 | 204.8MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I2000T | CTS | 375 | 200MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I2000T | CTS | 375 | 200MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I2048T | CTS | 375 | 204.8MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I2048T | CTS | 375 | 204.8MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C2000T | CTS | 375 | 200MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C2000T | CTS | 375 | 200MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I2000T | CTS | 375 | 200MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C2000T | CTS | 375 | 200MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I2000T | CTS | 375 | 200MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C2000T | CTS | 375 | 200MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C2048T | CTS | 375 | 204.8MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C2048T | CTS | 375 | 204.8MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I2048T | CTS | 375 | 204.8MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C2048T | CTS | 375 | 204.8MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I2048T | CTS | 375 | 204.8MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C2048T | CTS | 375 | 204.8MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3C2457T | CTS | 375 | 245.76MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB3I2457T | CTS | 375 | 245.76MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5C2457T | CTS | 375 | 245.76MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB5I2457T | CTS | 375 | 245.76MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375LB6C2457T | CTS | 375 | 245.76MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3C2457T | CTS | 375 | 245.76MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB3I2457T | CTS | 375 | 245.76MHz | ±50ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5C2457T | CTS | 375 | 245.76MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB5I2457T | CTS | 375 | 245.76MHz | ±25ppm | 6-SMD | (5.00mm x 3.20mm) |
375NB6C2457T | CTS | 375 | 245.76MHz | ±20ppm | 6-SMD | (5.00mm x 3.20mm) |
375差分晶振LVDS输出代码表
CTS晶振公司在北美,亚洲和欧洲拥有12个生产基地,致力于为各地的工业伙伴提供的技术,CTS晶振公司的目标是在技术的前沿,为各地的产品和服务的创造和提升提供创新的石英晶振,石英晶体振荡器,32.768K等解决方案.康比电子晶振厂家将以此为效仿目标,为市场提供更多优质的晶振频率元件.
