首页进口晶振 SKYWORKS晶振Skyworks晶体振荡器,535BC312M500DGR,Si535光纤通道晶振

Skyworks晶体振荡器,535BC312M500DGR,Si535光纤通道晶振

产品型号：1417358
频率：312.5 MHz
尺寸：7.0x5.0mm
产品介绍：Skyworks晶体振荡器,535BC312M500DGR,Si535光纤通道晶振，美国进口晶振，Skyworks思佳讯晶振，型号：Si535，编码为：535BC312M500DGR，频率为：312.500MHz，小体积...

Skyworks晶体振荡器,535BC312M500DGR,Si535光纤通道晶振，美国进口晶振，Skyworks思佳讯晶振，型号：Si535，编码为：535BC312M500DGR，频率为：312.500MHz，小体积晶振尺寸：7.0x5.0mm封装，六脚贴片晶振，LVDS输出差分晶振，石英晶振，有源晶振，差分晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，高精度，高性能，高品质等特点。应用于：蓝牙晶振，10/40/100G数据中心，10G以太网，交换机/路由器，光纤通道/SAS/存储，企业服务器，网络，电信，光模块，无线网络等应用。
Si535 XO利用天空解决方案的先进DSPLL®电路提供一个高速差分频率的超低抖动时钟。与传统的XO不同，每个输出频率都需要一个不同的晶体，而Si535石英晶振使用一个固定的晶体来提供一个大范围的输出频率。这种基于集成电路的方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外，DSPLL时钟合成提供了优越的电源噪声抑制，简化了在通信系统中通常发现的噪声环境中产生低抖动时钟的任务。基于Si535 IC的XO在装运时被工厂编程，从而消除了与自定义振荡器相关的长时间的前置时间。

Skyworks晶体振荡器,535BC312M500DGR,Si535光纤通道晶振,参数表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency1

LVPECL/LVDS

312.5

MHz

Initial Accuracy

Measured at +25 °C at time of
shipping

—

±1.5

—

ppm

Temperature Stability1,2

–7
–20

—
—

+7
+20

ppm

Aging

Frequency drift over first year

±3

ppm

Frequency drift over 20 year
life

—

±10

ppm

Total Stability2

Temp stability = ±20 ppm

—

±31.5

ppm

Temp stability = ±7 ppm

—

Powerup Time3

tOSC

TA = –40°C — +85°C

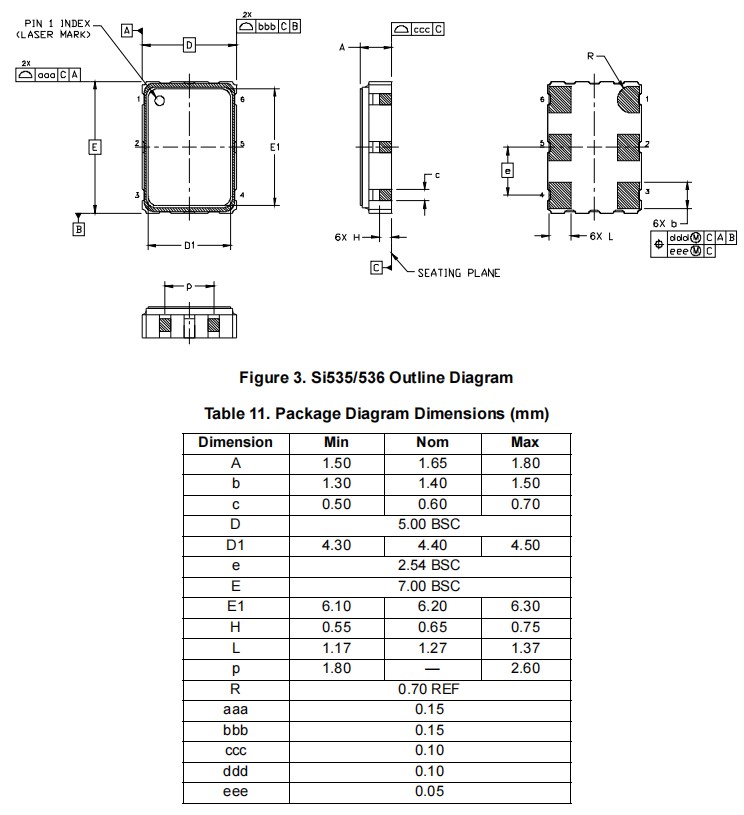

Skyworks晶体振荡器,535BC312M500DGR,Si535光纤通道晶振,尺寸图

Skyworks晶体振荡器,535BC312M500DGR,Si535光纤通道晶振

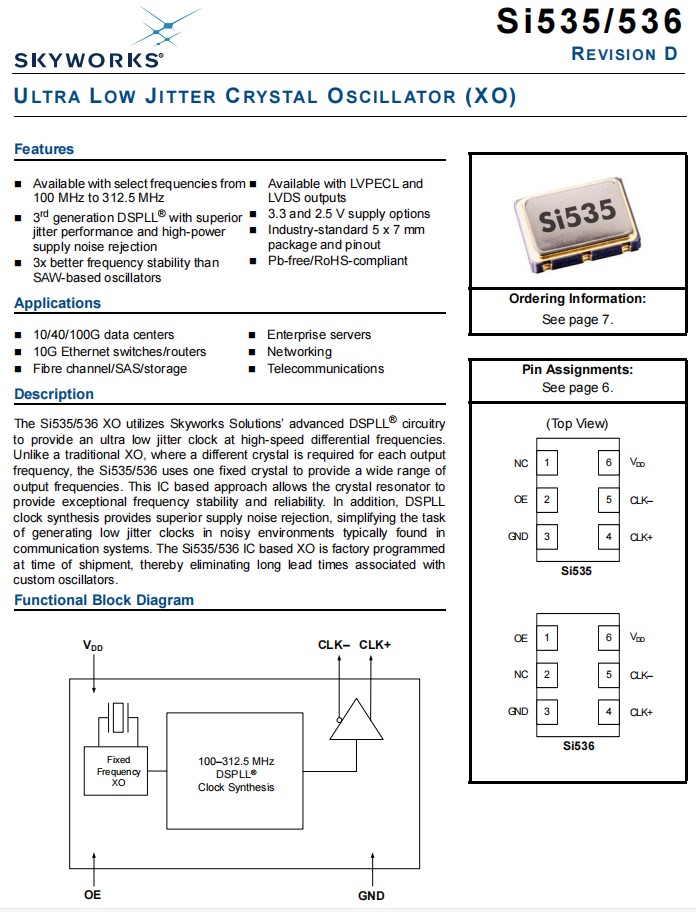

产品特点：

可选频率从100 MHz到312.5 MHz
具有卓越抖动性能和高功率电源噪声抑制的第三代DSPLL®
频率稳定性是SAW振荡器的3倍
可提供LVPECL和LVDS输出贴片晶振
3.3V和2.5V电源选项
行业标准5 x 7 mm封装和引脚
无铅/符合RoHS

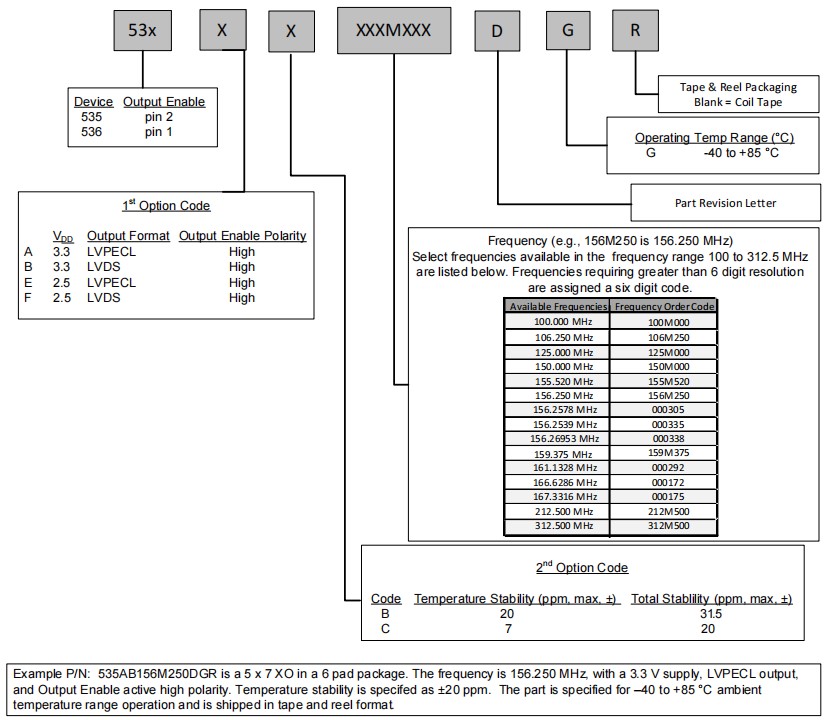

Si535/536 XO支持多种选项，包括频率、温度稳定性、输出格式和VDD。Si535和Si536 XO系列采用工业标准，RoHS兼容，6垫，5 x 7 mm封装。Si536系列支持一个用于LVPECL和LVDS输出格式的替代OE针脚（针脚#1）

石英晶体振荡器	品牌	系列	频率	输出	电压
535AC100M000DG	Skyworks晶振	Si535	100 MHz	LVPECL	3.3V
535AB125M000DGR	Skyworks晶振	Si535	125 MHz	LVPECL	3.3V
535FB125M000DG	Skyworks晶振	Si535	125 MHz	LVDS	2.5V
535FB156M250DG	Skyworks晶振	Si535	156.25 MHz	LVDS	2.5V
535AC106M250DG	Skyworks晶振	Si535	106.25 MHz	LVPECL	3.3V
535BB156M250DG	Skyworks晶振	Si535	156.25 MHz	LVDS	3.3V
535AC156M250DG	Skyworks晶振	Si535	156.25 MHz	LVPECL	3.3V
535BC159M375DGR	Skyworks晶振	Si535	159.375 MHz	LVDS	3.3V
535BC312M500DGR	Skyworks晶振	Si535	312.5 MHz	LVDS	3.3V
535FB000172DGR	Skyworks晶振	Si535	166.6286 MHz	LVDS	2.5V
535FB000175DGR	Skyworks晶振	Si535	167.3316 MHz	LVDS	2.5V
535FB000292DGR	Skyworks晶振	Si535	161.1328 MHz	LVDS	2.5V
535FB000305DGR	Skyworks晶振	Si535	156.2578 MHz	LVDS	2.5V
535FB106M250DGR	Skyworks晶振	Si535	106.25 MHz	LVDS	2.5V
535FB150M000DGR	Skyworks晶振	Si535	150 MHz	LVDS	2.5V
535FB155M520DGR	Skyworks晶振	Si535	155.52 MHz	LVDS	2.5V
535FB159M375DGR	Skyworks晶振	Si535	159.375 MHz	LVDS	2.5V
535FB212M500DGR	Skyworks晶振	Si535	212.5 MHz	LVDS	2.5V
535FB312M500DGR	Skyworks晶振	Si535	312.5 MHz	LVDS	2.5V
535FC000172DGR	Skyworks晶振	Si535	166.6286 MHz	LVDS	2.5V
535FC000175DGR	Skyworks晶振	Si535	167.3316 MHz	LVDS	2.5V
535FC000305DGR	Skyworks晶振	Si535	156.2578 MHz	LVDS	2.5V
535FC106M250DGR	Skyworks晶振	Si535	106.25 MHz	LVDS	2.5V
535FC150M000DGR	Skyworks晶振	Si535	150 MHz	LVDS	2.5V
535FC155M520DGR	Skyworks晶振	Si535	155.52 MHz	LVDS	2.5V
535FC156M250DGR	Skyworks晶振	Si535	156.25 MHz	LVDS	2.5V
535FC159M375DGR	Skyworks晶振	Si535	159.375 MHz	LVDS	2.5V
535FC212M500DGR	Skyworks晶振	Si535	212.5 MHz	LVDS	2.5V
535FC312M500DGR	进口晶振	Si535	312.5 MHz	LVDS	2.5V
535BB000172DGR	Skyworks晶振	Si535	166.6286 MHz	LVDS	3.3V
535BB000175DGR	Skyworks晶振	Si535	167.3316 MHz	LVDS	3.3V
535BB000292DGR	Skyworks晶振	Si535	161.1328 MHz	LVDS	3.3V
535BB000305DGR	Skyworks晶振	Si535	156.2578 MHz	LVDS	3.3V
535BB000335DGR	Skyworks晶振	Si535	156.2539 MHz	LVDS	3.3V
535BB106M250DGR	Skyworks晶振	Si535	106.25 MHz	LVDS	3.3V
535BB150M000DGR	Skyworks晶振	Si535	150 MHz	LVDS	3.3V
535BB155M520DGR	Skyworks晶振	Si535	155.52 MHz	LVDS	3.3V
535BB159M375DGR	Skyworks晶振	Si535	159.375 MHz	LVDS	3.3V
535BB212M500DGR	Skyworks晶振	Si535	212.5 MHz	LVDS	3.3V
535BC000172DGR	Skyworks晶振	Si535	166.6286 MHz	LVDS	3.3V
535BC000175DGR	Skyworks晶振	Si535	167.3316 MHz	LVDS	3.3V
535BC000292DGR	Skyworks晶振	Si535	161.1328 MHz	LVDS	3.3V
535BC000305DGR	Skyworks晶振	Si535	156.2578 MHz	LVDS	3.3V
535BC150M000DGR	Skyworks晶振	Si535	150 MHz	LVDS	3.3V
535BC155M520DGR	Skyworks晶振	Si535	155.52 MHz	LVDS	3.3V
535BB000172DG	Skyworks晶振	Si535	166.6286 MHz	LVDS	3.3V
535BB000175DG	Skyworks晶振	Si535	167.3316 MHz	LVDS	3.3V
535BB000292DG	Skyworks晶振	Si535	161.1328 MHz	LVDS	3.3V
535BB000305DG	Skyworks晶振	Si535	156.2578 MHz	LVDS	3.3V
535BB000335DG	Skyworks晶振	Si535	156.2539 MHz	LVDS	3.3V
535BB106M250DG	Skyworks晶振	Si535	106.25 MHz	LVDS	3.3V
535BB150M000DG	Skyworks晶振	Si535	150 MHz	LVDS	3.3V
535BB155M520DG	Skyworks晶振	Si535	155.52 MHz	LVDS	3.3V
535BB159M375DG	Skyworks晶振	Si535	159.375 MHz	LVDS	3.3V
535BB212M500DG	Skyworks晶振	Si535	212.5 MHz	LVDS	3.3V
535BC000172DG	Skyworks晶振	Si535	166.6286 MHz	LVDS	3.3V
535BC000175DG	Skyworks晶振	Si535	167.3316 MHz	LVDS	3.3V
535BC000292DG	Skyworks晶振	Si535	161.1328 MHz	LVDS	3.3V
535BC000305DG	Skyworks晶振	Si535	156.2578 MHz	LVDS	3.3V
535BC150M000DG	Skyworks晶振	Si535	150 MHz	LVDS	3.3V
535BC155M520DG	Skyworks晶振	Si535	155.52 MHz	LVDS	3.3V
535BC159M375DG	Skyworks晶振	Si535	159.375 MHz	LVDS	3.3V
535BC312M500DG	Skyworks晶振	Si535	312.5 MHz	LVDS	3.3V
535FB000172DG	Skyworks晶振	Si535	166.6286 MHz	LVDS	2.5V
535FB000175DG	Skyworks晶振	Si535	167.3316 MHz	LVDS	2.5V
535FB000292DG	Skyworks晶振	Si535	161.1328 MHz	LVDS	2.5V
535FB000305DG	Skyworks晶振	Si535	156.2578 MHz	LVDS	2.5V
535FB106M250DG	Skyworks晶振	Si535	106.25 MHz	LVDS	2.5V
535FB150M000DG	Skyworks晶振	Si535	150 MHz	LVDS	2.5V
535FB155M520DG	Skyworks晶振	Si535	155.52 MHz	LVDS	2.5V
535FB159M375DG	Skyworks晶振	Si535	159.375 MHz	LVDS	2.5V
535FB212M500DG	Skyworks晶振	Si535	212.5 MHz	LVDS	2.5V
535FB312M500DG	Skyworks晶振	Si535	312.5 MHz	LVDS	2.5V
535FC000172DG	Skyworks晶振	Si535	166.6286 MHz	LVDS	2.5V
535FC000175DG	Skyworks晶振	Si535	167.3316 MHz	LVDS	2.5V
535FC000305DG	Skyworks晶振	Si535	156.2578 MHz	LVDS	2.5V
535FC106M250DG	Skyworks晶振	Si535	106.25 MHz	LVDS	2.5V
535FC150M000DG	Skyworks晶振	Si535	150 MHz	LVDS	2.5V
535FC155M520DG	Skyworks晶振	Si535	155.52 MHz	LVDS	2.5V
535FC156M250DG	Skyworks晶振	Si535	156.25 MHz	LVDS	2.5V
535FC159M375DG	Skyworks晶振	Si535	159.375 MHz	LVDS	2.5V
535FC212M500DG	Skyworks晶振	Si535	212.5 MHz	LVDS	2.5V
535FC312M500DG	Skyworks晶振	Si535	312.5 MHz	LVDS	2.5V
535AB000335DGR	Skyworks晶振	Si535	156.2539 MHz	LVPECL	3.3V
535AB100M000DGR	Skyworks晶振	Si535	100 MHz	LVPECL	3.3V
535AB156M250DGR	Skyworks晶振	Si535	156.25 MHz	LVPECL	3.3V
535BB100M000DGR	Skyworks晶振	Si535	100 MHz	LVDS	3.3V
535BB125M000DGR	Skyworks晶振	Si535	125 MHz	LVDS	3.3V
535BB156M250DGR	Skyworks晶振	Si535	156.25 MHz	LVDS	3.3V
535EB100M000DGR	Skyworks晶振	Si535	156.2539 MHz	LVPECL	2.5V
535EB125M000DGR	Skyworks晶振	Si535	125 MHz	LVPECL	2.5V
535EB156M250DGR	Skyworks晶振	Si535	156.25 MHz	LVPECL	2.5V
535FB100M000DGR	Skyworks晶振	Si535	156.2539 MHz	LVDS	2.5V
535FB125M000DGR	Skyworks晶振	Si535	125 MHz	LVDS	2.5V
535FB156M250DGR	Skyworks晶振	Si535	156.25 MHz	LVDS	2.5V
535AB000335DG	Skyworks晶振	Si535	156.2539 MHz	LVPECL	3.3V
535AB100M000DG	Skyworks晶振	Si535	100 MHz	LVPECL	3.3V
535BB100M000DG	Skyworks晶振	Si535	100 MHz	LVDS	3.3V
535EB100M000DG	Skyworks晶振	Si535	156.2539 MHz	LVPECL	2.5V
535FB100M000DG	Skyworks晶振	Si535	156.2539 MHz	LVDS	2.5V
535AB000172DG	Skyworks晶振	Si535	166.6286 MHz	LVPECL	3.3V
535AB000175DG	Skyworks晶振	Si535	167.3316 MHz	LVPECL	3.3V
535AB000292DG	Skyworks晶振	Si535	161.1328 MHz	LVPECL	3.3V
535AB000305DG	Skyworks晶振	Si535	156.2578 MHz	LVPECL	3.3V
535AB106M250DG	Skyworks晶振	Si535	106.25 MHz	LVPECL	3.3V
535AB150M000DG	Skyworks晶振	Si535	150 MHz	LVPECL	3.3V
535AB155M520DG	Skyworks晶振	Si535	155.52 MHz	LVPECL	3.3V
535AB159M375DG	Skyworks晶振	Si535	159.375 MHz	LVPECL	3.3V
535AB212M500DG	Skyworks晶振	Si535	212.5 MHz	LVPECL	3.3V
535AC000172DG	Skyworks晶振	Si535	166.6286 MHz	LVPECL	3.3V
535AC000305DG	Skyworks晶振	Si535	156.2578 MHz	LVPECL	3.3V
535AC150M000DG	Skyworks晶振	Si535	150 MHz	LVPECL	3.3V
