- 产品型号：30087558
- 频率：64.000MHz
- 尺寸：7.0x5.0mm
- 产品介绍：安碁7050mm贴片晶振,C7S-64.000-18-3050-3-R,蓝牙模块晶振，安碁晶振，AKER晶振，型号：C7S系列，编码为：C7S-64.000-18-3050-3-R，频率为：64.000MHz，小体积晶振...
-
安碁7050mm贴片晶振,C7S-64.000-18-3050-3-R,蓝牙模块晶振
.jpg)
.jpg)
安碁7050mm贴片晶振,C7S-64.000-18-3050-3-R,蓝牙模块晶振，安碁晶振，AKER晶振，型号：C7S系列，编码为：C7S-64.000-18-3050-3-R，频率为：64.000MHz，小体积晶振尺寸：7.0x5.0mm封装，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，无铅晶振，SMD晶振，微处理器晶体。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：通讯设备，无线网络，蓝牙模块，物联网，平板电脑，汽车电子，医疗设备，数码电子，游戏机设备，智能家居等应用。
.jpg)

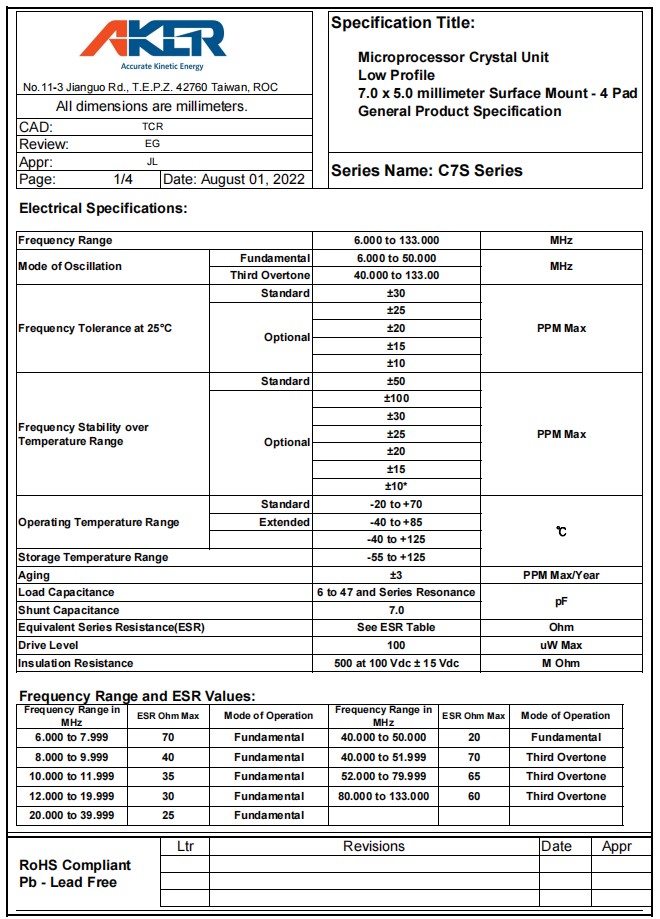

安碁7050mm贴片晶振,C7S-64.000-18-3050-3-R,蓝牙模块晶振,参数表
| Frequency Range | 64.000 | MHz | |||||||||||||||
| Mode of Oscillation | Fundamental | 6.000 to 50.000 | MHz | ||||||||||||||
| Third Overtone | 40.000 to 133.00 | ||||||||||||||||
| Frequency Tolerance at 25°C | Standard | ±30 | PPM Max | ||||||||||||||
| Optional | ±25 | ||||||||||||||||
| ±20 | |||||||||||||||||
| ±15 | |||||||||||||||||
| ±10 | |||||||||||||||||
|
Frequency Stability over Temperature Range |
Standard | ±50 | PPM Max | ||||||||||||||
| Optional | ±100 | ||||||||||||||||
| ±30 | |||||||||||||||||
| ±25 | |||||||||||||||||
| ±20 | |||||||||||||||||
| ±15 | |||||||||||||||||
| ±10* | |||||||||||||||||
| Operating Temperature Range | Standard | -20 to +70 | ℃ | ||||||||||||||
| Extended | -40 to +85 | ||||||||||||||||
| -40 to +125 | |||||||||||||||||
| Storage Temperature Range | -55 to +125 | ||||||||||||||||
| Aging | ±3 | PPM Max/Year | |||||||||||||||
| Load Capacitance | 6 to 47 and Series Resonance | pF | |||||||||||||||
| Shunt Capacitance | 7.0 | ||||||||||||||||
| Equivalent Series Resistance(ESR) | See ESR Table | Ohm | |||||||||||||||
| Drive Level | 100 | uW Max | |||||||||||||||
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | |||||||||||||||
.jpg)

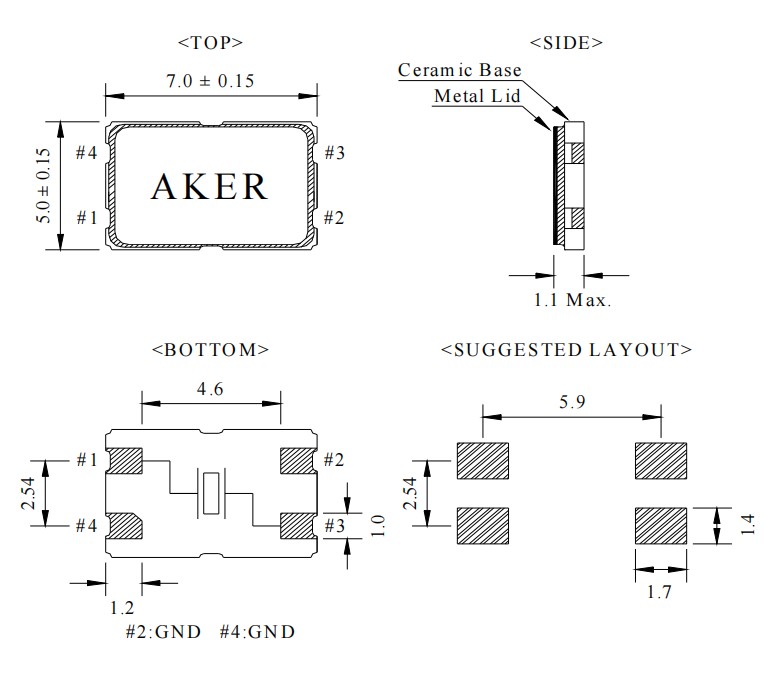

安碁7050mm贴片晶振,C7S-64.000-18-3050-3-R,蓝牙模块晶振,尺寸图
安碁7050mm贴片晶振,C7S-64.000-18-3050-3-R,蓝牙模块晶振
产品特点：
外形尺寸：7.0x5.0mm 四垫脚贴片晶振
频率范围：6~133MHz石英晶体谐振器
微处理器晶体单元
低调
通用产品规范
| 产品编码 | 进口晶振 | 描述 | 系列 | 频率 |
| C2E-24.000-10-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C2E | 24 MHz |
| C2E-16.000-12-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C2E | 16 MHz |
| C2E-25.000-10-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C2E | 25 MHz |
| C2E-16.000-8-1530-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C2E | 16 MHz |
| C1E-32.000-10-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C1E | 32 MHz |
| C1E-25.000-20-2030-R | Aker安碁 | CRYSTAL 25.0000MHZ 20PF SMD | C1E | 25 MHz |
| C1E-24.000-10-1015-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz |
| C1E-24.000-10-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz |
| C1E-32.000-8-1515-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C1E | 32 MHz |
| C5S-26.000-16-1010-R | Aker安碁 | CRYSTAL 26.0000MHZ 16PF SMD | C5S | 26 MHz |
| C5S-8.000-18-3030-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C5S | 8 MHz |
| C2E-12.000-18-1020-R | Aker安碁 | CRYSTAL12MHZ 18PF SMD | C2E | 12 MHz |
| C2E-12.000-18-1020-X-R | Aker安碁 | CRYSTAL12MHZ 18PF SMD | C2E | 12 MHz |
| C5S-12.000-18-1020-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C5S | 12 MHz |
| C2E-12.000-8-2050-X1-R | Aker安碁 | CRYSTAL 12MHZ 8PF SMD AEC-Q200 | C2E X1 | 12 MHz |
| C7S-12.000-12-3030-X-R | Aker安碁 | CRYSTAL 12MHZ 12PF SMD | C7S | 12 MHz |
| C7S-8.000-18-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C7S | 8 MHz |
| C7S-8.000-18-1030-X-R | Aker安碁 | CRYSTAL 8MHZ 18PF SMD | C7S | 8 MHz |
| C1E-76.800-10-1012-X-M | Aker安碁 | CRYSTAL 76.8MHZ 10PF SMD | C1E | 76.8 MHz |
| C1E-80.000-10-1015-X-M | Aker安碁 | CRYSTAL 80MHZ 10PF SMD | C1E | 80 MHz |
| C1E-76.800-8-1012-X-M | Aker安碁 | CRYSTAL 76.8MHZ 8PF SMD | C1E | 46.8 MHz |
| C1E-80.000-8-1015-X-M | Aker安碁 | CRYSTAL 80MHZ8PF SMD | C1E | 80 MHz |
| C2E-12.000-10-2050-X1-R | Aker安碁 | CRYSTAL 12MHZ 10PF SMD AEC-Q200 | C2E X1 | 12 MHz |
| C1E-96.000-8-1216-X2-R | Aker安碁 | CRYSTAL 96MHZ 8PF SMD | C1E X2 | 96 MHz |
| C2E-16.000-10-1010-R | Aker安碁 | CRYSTAL 16.0000MHZ 10PF SMD | C2E | 16 MHz |
| C1E-24.000-10-1015-M | 石英晶振 | CRYSTAL 24.0000MHZ 10PF SMD | C1E | 24 MHz |
| C2E-25.000-10-3030-X-M | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C2E | 25 MHz |
| C2E-48.000-10-1020-X-R | Aker安碁 | CRYSTAL 48MHZ SMD FOR WIFI | C2E | 48 MHz |
| C1E-96.000-9.9-1216-X2-R | Aker安碁 | CRYSTAL 96MHZ 9.9PF SMD | C1E | 96 MHz |
| C1E-52.000-8-1012-X-M | Aker安碁 | CRYSTAL 52MHZ 10PF SMD | C1E | 52 MHz |
| C1E-52.000-10-1012-X-M | Aker安碁 | CRYSTAL 52MHZ 8PF SMD | C1E | 52 MHz |
| C5S-24.000-20-3030-X-R | Aker安碁 | CRYSTAL 24MHZ 20PF SMD | C5S | 24 MHz |
| C5S-12.000-16-5050-X-R | Aker安碁 | CRYSTAL 12MHZ 16PF SMD | C5S | 12 MHz |
| C5S-20.000-20-3050-X-R | Aker安碁 | CRYSTAL 20MHZ 20PF SMD | C5S | 20 MHz |
| C5S-12.000-16-3030-X-R | Aker安碁 | CRYSTAL 12.0000MHZ 16PF SMD | C5S | 12 MHz |
| C5S-8.000-12-2020-X-R | Aker安碁 | CRYSTAL 8MHZ 12PF SMD | C5S | 8 MHz |
| C6S-16.000-12-5050-X-R | Aker安碁 | CRYSTAL 16MHZ 12PF SMD | C6S | 16 MHz |
| C2E-20.000-10-2050-X1-R | Aker安碁 | CRYSTAL 20MHZ 10PF SMD AEC-Q200 | C2E X1 | 20 MHz |
| C5S-8.000-18-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C5S | 8 MHz |
| C5S-8.000-16-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 16PF SMD | C5S | 8 MHz |
| C1E-32.000-8-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C1E | 32 MHz |
| C1E-40.000-8-1030-A-X2-R | Aker安碁 | UWB CRYSTAL, 2016, 40.000MHZ, 8P | C1E Auto | 40 MHz |
| C1E-40.000-8-1550-X1-R | Aker安碁 | UWB CRYSTAL, 2016, 40.0000MHZ, 8 | C1E | 40 MHz |
| C1E-16.000-10-1520-X-R | Aker安碁 | UWB CRYSTAL, 2016, 16.000MHZ, 10 | C1E | 16 MHz |
| C1E-55.200-8-1035-A-X2-R | Aker安碁 | UWB CRYSTAL, 2016, 55.200MHZ, 8P | C1E Auto | 55.2 MHz |
| C1E-48.000-8-1020-X2-M | Aker安碁 | CRYSTAL 48MHZ 8PF SMD | C1E | 48 MHz |
| C1E-48.000-10-1020-X2-M | Aker安碁 | CRYSTAL 48MHZ 10PF | C1E | 48 MHz |
| C1E-40.000-8-1050-A-X1-R | Aker安碁 | CRYSTAL, 1612, 40.000MHZ, 8PF, S | C1E Auto | 40 MHz |
| C1E-32.000-8-1550-A-X1-R | Aker安碁 | CRYSTAL, 1612, 32.000MHZ, 8PF, S | C1E Auto | 32 MHz |
| C1E-24.000-8-1050-A-X1-R | Aker安碁 | CRYSTAL, 1612, 24.000MHZ, 8PF, S | C1E Auto | 24 MHz |
| C1E-25.000-12-1050-A-X1-R | Aker安碁 | CRYSTAL, 1612, 25.000MHZ, 12PF, | C1E Auto | 25 MHz |
| C1E-16.000-12-20100-A-X1-R | Aker安碁 | CRYSTAL, 2016, 16.000MHZ, 12PF, | C1E Auto | 16 MHz |
| C5S-24.000-18-20100-A-X1-R | Aker安碁 | CRYSTAL, 5032 ,24.000MHZ, 18PF, | C5S Auto | - |
| C2E-19.200-13-2030-X-R | Aker安碁 | CRYSTAL 19.2MHz 13PF SMD | C2E | 19.2 MHz |
