首页台产晶振 AKER晶振Aker安碁晶振,C4S-18.000-20-3050-R,通讯设备晶振

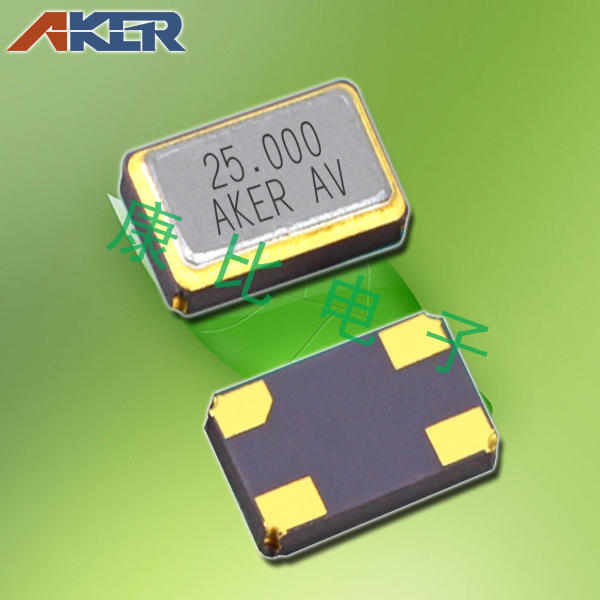

Aker安碁晶振,C4S-18.000-20-3050-R,通讯设备晶振

产品型号：81874274
频率：18.000MHz
尺寸：4.0x2.5mm
产品介绍：Aker安碁晶振,C4S-18.000-20-3050-R,通讯设备晶振，AKER安碁晶振，型号：C4S系列，编码为：C4S-18.000-20-3050-R，频率为：18.0000MHz，石英晶振，小体积晶振尺寸...

Aker安碁晶振,C4S-18.000-20-3050-R,通讯设备晶振，AKER安碁晶振，型号：C4S系列，编码为：C4S-18.000-20-3050-R，频率为：18.0000MHz，石英晶振，小体积晶振尺寸：4.0x2.5mm封装，表面安装-4垫通用产品规格，四脚贴片晶振，无源晶振，石英晶体谐振器，石英贴片晶振，SMD石英晶体，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：微处理器晶体单元，通讯设备，无线网络，蓝牙模块，智能手机，平板电脑，车载电子，医疗设备，数码电子等应用。

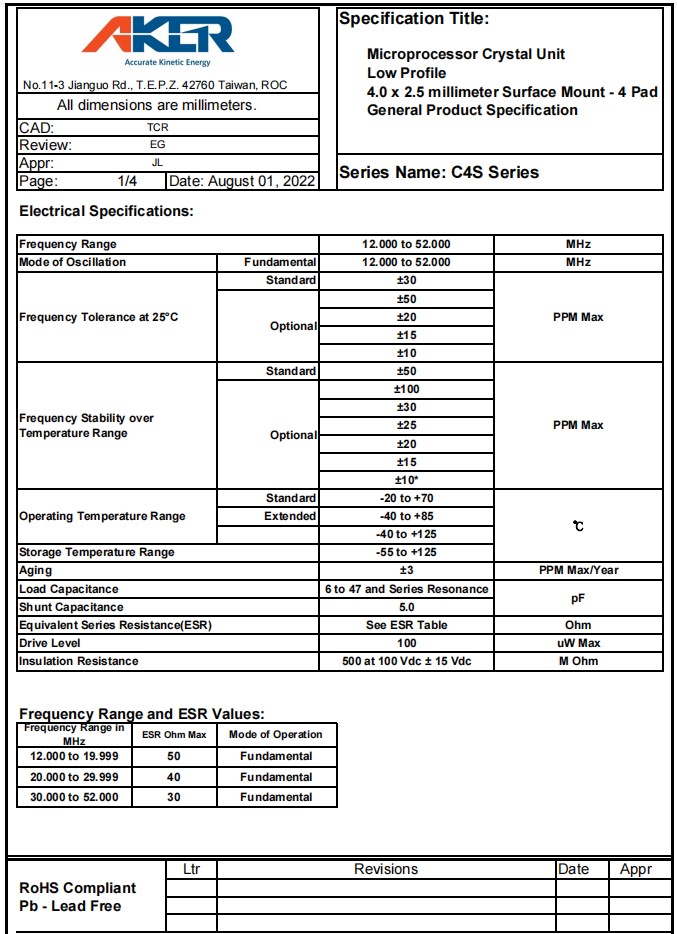

Aker安碁晶振,C4S-18.000-20-3050-R,通讯设备晶振,参数表

Frequency Range			MHz
Mode of Oscillation	Fundamental	18.000MHz	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max
	Optional	±100
		±30
		±25
		±20
		±15
		±10*
Operating Temperature Range	Standard	-20 to +70	℃
	Extended	-40 to +85
		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		6 to 47 and Series Resonance	pF
Shunt Capacitance		5.0
Equivalent Series Resistance(ESR)		See ESR Table	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc ± 15 Vdc	M Ohm

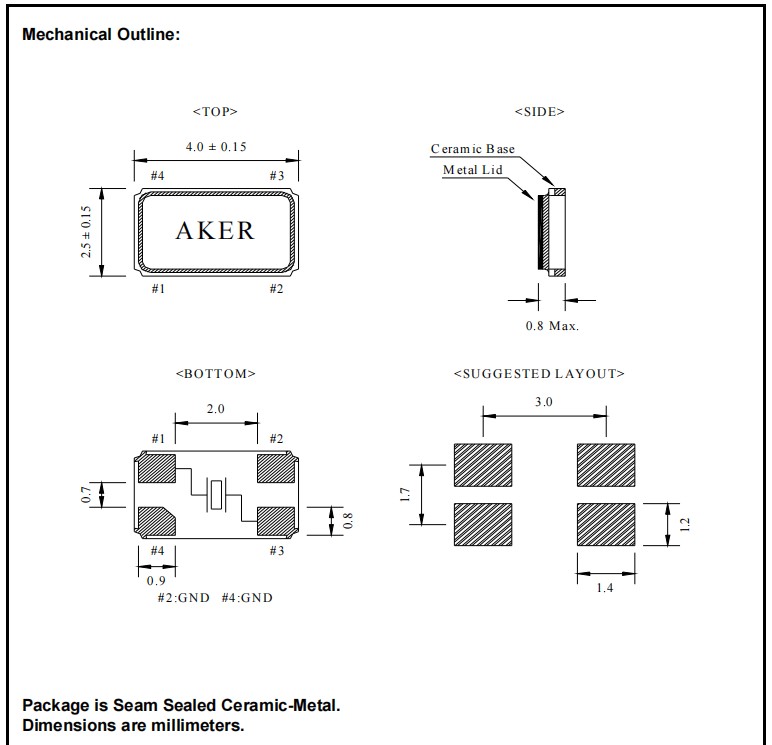

Aker安碁晶振,C4S-18.000-20-3050-R,通讯设备晶振,尺寸图

产品编码	进口晶振	描述	系列	频率
C3E-16.000-18-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 18PF SMD	C3E	16 MHz
C3E-20.000-12-3030-X-R	Aker安碁	CRYSTAL 20.0000MHZ 12PF SMD	C3E	20 MHz
C3E-16.000-12-3030-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-25.000-18-3030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-18-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-18-2030-R	Aker安碁	CRYSTAL 25.0000MHZ 18PF SMD	C3E	25 MHz
C3E-12.000-8-3030-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-25.000-8-1010-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-25.000-8-1520-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-16.000-12-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-32.000-10-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-12.000-8-1520-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-32.000-12-1010-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-25.000-8-1015-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-12.000-18-3030-X-R	Aker安碁	CRYSTAL 12.0000MHZ 18PF SMD	C3E	12 MHz
C3E-25.000-12-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 12PF SMD	C3E	25 MHz
C3E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C3E	25 MHz
C3E-24.000-8-1015-R	Aker安碁	CRYSTAL 24.0000MHZ 8PF SMD	C3E	24 MHz
C3E-24.000-10-1010-R	石英晶振	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-32.000-12-1530-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C3E-12.000-8-1010-R	Aker安碁	CRYSTAL 12.0000MHZ 8PF SMD	C3E	12 MHz
C3E-16.000-8-1015-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz
C3E-32.000-10-1015-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-24.000-12-1530-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-12-3030-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-18-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 18PF SMD	C3E	24 MHz
C3E-20.000-10-1530-X-R	Aker安碁	CRYSTAL 20.0000MHZ 10PF SMD	C3E	20 MHz
C3E-25.000-8-1530-X-R	Aker安碁	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz
C3E-24.000-12-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 12PF SMD	C3E	24 MHz
C3E-24.000-10-1015-X-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C3E	24 MHz
C3E-16.000-12-1015-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz
C3E-40.000-10-1015-X-R	Aker安碁	CRYSTAL 40.0000MHZ 10PF SMD	C3E	40 MHz
C3E-32.000-8-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C3E	32 MHz
C3E-32.000-10-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C3E	32 MHz
C3E-32.000-12-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 12PF SMD	C3E	32 MHz
C2E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C2E	24 MHz
C2E-16.000-12-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C2E	16 MHz
C2E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz
C2E-16.000-8-1530-X-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C2E	16 MHz
