- 产品型号：63893455
- 频率：50MHz
- 尺寸：7.0x5.0mm
- 产品介绍：物联网6G晶振,4HF050000Z3BACTGI8,IDT低抖动Osc振荡器,4HF050000Z4AACXGI8,7050mm贴片晶振，美国进口晶振，IDT艾迪悌晶振，4HF系列晶振，编码为：4HF050000Z3BACT...
-
物联网6G晶振,4HF050000Z3BACTGI8,IDT低抖动Osc振荡器
.jpg)
.jpg)

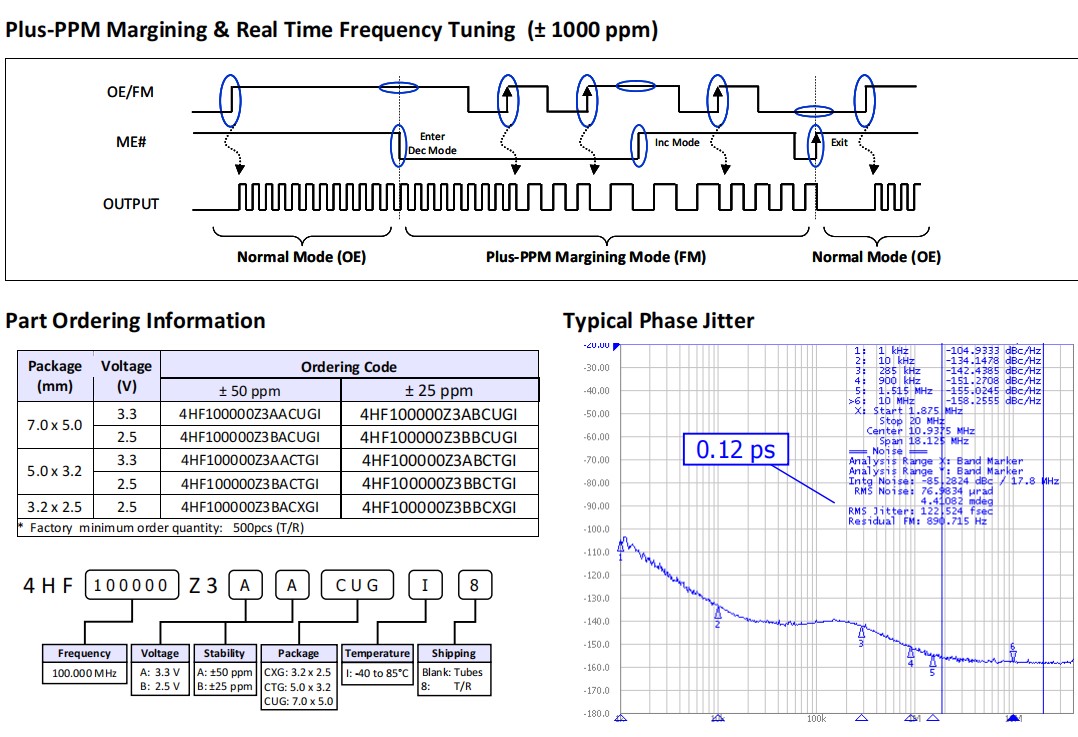

物联网6G晶振,4HF050000Z3BACTGI8,IDT低抖动Osc振荡器,4HF050000Z4AACXGI8,7050mm贴片晶振，美国进口晶振，IDT艾迪悌晶振，4HF系列晶振，编码为：4HF050000Z3BACTGI8，频率为：50.000MHz，LV-PECL输出差分晶振，超低抖动Osc振荡器+PPM边缘MEMS振荡器（LVPECL），小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，有源晶振， 石英晶振。4HF系列石英晶振超低相位抖动（100 fs）振荡器，能够在1ppm的步长中实现高达± 1000ppm的实时频率边缘。它是理想的应用程序需要极低的抖动和/或加PPM时钟。从99.900到100.100 MHz的任何频率都可以实时生成，而不需要使用y个外部XTAL或XO。应用于：通讯设备，无线网络，蓝牙模块，物联网，导航仪，机顶盒，光端机，安防设备及各种频率控制设备上.
.jpg)
物联网6G晶振,4HF050000Z3BACTGI8,IDT低抖动Osc振荡器,4HF050000Z4AACXGI8,7050mm贴片晶振，参数表
| Parameter | 2.5 V | 3.3 V | Units | Conditions | ||||
| Specifications | Specifications | |||||||
| Min | Typ | Max | Min | Typ | Max | |||
| Supply Voltage (VDD) | 2.375 | 2.5 | 2.625 | 2.97 | 3.3 | 3.63 | V | |
| Output Frequency | 100 | 100 | MHz | |||||
| Frequency Stability | -50 | 50 | -50 | 50 | ppm | Includes supply voltage and temperature variation (-40 to 85°C), | ||
| reflow drift, and aging. | ||||||||
| Supply Current | 90 | 95 | mA | No load | ||||
| Enable/Disable Time | 1 | 1 | us | Guaranteed by design | ||||
| Input LOW level | 0.3VDD | 0. 7VDD | 0.3VDD | V | At OE pin | |||
| Input HIGH level | 0. 7VDD | VDD-1.8 | VDD-1.8 | V | ||||
| Output LOW level | 0.8 | VDD-1.1 | 1.5 | V | ||||
| Output HIGH level | VDD-1.0 | 1.6 | 2.3 | V | ||||
| Amplitude (VA ) | 0.75 | 0.75 | V | Single Ended output swing (Pk-Pk) | ||||
| Mid Level (VM) | VDD-1.3 | VDD-1.3 | V | |||||
| Rise Time (TR) | 300 | 250 | ps | Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char. | ||||
| Symmetry (SYM) | 48 | 50 | 52 | 48 | 50 | 52 | % | Worst case; measured at 50% of waveform |
| Phase Jitter | 0.12 | 0.12 | 1.875MHz to 20MHz, RMS; Measured Differentially (IEEE802.3-2005) | |||||
| 0.25 | 0.25 | ps | 12k to 20MHz, RMS; Measured Differentially | |||||
| Period Jitter | 2.5 | 2.5 | ps | RMS | ||||
| Cycle-to-Cycle Jitter | 20 | 20 | ps | 1,000 cycles, Peak | ||||
| Start-up Time | 10 | 10 | ms | Output valid time after power up, 25°C | ||||
| Aging | ± 5 | ± 5 | ppm | 25°C, 10 years | ||||
.jpg)

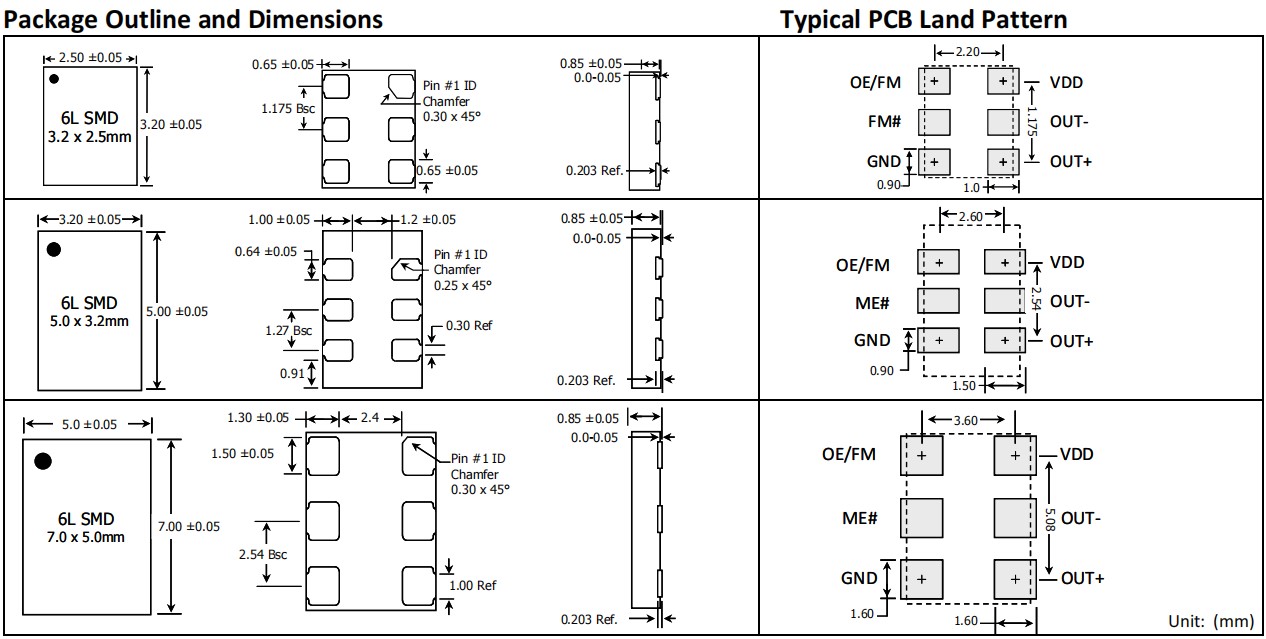

物联网6G晶振,4HF050000Z3BACTGI8,IDT低抖动Osc振荡器,4HF050000Z4AACXGI8,7050mm贴片晶振，尺寸图
物联网6G晶振,4HF050000Z3BACTGI8,IDT低抖动Osc振荡器,4HF050000Z4AACXGI8,7050mm贴片晶振

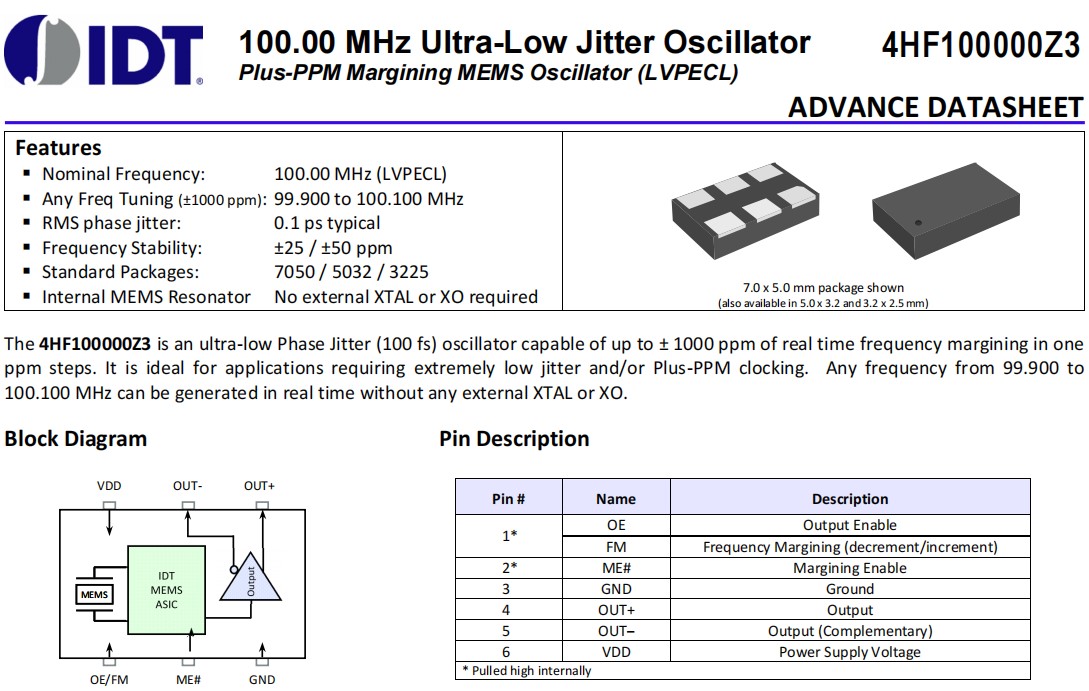

产品特点：标称频率： 100。00 MHz（LVPECL）
任何Freq调谐（±1000 ppm）： 99.900至100.100 MHz
RMS相位抖动：0.1 ps典型的
频率稳定性： ± 25 / ± 50 ppm
标准软件包： 7050mm，5032mm，3225mm贴片晶振
内部MEMS谐振器不需要外部XTAL或XO
| 原厂代码 | 品牌 | 参数 | 型号 | 频率 |
| 4HF050000Z3AACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3AACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z3BACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVPECL SMD | 4HF | 50MHz |
| 4HF050000Z4AACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4AACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACTGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACTGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACUGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACUGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACXGI | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF050000Z4BACXGI8 | IDT晶振 | OSC MEMS 50.000MHZ LVDS SMD | 4HF | 50MHz |
| 4HF100000Z3AACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3AACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z3BACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVPECL SMD | 4HF | 100MHz |
| 4HF100000Z4AACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4AACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACTGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACTGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACUGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACUGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACXGI | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF100000Z4BACXGI8 | IDT晶振 | OSC MEMS 100.000MHZ LVDS SMD | 4HF | 100MHz |
| 4HF106250Z3AACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACTGI8 | 进口晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3AACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACTGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z3BACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVPECL SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACTGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4AACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACTGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACTGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACUGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACUGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACXGI | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF106250Z4BACXGI8 | IDT晶振 | OSC MEMS 106.25MHZ LVDS SMD | 4HF | 106.25MHz |
| 4HF125000Z3BACTGI | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACTGI8 | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACUGI | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACUGI8 | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACXGI | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
| 4HF125000Z3BACXGI8 | IDT晶振 | OSC MEMS 125.000MHZ LVPECL SMD | 4HF | 125MHz |
