更多>>常用编码Q22FA23V0023500是一款耐压性能极强的无源贴片晶体用于蓝牙
来源:http://www.kangbidz.com 作者:aius 2022年08月29
常用编码Q22FA23V0023500是一款耐压性能极强的无源贴片晶体用于蓝牙,随着高科技的发展需求,许多新型的高科技产品推出,如人工智能,VR,智能家居等系列产品,这些产品的出现将为我们平淡的生活增加一抹光彩,并带来了非凡的体验,感受科技带来的震撼,同时也需要保持一定警惕力,才得以在这个时代里找到新的方向与机会,高科技的推出必然缺少不了晶振产品,而对于晶振产品的了解,也许并非像我们所想象的那么简单,也许其中涉及极其深奥,以及广度,当产品与晶振完美结合时,它的体验又是如何,晶振是如何运行的您又知多少?
Product Number16 | LxWxH | 爱普生晶振型号 | Frequency | CL Value | Freq.tol. @+25°C | Freq.tol./Temp.range | Temperature range |
Q22FA23V0013600 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 8 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0014400 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-15 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0014900 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 20 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0015000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C |
Q22FA23V0016000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0016200 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0016400 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0017000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0017800 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 18 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0017900 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.500000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0018000 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0019200 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 10 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0019300 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12.5 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0019500 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.000000 MHz | 9 pF | +/-20 ppm | +/-50 ppm | -40 to +85 °C |
Q22FA23V0019700 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 8 pF | +/-15 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0020500 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 8 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0021000 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0023300 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-20 ppm | +/-20 ppm | -20 to +70 °C |
Q22FA23V0023500 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 9 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0023900 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0024100 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -40 to +85 °C |
常用编码Q22FA23V0023500是一款耐压性能极强的无源贴片晶体用于蓝牙,石英晶体,有天然的也有人造的,是一种重要的压电晶体材料。石英晶体本身并非振荡器,它只有借助于有源激励和无源电抗网络方可产生振荡。SPXO主要是由品质因数(Q)很高的晶体谐振器(即晶体振子)与反馈式振荡电路组成的。石英晶体振子是振荡器中的重要元件,晶体的频率(基频或n次谐波频率)及其温度特性在很大程度上取决于其切割取向。石英晶体谐振器的基本结构、(金属壳)封装及其等效电路。只要在晶体振子板极上施加交变电压,就会使晶片产生机械变形振动,此现象即所谓逆压电效应。当外加电压频率等于晶体谐振器的固有频率时,就会发生压电谐振,从而导致机械变形的振幅突然增大。
石英晶体振荡器是高精度和高稳定度的振荡器,被广泛应用于彩电、计算机、遥控器等各类振荡电路中,以及通信系统中用于频率发生器、为数据处理设备产生时钟信号和为特定系统提供基准信号 。石英晶体振荡器是利用石英晶体(二氧化硅的结晶体)的压电效应制成的一种谐振器件,它的基本构成大致是:从一块石英晶体上按一定方位角切下薄片(简称为晶片,它可以是正方形、矩形或圆形等),在它的两个对应面上涂敷银层作为电极,在每个电极上各焊一根引线接到管脚上,再加上封装外壳就构成了石英晶体谐振器,简称为石英晶体或晶体、晶振。其产品一般用金属外壳封装,也有用玻璃壳、陶瓷或塑料封装的 。
石英晶体振荡器是高精度和高稳定度的振荡器,被广泛应用于彩电、计算机、遥控器等各类振荡电路中,以及通信系统中用于频率发生器、为数据处理设备产生时钟信号和为特定系统提供基准信号 。石英晶体振荡器是利用石英晶体(二氧化硅的结晶体)的压电效应制成的一种谐振器件,它的基本构成大致是:从一块石英晶体上按一定方位角切下薄片(简称为晶片,它可以是正方形、矩形或圆形等),在它的两个对应面上涂敷银层作为电极,在每个电极上各焊一根引线接到管脚上,再加上封装外壳就构成了石英晶体谐振器,简称为石英晶体或晶体、晶振。其产品一般用金属外壳封装,也有用玻璃壳、陶瓷或塑料封装的 。
Product Number16 | LxWxH | 爱普生晶振型号 | Frequency | CL Value | Freq.tol. @+25°C | Freq.tol./Temp.range | Temperature range |
Q22FA23V0024500 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0024700 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-20 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0025500 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | +/-20 ppm | -20 to +70 °C |
Q22FA23V0026600 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0026800 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0027900 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0029100 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-15 ppm | +/-30 ppm | -40 to +85 °C |
Q22FA23V0030700 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 8 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0031000 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 20 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0031400 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -40 to +85 °C |
Q22FA23V0032600 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-10 ppm | +/-23 ppm | -40 to +85 °C |
Q22FA23V0032700 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | +/-23 ppm | -40 to +85 °C |
Q22FA23V0033200 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-30 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0035800 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 7 pF | +/-30 ppm | +/-20 ppm | -20 to +70 °C |
Q22FA23V0036700 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +75 °C |
Q22FA23V0037200 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 18 pF | +/-20 ppm | +/-30 ppm | -40 to +85 °C |
Q22FA23V0037300 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | +/-30 ppm | -40 to +85 °C |
Q22FA23V0037400 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 9 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |
Q22FA23V0037500 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.800000 MHz | 15 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C |
Q22FA23V0037900 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.300000 MHz | 10 pF | +/-50 ppm | +/-50 ppm | -20 to +70 °C |
Q22FA23V0038000 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.993000 MHz | 10 pF | +/-50 ppm | +/-30 ppm | -20 to +70 °C |

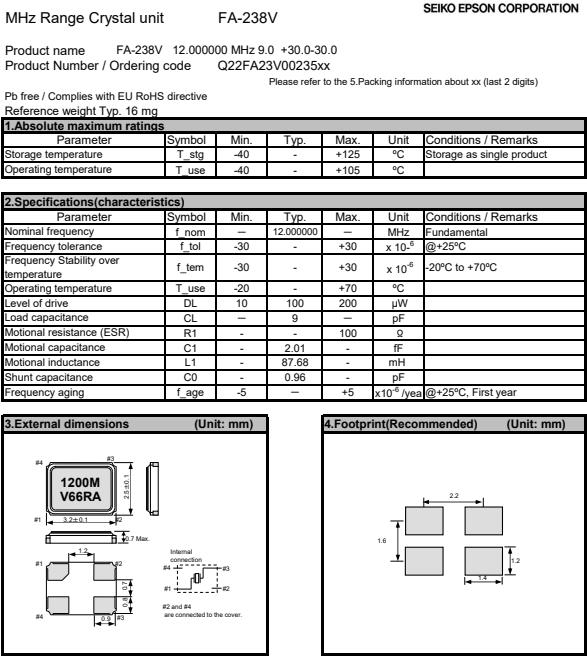

爱普生的这款FA-238V,编码Q22FA23V0023500晶振,频率12.000000兆赫,尺寸(长×宽×高)3.2 × 2.5 × 0.7 mm,负载电容9PF,频率公差+ / -30 ppm,特征公差+ / -30 ppm,温度范围-20到+70°C,具有非常高的稳定性和耐压性能,非常适用于手机,蓝牙,无线局域网,ISM波段收音机,MPU时钟,FA-238V晶振其小体积,高精度,低功耗的特性以及优良的耐热性与耐环境特性,成为时钟,蓝牙的最佳之选.
