首页晶振新闻 HXQ-LVPECL系列2.5V/3.3V高温LVPECL晶体振荡器

HXQ-LVPECL系列2.5V/3.3V高温LVPECL晶体振荡器

来源:http://kangbidz.com 作者:康比电子 2022年07月02
百利通亚陶晶振在生产石英晶体振荡器方面的技术上是无人能及,Diodes晶振所提供石英振荡器和SaRonix-eCera™的石英晶体利用自己内部晶体和IC设计,Diodes提供最好种类的晶体和石英振荡器可以配合用户的设计需求。在业界拥有最小的石英振荡器,实现极好的稳定性透过广泛范围的操作状况。石英晶体振荡器也分为多中类别:温补晶振,压控晶振,压控温补晶振,差分晶振等均为有源晶振。

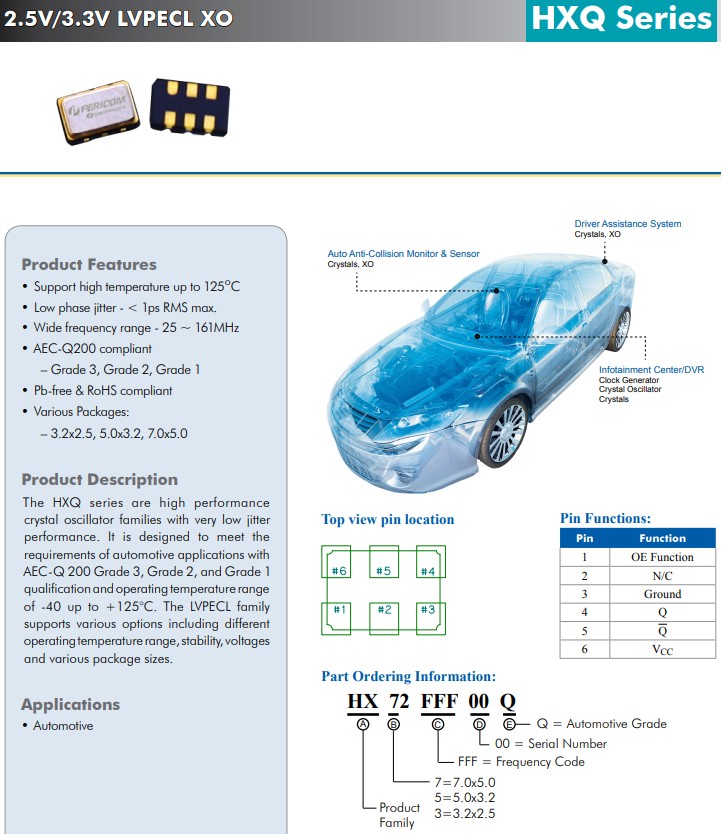

HXQ系列是具有极低抖动的高性能晶体振荡器系列表现。HXQ-LVPECL系列2.5V/3.3V、小体积尺寸3.2x2.5mm、汽车级、高温LVPECL晶体振荡器,它旨在满足汽车应用的要求AEC-Q 200 3级、2级和1级认证和工作温度范围-40°C 至 +125°C。LVPECL系列支持各种选项,包括不同的工作温度范围、稳定性、电压和各种封装尺寸。
产品特点:
支持高达125°C的高温
低相位抖动 - < 1ps RMS最大值。
宽频率范围 - 25 ~ 161MHz
符合 AEC-Q200– 3 级、2 级、1级
无铅且符合 RoHS 标准
各种软件包:3.2x2.5、5.0x3.2、7.0x5.0mm有源晶振
应用于汽车
HXQ-LVPECL系列2.5V/3.3V高温LVPECL晶体振荡器,KX2513G0032.768000,小体积晶振,ECERA晶振
Manufacturer Part Number原厂代码 Manufacturer品牌 Series型号 Frequency 频率 Frequency Stability频率稳定度 Operating Temperature     工作温度
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNETHE025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNSURV027 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 27MHz ±30ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FNGEPO002 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 2.048MHz ±50ppm -20°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
FKSSD1025 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 25MHz ±25ppm -10°C ~ 70°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
UJWIFI026 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 26MHz ±20ppm -30°C ~ 85°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FNEPON125 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 125MHz ±50ppm -20°C ~ 70°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FK1330001Z Diodes Incorporated SaRonix-eCera™ FK 13.3333MHz ±25ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400011 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FJ2400002 Diodes Incorporated SaRonix-eCera™ FJ 24MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C

Product Parameters

Subfamily High Temp XO
Product Series HXQ-LVPECL
Compliance(Only Automotive supports PPAP) Automotive
Freq Range (MHz) 25 to 162
Jitter RMS (ps) <1 ps RMS
Stability (PPM) 20 to 50
Package Size (mm) 3.2 x 2.5
PkgType Ceramic Seam
Output Logic LVPECL
Supply Voltage (V) 3.3, 2.5
Pads 6
HXQ-LVPECL系列2.5V/3.3V高温LVPECL晶体振荡器,KX2513G0032.768000,小体积晶振,ECERA晶振
产品参数:
亚科 高温XO
产品系列 HXQ-LVPECL
合规性(仅汽车支持 PPAP)汽车
频率范围 (MHz) 25 至 162
抖动均方根 (ps) <1 ps RMS
稳定性 (PPM) 20 到 50
包装尺寸(毫米) 3.2 x 2.5mm
包装类型 陶瓷缝
输出逻辑 LVPECL差分晶振
电源电压 (V) 3.3, 2.5
垫 6

FN2500149 Diodes Incorporated SaRonix-eCera™ FN 25MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
SXGPON155 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 155.52MHz ±50ppm -40°C ~ 85°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX2513F0026.000000 Diodes Incorporated SaRonix-eCera™ HX 26MHz ±50ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
HX3125006Q Diodes Incorporated SaRonix-eCera™ HX 25MHz ±30ppm -40°C ~ 105°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
NX3211C0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
FJ1600002 Diodes Incorporated SaRonix-eCera™ FJ 16MHz ±50ppm -20°C ~ 70°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
JX7011D0070.656000 Diodes Incorporated SaRonix-eCera™ JX 70.656MHz ±25ppm -40°C ~ 85°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
UJ2600007Z Diodes Incorporated SaRonix-eCera™ UJ 26MHz ±20ppm -20°C ~ 70°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FJ1120001Z Diodes Incorporated SaRonix-eCera™ FJ 11.2896MHz ±25ppm -40°C ~ 85°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
FDC500026 Diodes Incorporated SaRonix-eCera™ FD 125MHz ±50ppm -20°C ~ 70°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
我们的汽车兼容晶体振荡器 (XO) 旨在满足汽车应用的严格要求,并在其部件号中以“Q”区分。它们是在经过严格 IATF 16949 标准认证的设施中制造的,并且能够根据 VDA6.3 进行客户审核。这些零件均受 PPAP(生产零件批准流程)文档支持,从而满足汽车电子行业的所有要求。
此外,所有符合汽车标准的晶体振荡器 (XO) 均已使用 AECQ-200 和 QAP-81 进行了认证,以涵盖石英谐振器和 XO IC,而不是使用 AEC-Q100(仅针对 IC 定义)。我们计划在 2021 年开始为我们新的符合汽车标准的XO产品逐步采用 AECQ-104 认证标准,但它不会将以前符合 AECQ-200 + QAP-81 的产品重新认证为 AEC-Q104(AECQ- 200 + QAP-81 资格标准和 AECQ-0104 资格标准是测试数量和添加 X 射线检查)。HXQ-LVPECL系列2.5V/3.3V高温LVPECL晶体振荡器,KX2513G0032.768000,小体积晶振,ECERA晶振
HX7011C0025.000000 Diodes Incorporated SaRonix-eCera™ HX 25MHz ±25ppm -40°C ~ 105°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
NX5011B0125.000000 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -20°C ~ 70°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000088Z Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA000065 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
NX71C50003 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±25ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500131 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
NX71C50001 Diodes Incorporated SaRonix-eCera™ NX 125MHz ±20ppm -20°C ~ 70°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FM3900001Z Diodes Incorporated SaRonix-eCera™ FM 39.0625MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
FKA000018Z Diodes Incorporated SaRonix-eCera™ FK 100MHz ±50ppm -40°C ~ 85°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX3124501Q Diodes Incorporated SaRonix-eCera™ HX 24.545452MHz ±25ppm -40°C ~ 105°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX31330001 Diodes Incorporated SaRonix-eCera™ HX 33MHz ±50ppm -40°C ~ 90°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
HX3212F0040.000000 Diodes Incorporated SaRonix-eCera™ HX 40MHz ±50ppm -40°C ~ 105°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
SX10GE156 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 156.25MHz ±50ppm -40°C ~ 85°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HX3127001Q Diodes Incorporated SaRonix-eCera™ HX 27MHz ±25ppm -40°C ~ 105°C
HXQ-LVPECL系列2.5V/3.3V高温LVPECL晶体振荡器,KX2513G0032.768000,小体积晶振,ECERA晶振
HXQ-LVDS系列 3225 20~50 3.2 x 2.5 LVDS 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽车级、高温LVDS晶体振荡器
HXQ-LVDS系列 5032 20~50 5.0 x 3.2 LVDS 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽车级、高温LVDS石英晶体振荡器
HXQ-LVDS系列 7050 20~50 7.0 x 5.0 LVDS 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽车级、高温LVDS晶体振荡器
HXQ-LVPECL系列 3225 20~50 3.2 x 2.5 LVPECL 3.32.5 6 2.5V/3.3V、3.2x2.5mm、汽车级、高温LVPECL晶体振荡器
HXQ-LVPECL-5032系列 20~50 5.0 x 3.2 LVPECL 3.32.5 6 2.5V/3.3V、5.0x3.2mm、汽车级、高温LVPECL晶体振荡器
HXQ-LVPECL-7050系列 20~50 7.0 x 5.0 LVPECL 3.32.5 6 2.5V/3.3V、7.0x5.0mm、汽车级、高温LVPECL晶体振荡器
