百利通亚陶晶振公司凭着自身独有的魅力和诚信与许多用户建立了密切的合作关系,用心发觉客户需求,并针对性提供完美的晶振解决方案,使得用户更信赖亚陶,优质的产品无疑能够让亚陶从众多企业当中脱颖而出。Diodes服务的市场包括消费性电子、计算机、通讯、工业及汽车市场.Diodes推出新型的32.768KHz时钟振荡器为各种应用提供卓越性能FD2600033,ECERA晶振

Our 32.768kHz Crystal Oscillators (XO) have a superior performance for a wide range of applications. Among our offerings, is the world’s smallest 32.768kHz crystal oscillator (XO) with dimensions of only 2.0 x 1.6 mm (KM series). The KM series is designed to meet the challenges of miniaturization while maintaining superb accuracy of the timing signal. We also carry the KX series of crystal oscillators, which are the industry’s lowest power (at less than 10 µA) and tightest stability (+/- 20 ppm) 32kHz XOs.
我们的 32.768kHz 晶体振荡器 (XO) 具有适用于各种应用的卓越性能。我们的产品包括世界上最小的 32.768kHz 晶体振荡器 (XO)，尺寸仅为 2.0 x 1.6 mm（KM 系列）。KM 系列旨在应对小型化的挑战，同时保持时序信号的卓越精度。我们还提供 KX 系列晶体振荡器，它们是业界功耗最低（小于 10 µA）和最严格稳定性 (+/- 20 ppm) 的 32kHz XO。

FN6400020	Diodes晶振	SaRonix-eCera™ FN	64MHz	±25ppm	-20°C ~ 70°C
FN6600053	Diodes晶振	SaRonix-eCera™ FN	66MHz	±25ppm	-20°C ~ 70°C
FN6600055	Diodes晶振	SaRonix-eCera™ FN	66MHz	±50ppm	-20°C ~ 70°C
FN6600056	Diodes晶振	SaRonix-eCera™ FN	66MHz	±50ppm	-40°C ~ 85°C
FN6660065	Diodes晶振	SaRonix-eCera™ FN	66.66MHz	±50ppm	-40°C ~ 85°C
FN6660068	Diodes晶振	SaRonix-eCera™ FN	66.666MHz	±50ppm	-40°C ~ 85°C
FN6660069	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±50ppm	-20°C ~ 70°C
FN6660070	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±25ppm	-20°C ~ 70°C
FN6660071	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±50ppm	-40°C ~ 85°C
FN6660072	Diodes晶振	SaRonix-eCera™ FN	66.667MHz	±25ppm	-20°C ~ 70°C
FN6660074	Diodes晶振	SaRonix-eCera™ FN	66.666MHz	±50ppm	-20°C ~ 70°C
FN7410003	Diodes晶振	SaRonix-eCera™ FN	74.175MHz	±50ppm	-20°C ~ 70°C
UK2600002	Diodes晶振	SaRonix-eCera™ UK	26MHz	±20ppm	-30°C ~ 85°C
NX5021E0156.250000	Diodes晶振	SaRonix-eCera™ NX	156.25MHz	±50ppm	-40°C ~ 85°C
NX5031E0166.666666	Diodes晶振	SaRonix-eCera™ NX	166.666666MHz	±50ppm	-40°C ~ 85°C
NX3222E0156.250000	Diodes晶振	SaRonix-eCera™ NX	156.25MHz	±50ppm	-40°C ~ 85°C
FN1220025	Diodes晶振	SaRonix-eCera™ FN	12.288MHz	±50ppm	-40°C ~ 85°C
UJ2600003	Diodes晶振	SaRonix-eCera™ UJ	26MHz	±20ppm	-20°C ~ 70°C
JT255CP0026.000000	Diodes晶振	SaRonix-eCera™ JT	26MHz	±500ppb	-40°C ~ 85°C

Due to many low-power and portable applications spending the majority of time in standby mode, it is critical for these systems to minimize standby power consumption. Our 32.768 kHz-based timing sources allow these systems to transition to standby mode quickly (<10ms) to maximize battery life without sacrificing the stability (± 20ppm) needed to maintain an accurate clock and calendar.由于许多低功耗和便携式应用程序大部分时间都处于待机模式，因此这些系统必须最大限度地降低待机功耗。我们基于 32.768 kHz 的定时源允许这些系统快速转换到待机模式（<10ms），以最大限度地延长电池寿命，而不会牺牲维持准确时钟和日历所需的稳定性（± 20ppm）。

JT255CP0026.000000	Diodes晶振	SaRonix-eCera™ JT	26MHz	±500ppb	-40°C ~ 85°C
JT255CP0026.000000	Diodes晶振	SaRonix-eCera™ JT	26MHz	±500ppb	-40°C ~ 85°C
FD0670003	Diodes晶振	SaRonix-eCera™ FD	6.7584MHz	±25ppm	-40°C ~ 85°C
FD1300023	Diodes晶振	SaRonix-eCera™ FD	13MHz	±20ppm	-20°C ~ 70°C
FD1300024	Diodes晶振	SaRonix-eCera™ FD	13MHz	±20ppm	-20°C ~ 70°C
FD1430019	Diodes晶振	SaRonix-eCera™ FD	14.31818MHz	±25ppm	-40°C ~ 85°C
FD1940003	Diodes晶振	SaRonix-eCera™ FD	19.44MHz	±20ppm	-20°C ~ 70°C
FD2000047	Diodes晶振	SaRonix-eCera™ FD	20MHz	±20ppm	-20°C ~ 70°C
FD2000051	Diodes晶振	SaRonix-eCera™ FD	20MHz	±20ppm	-20°C ~ 70°C
FD2400026	Diodes晶振	SaRonix-eCera™ FD	24MHz	±20ppm	-20°C ~ 70°C
FD2500051	Diodes晶振	SaRonix-eCera™ FD	25MHz	±20ppm	-20°C ~ 70°C
FD2500053	Diodes晶振	SaRonix-eCera™ FD	25MHz	±20ppm	-20°C ~ 70°C
FD2500063	Diodes晶振	SaRonix-eCera™ FD	25MHz	±25ppm	-40°C ~ 85°C
FD2600029	Diodes晶振	SaRonix-eCera™ FD	26MHz	±20ppm	-20°C ~ 70°C
FD2600032	Diodes晶振	SaRonix-eCera™ FD	26MHz	±20ppm	-20°C ~ 70°C
FD2600033	Diodes晶振	SaRonix-eCera™ FD	26MHz	±25ppm	-40°C ~ 85°C
FD2700036	Diodes晶振	SaRonix-eCera™ FD	27MHz	±20ppm	-20°C ~ 70°C
FD2700042	Diodes晶振	SaRonix-eCera™ FD	27MHz	±25ppm	-40°C ~ 85°C
FD3300020	Diodes晶振	SaRonix-eCera™ FD	33MHz	±20ppm	-20°C ~ 70°C
FD3330023	Diodes晶振	SaRonix-eCera™ FD	33.333MHz	±20ppm	-20°C ~ 70°C

产品特性
AEC-Q200合格
32.768千赫
1.8V CMOS兼容逻辑电平
低功耗待机模式(< 10 μ A)
低功率有源模式(< 0.17mA典型值)
用于标准回流和洗涤技术
无铅和RoHS/绿色环保

FD3330025	Diodes晶振	SaRonix-eCera™ FD	33.333333MHz	±20ppm	-20°C ~ 70°C
FD3720001	Diodes晶振	SaRonix-eCera™ FD	37.2MHz	±20ppm	-20°C ~ 70°C
FD3840012	Diodes晶振	SaRonix-eCera™ FD	38.4MHz	±20ppm	-20°C ~ 70°C
FD3840014	Diodes晶振	SaRonix-eCera™ FD	38.4MHz	±25ppm	-40°C ~ 85°C
FD4000106	Diodes晶振	SaRonix-eCera™ FD	40MHz	±20ppm	-20°C ~ 70°C
FD4000136	Diodes晶振	SaRonix-eCera™ FD	40MHz	±20ppm	-20°C ~ 70°C
FD5000038	Diodes晶振	SaRonix-eCera™ FD	50MHz	±20ppm	-20°C ~ 70°C
FD5400016	Diodes晶振	SaRonix-eCera™ FD	54MHz	±20ppm	-20°C ~ 70°C
FD5780001	Diodes晶振	SaRonix-eCera™ FD	57.875MHz	±20ppm	-20°C ~ 70°C
FD7500012	Diodes晶振	SaRonix-eCera™ FD	75MHz	±20ppm	-20°C ~ 70°C
FD8000008	Diodes晶振	SaRonix-eCera™ FD	80MHz	±25ppm	-20°C ~ 70°C
FD8500001	Diodes晶振	SaRonix-eCera™ FD	85MHz	±25ppm	-20°C ~ 70°C
FDA000017	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-20°C ~ 70°C
FDA000018	Diodes晶振	SaRonix-eCera™ FD	100MHz	±25ppm	-20°C ~ 70°C
FDA000019	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-40°C ~ 85°C
FDA000020	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-40°C ~ 85°C
FDA000021	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-40°C ~ 85°C
FDA000022	Diodes晶振	SaRonix-eCera™ FD	100MHz	±50ppm	-20°C ~ 70°C
FDA620005	Diodes晶振	SaRonix-eCera™ FD	106.25MHz	±50ppm	-20°C ~ 70°C
FDA620006	Diodes晶振	SaRonix-eCera™ FD	106.25MHz	±25ppm	-20°C ~ 70°C
FDA620007	Diodes晶振	SaRonix-eCera™ FD	106.25MHz	±50ppm	-40°C ~ 85°C

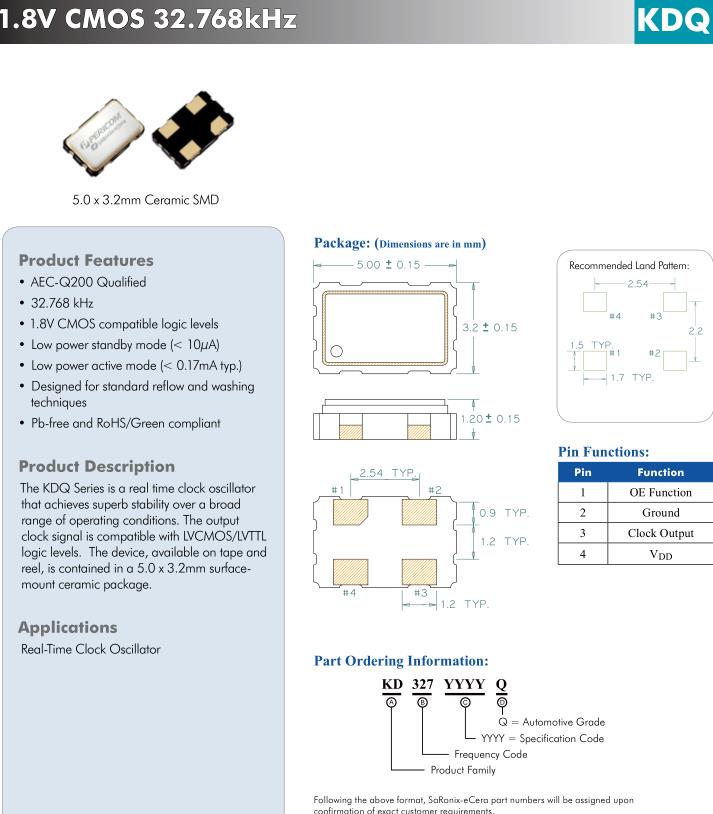

产品描述
KDQ系列是一款实时时钟振荡器这在广阔的土地上实现了极好的稳定性操作条件的范围。输出时钟信号兼容LVCMOS/LVTTL逻辑水平。设备，可在磁带和卷轴，是包含在一个5.0 × 3.2mm的表面-陶瓷封装。
应用程序
实时时钟振荡器
