首页进口晶振 SKYWORKS晶振Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振

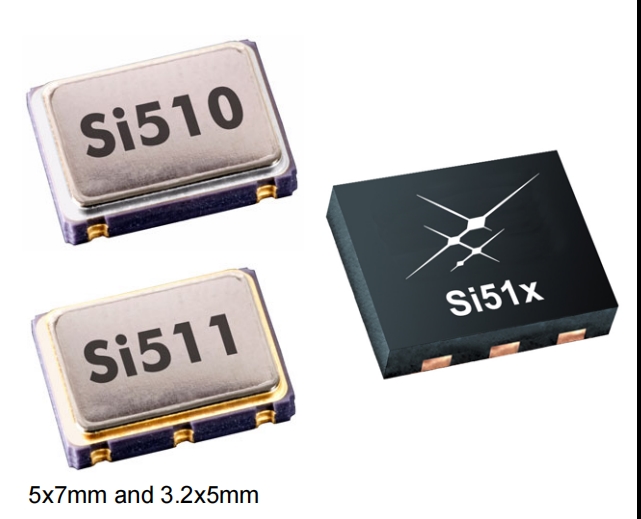

Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振

产品型号：64097489
频率：150MHZ
尺寸：7.0*5.0mm
产品介绍：Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振，尺寸7050mm,频率150MHZ，输出逻辑LVDS，电压1.8V，频率稳定性50ppm，欧美进口晶振，思佳讯差分晶振，...

Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振，尺寸7050mm,频率150MHZ，输出逻辑LVDS，电压1.8V，频率稳定性50ppm，欧美进口晶振，思佳讯差分晶振，Skyworks差分振荡器，150MHZ差分晶振，OSC差分晶振，7050mm差分振荡器，差分晶体振荡器，六脚差分晶振，时钟振荡器，LVDS输出晶振，150MHZ差分晶振，石英晶体振荡器，有源差分晶振，贴片差分晶振，网络设备差分晶振，无人机差分晶振，娱乐设备差分晶振，仪器仪表差分晶振，自动驾驶专用差分晶振，测试测量差分晶振，可穿戴设备差分晶振，以太网差分晶振，高频差分晶振，高精度差分晶振，低耗能差分晶振，低电压差分晶振，低抖动差分晶振，低功耗差分晶振，低相位差分晶振，具有高精度高频低耗能的特点.
有源晶振产品非常适合用于网络设备，无人机，娱乐设备，仪器仪表，自动驾驶，测试测量，可穿戴设备，以太网等领域。Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振.

Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振 参数表

Parameter	Symbol	Test Condition	Min	Typ	Max	Unit
Supply Voltage	V DD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
Supply Current	IDD	CMOS, 100 MHz, single-ended	—	21	26	mA
		LVDS (output enabled)	—	19	23	mA
		LVPECL (output enabled)	—	39	43	mA
		HCSL (output enabled)	—	41	44	mA
		Tristate (output disabled)	—	—	18	mA
OE "1" Setting	VIH	See Note	0.80 x V DD	—	—	V
OE "0" Setting	VIL	See Note	—	—	0.20 x V DD	V
OE Internal Pull-Up/Pull- Down Resistor*	RI		—	45	—	kΩ
Operating Temperature	TA		–40	—	85	oC

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency

CMOS, Dual CMOS

0.1

—

212.5

MHz

LVDS/LVPECL/HCSL

150

MHz

Total Stability*

Frequency Stability Grade C

–30

—

+30

ppm

Frequency Stability Grade B

–50

—

+50

ppm

Frequency Stability Grade A

–100

—

+100

ppm

Temperature Stability

Frequency Stability Grade C

–20

—

+20

ppm

Frequency Stability Grade B

–25

—

+25

ppm

Frequency Stability Grade A

–50

—

+50

ppm

Startup Time

TSU

Minimum V DD until output
frequency (FO) within specification

—

Disable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

Enable Time

FO> 10 MHz

—

µs

FO< 10 MHz

—

µs

Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振 尺寸图

Si511无人机振荡器,511JBA150M000AAG,Skyworks石英差分晶振

OSC差分晶振产品特性

支持来自的任何频率100kHz至250MHz
低抖动操作
2-4周交付周期
总体稳定性包括10年变老
综合生产试验覆盖范围包括晶体ESR和DLD
用于电源的片上LDO调节器电源噪声滤波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS输出选项
可选集成1:2 CMOS扇出缓存
OE和接通电源
行业标准5 x 7、3.2 x 5，和2.5 x 3.2毫米封装
无铅，符合RoHS
–40至85℃操作

Mfr Part #	Mfr	Description	Series	Frequency	Output
511FBA100M000BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si511	100 MHz	LVDS
511ABA106M250BAGR	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVPECL	Si511	106.25 MHz	LVPECL
511BBA106M250BAGR	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVDS SMD	Si511	106.25 MHz	LVDS
511FBA106M250BAGR	Skyworks有源晶振	XTAL OSC XO 106.2500MHZ LVDS SMD	Si511	106.25 MHz	LVDS
511ABA000149BAGR	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVPECL	Si511	74.175824 MHz	LVPECL
511ABA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVPECL	Si511	74.25 MHz	LVPECL
511BBA000149BAGR	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVDS	Si511	74.175824 MHz	LVDS
511BBA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si511	74.25 MHz	LVDS
511FBA000149BAGR	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVDS	Si511	74.175824 MHz	LVDS
511FBA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si511	74.25 MHz	LVDS
511BAA75M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	75 MHz	LVDS
511AAA10M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	10 MHz	LVPECL
511JAB125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511FAA74M2500CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	74.25 MHz	LVDS
511ABA200M000AAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si511	200 MHz	LVPECL
511FBA200M000AAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si511	200 MHz	LVDS
511ABA200M000BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVPECL	Si511	200 MHz	LVPECL
511FBA200M000BAGR	Skyworks有源晶振	XTAL OSC XO 200.0000MHZ LVDS SMD	Si511	200 MHz	LVDS
511ABA212M500BAGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVPECL	Si511	212.5 MHz	LVPECL
511BBA212M500BAGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si511	212.5 MHz	LVDS
511FBA212M500BAGR	Skyworks有源晶振	XTAL OSC XO 212.5000MHZ LVDS SMD	Si511	212.5 MHz	LVDS
511ABA000149BAG	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVPECL	Si511	74.175824 MHz	LVPECL
511FBA000149BAG	Skyworks有源晶振	XTAL OSC XO 74.175824MHZ LVDS	Si511	74.175824 MHz	LVDS
511ABA000185AAG	Skyworks有源晶振	XTAL OSC XO 185.0000KHZ LVPECL	Si511	185 kHz	LVPECL
511FBA153M600AAG	Skyworks有源晶振	XTAL OSC XO 153.6000MHZ LVDS SMD	Si511	153.6 MHz	LVDS
511JBA150M000AAG	Skyworks有源晶振	XTAL OSC XO 150.0000MHZ LVDS SMD	Si511	150 MHz	LVDS
511ABA24M0000AAG	Skyworks有源晶振	XTAL OSC XO 24.0000MHZ LVPECL	Si511	24 MHz	LVPECL
511EBB125M000AAG	Skyworks有源晶振	XTAL OSC XO 125.0000MHZ LVPECL	Si511	125 MHz	LVPECL
511FBA000331BAGR	Skyworks有源晶振	XTAL OSC XO 100.0000MHZ LVDS SMD	Si511	100 MHz	LVDS
511BBA10M0000BAGR	Skyworks有源晶振	XTAL OSC XO 10.0000MHZ LVDS SMD	Si511	10 MHz	LVDS
511BBA5M00000BAGR	Skyworks有源晶振	XTAL OSC XO 5.0000MHZ LVDS SMD	Si511	5 MHz	LVDS
511BBA62M5000BAGR	Skyworks有源晶振	XTAL OSC XO 62.5000MHZ LVDS SMD	Si511	62.5 MHz	LVDS
511FBA96M0000BAGR	Skyworks有源晶振	XTAL OSC XO 96.0000MHZ LVDS SMD	Si511	96 MHz	LVDS
511JBA25M0000BAGR	Skyworks有源晶振	XTAL OSC XO 25.0000MHZ LVDS SMD	Si511	25 MHz	LVDS
511JBA67M5000BAGR	Skyworks有源晶振	XTAL OSC XO 67.5000MHZ LVDS SMD	Si511	67.5 MHz	LVDS
511JBA74M2500BAGR	Skyworks有源晶振	XTAL OSC XO 74.2500MHZ LVDS SMD	Si511	74.25 MHz	LVDS
511JBA52M0000CAGR	SKYWORKS晶振	XTAL OSC XO 52.0000MHZ LVDS SMD	Si511	52 MHz	LVDS
511BBA104M000BAGR	Skyworks有源晶振	XTAL OSC XO 104.0000MHZ LVDS SMD	Si511	104 MHz	LVDS
511ABA50M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	50 MHz	LVPECL
511JBA116M625BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	116.625 MHz	LVDS
511JBA50M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	50 MHz	LVDS
511FBA111M111CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	111.111 MHz	LVDS
511JBA125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511JBA116M625CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	116.625 MHz	LVDS
511FBA83M3333CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	83.3333 MHz	LVDS
511JBA000346CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	33.333333 MHz	LVDS
511BBA100M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	100 MHz	LVDS
511JBA25M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	25 MHz	LVDS
511BBA125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511ABA52M5000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	52.5 MHz	LVPECL
511FBA20M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	20 MHz	LVDS
511JBA10M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	10 MHz	LVDS
511JBA72M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	72 MHz	LVDS
511FBA100M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	100 MHz	LVDS
511JBB125M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	125 MHz	LVDS
511BBA50M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	50 MHz	LVDS
511JBB120M000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	120 MHz	LVDS
511JBA80M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	80 MHz	LVDS
511BBA72M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	72 MHz	LVDS
511JBA66M6670BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	66.667 MHz	LVDS
511JBA26M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	26 MHz	LVDS
511BBA5M00000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	5 MHz	LVDS
511BBA80M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	80 MHz	LVDS
511BBA80M0000BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	80 MHz	LVDS
511BBA70M6560BAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	70.656 MHz	LVDS
511ABA25M0000CAGR	Skyworks有源晶振	DIFFERENTIAL/SINGLE-ENDED; SINGL	Si511	25 MHz	LVPECL
