AKER插件石英晶振,CT26-32.768-12.5-20-X,电话机晶振

产品型号：57219039
频率：32.768KHz
尺寸：2.0x6.0mm
产品介绍：AKER插件晶振,CT26-32.768-12.5-20-X,电话机晶振,32.768K晶振,计时晶振，AKER晶振，安碁晶振，型号：CT26系列，编码为：CT26-32.768-12.5-20-X，频率为：32.768KH...

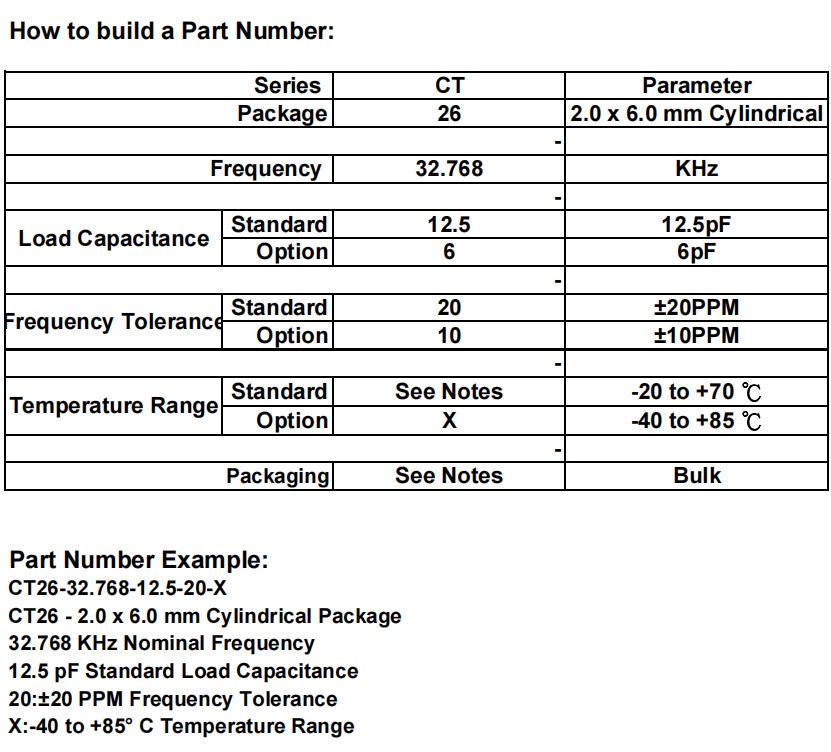

AKER插件晶振,CT26-32.768-12.5-20-X,电话机晶振,32.768K晶振,计时晶振，AKER晶振，安碁晶振，型号：CT26系列晶振，编码为：CT26-32.768-12.5-20-X，频率为：32.768KHz，小体积晶振尺寸：2.0x6.0mm，圆柱型晶振，两脚插件晶振，石英晶体，无源晶振，音叉晶体，石英晶体谐振器，无铅晶振，12.5pF标准负载电容，±20PPM频率公差，-40至+85°C温度范围。具有超小型，高精度，高性能，高品质，耐热及耐环境特点。石英晶振，应用于：智能穿戴设备晶振，小型便捷式设备晶振，通讯设备，无线模块，蓝牙模块，物联网，智能手机，平板电脑，遥控器设备，电话机，时钟晶振，智能家居等应用。

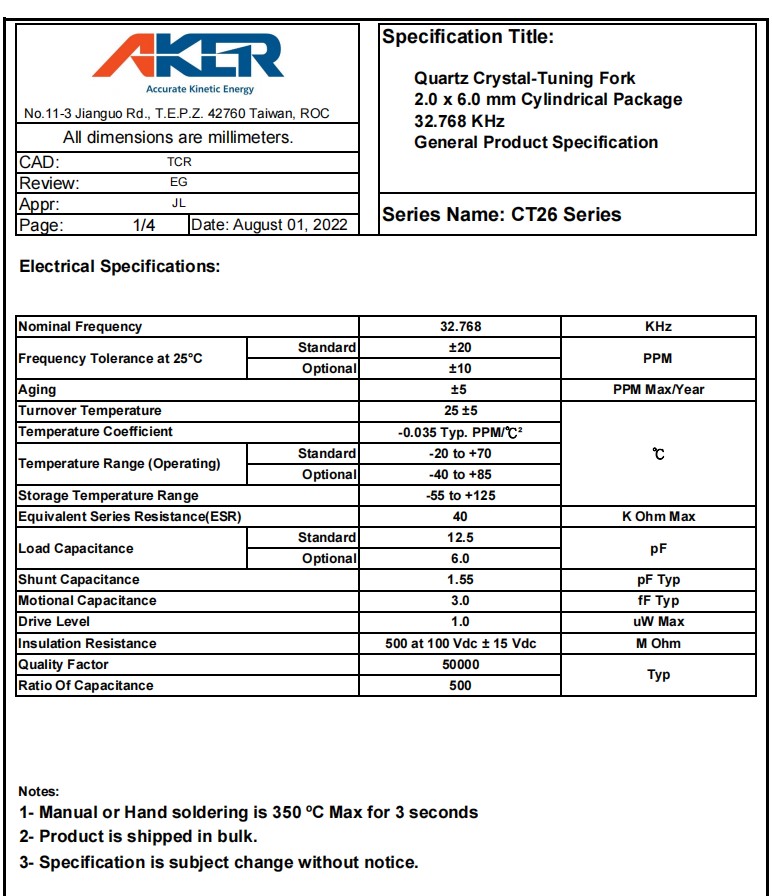

AKER插件晶振,CT26-32.768-12.5-20-X,电话机晶振,32.768K晶振,计时晶振,参数表

Nominal Frequency		32.768	KHz
Frequency Tolerance at 25°C	Standard	±20	PPM
	Optional	±10
Aging		±5	PPM Max/Year
Turnover Temperature		25 ±5	℃
Temperature Coefficient		-0.035 Typ. PPM/℃²
Temperature Range (Operating)	Standard	-20 to +70
	Optional	-40 to +85
Storage Temperature Range		-55 to +125
Equivalent Series Resistance(ESR)		40	K Ohm Max
Load Capacitance	Standard	12.5	pF
	Optional	6.0
Shunt Capacitance		1.55	pF Typ
Motional Capacitance		3.0	fF Typ
Drive Level		1.0	uW Max
Insulation Resistance		500 at 100 Vdc ± 15 Vdc	M Ohm
Quality Factor		50000	Typ
Ratio Of Capacitance		500

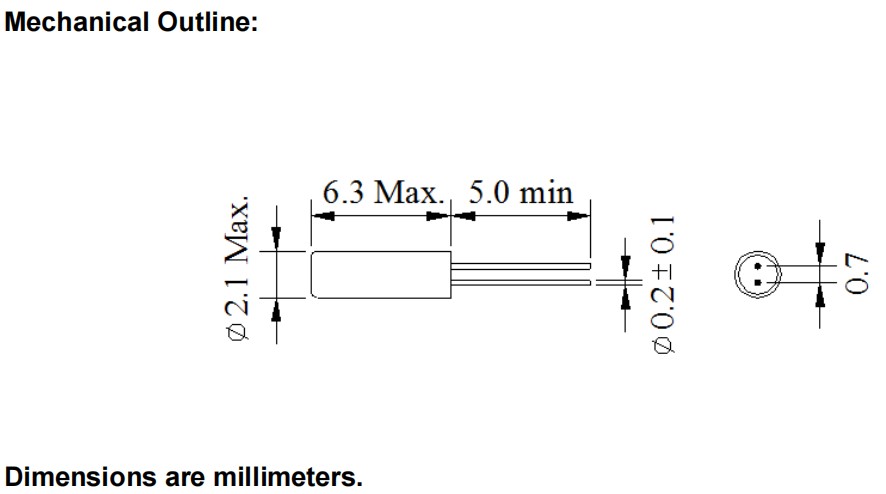

AKER插件晶振,CT26-32.768-12.5-20-X,电话机晶振,32.768K晶振,计时晶振,尺寸图

产品编码	进口晶振	描述	系列	频率
C2E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C2E	24 MHz
C2E-16.000-12-3030-X-R	Aker安碁	CRYSTAL 16.0000MHZ 12PF SMD	C2E	16 MHz
C2E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz
C2E-16.000-8-1530-X-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C2E	16 MHz
C1E-32.000-10-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C1E	32 MHz
C1E-25.000-20-2030-R	Aker安碁	CRYSTAL 25.0000MHZ 20PF SMD	C1E	25 MHz
C1E-24.000-10-1015-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz
C1E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz
C1E-32.000-8-1515-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C1E	32 MHz
C16-32.000-8-3030-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C16	32 MHz
C16-26.000-8-1520-R	Aker安碁	CRYSTAL 26.0000MHZ 8PF SMD	C16	26 MHz
C2E-12.000-18-1020-R	Aker安碁	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz
C16-32.000-8-1515-X-R	Aker安碁	CRYSTAL 32MHZ 8PF SMD	C16	32 MHz
C2E-12.000-18-1020-X-R	Aker安碁	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz
C2E-12.000-8-2050-X1-R	Aker安碁	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C2E X1	12 MHz
C16-96.000-8-1520-X2-R	Aker安碁	CRYSTAL 96MHZ 8PF SMD	-	96 MHz
C1E-76.800-10-1012-X-M	Aker安碁	CRYSTAL 76.8MHZ 10PF SMD	C1E	76.8 MHz
C1E-80.000-10-1015-X-M	Aker安碁	CRYSTAL 80MHZ 10PF SMD	C1E	80 MHz
C1E-76.800-8-1012-X-M	Aker安碁	CRYSTAL 76.8MHZ 8PF SMD	C1E	46.8 MHz
C1E-80.000-8-1015-X-M	Aker晶振	CRYSTAL 80MHZ8PF SMD	C1E	80 MHz
C16-26.000-8-1010-R	Aker安碁	CRYSTAL 26MHZ 8PF SMD	C16	26 MHz
C2E-12.000-10-2050-X1-R	Aker安碁	CRYSTAL 12MHZ 10PF SMD AEC-Q200	C2E X1	12 MHz
C1E-96.000-8-1216-X2-R	Aker安碁	CRYSTAL 96MHZ 8PF SMD	C1E X2	96 MHz
C2E-16.000-10-1010-R	Aker安碁	CRYSTAL 16.0000MHZ 10PF SMD	C2E	16 MHz
C1E-24.000-10-1015-M	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz
C2E-25.000-10-3030-X-M	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz
C2E-48.000-10-1020-X-R	Aker安碁	CRYSTAL 48MHZ SMD FOR WIFI	C2E	48 MHz
C1E-96.000-9.9-1216-X2-R	Aker安碁	CRYSTAL 96MHZ 9.9PF SMD	C1E	96 MHz
C1E-52.000-8-1012-X-M	Aker安碁	CRYSTAL 52MHZ 10PF SMD	C1E	52 MHz
C1E-52.000-10-1012-X-M	Aker安碁	CRYSTAL 52MHZ 8PF SMD	C1E	52 MHz
C2E-20.000-10-2050-X1-R	Aker安碁	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C2E X1	20 MHz
C1E-32.000-8-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C1E	32 MHz
C1E-40.000-8-1030-A-X2-R	Aker安碁	UWB CRYSTAL, 2016, 40.000MHZ, 8P	C1E Auto	40 MHz
C1E-40.000-8-1550-X1-R	Aker安碁	UWB CRYSTAL, 2016, 40.0000MHZ, 8	C1E	40 MHz
C1E-16.000-10-1520-X-R	Aker安碁	UWB CRYSTAL, 2016, 16.000MHZ, 10	C1E	16 MHz
C1E-55.200-8-1035-A-X2-R	Aker安碁	UWB CRYSTAL, 2016, 55.200MHZ, 8P	C1E Auto	55.2 MHz
C16-40.000-8-1020-A-X-R	Aker安碁	UWB CRYSTAL, 1612, 40.0000MHZ, 8	C16 Auto	40 MHz
C1E-48.000-8-1020-X2-M	Aker安碁	CRYSTAL 48MHZ 8PF SMD	C1E	48 MHz
C1E-48.000-10-1020-X2-M	Aker安碁	CRYSTAL 48MHZ 10PF	C1E	48 MHz
C1E-40.000-8-1050-A-X1-R	Aker安碁	CRYSTAL, 1612, 40.000MHZ, 8PF, S	C1E Auto	40 MHz
C1E-32.000-8-1550-A-X1-R	Aker安碁	CRYSTAL, 1612, 32.000MHZ, 8PF, S	C1E Auto	32 MHz
C1E-24.000-8-1050-A-X1-R	Aker安碁	CRYSTAL, 1612, 24.000MHZ, 8PF, S	C1E Auto	24 MHz
C1E-25.000-12-1050-A-X1-R	Aker安碁	CRYSTAL, 1612, 25.000MHZ, 12PF,	C1E Auto	25 MHz
C1E-16.000-12-20100-A-X1-R	Aker安碁	CRYSTAL, 2016, 16.000MHZ, 12PF,	C1E Auto	16 MHz
C2E-19.200-13-2030-X-R	Aker安碁	CRYSTAL 19.2MHz 13PF SMD	C2E	19.2 MHz
