- 产品型号：33869164
- 频率：32.768KHZ
- 尺寸：3.2*1.5mm
- 产品介绍：瑞士微晶3215晶振,计量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC，尺寸3215mm,频率为32.768KHZ，瑞士无源晶振，Microcrystal，石英水晶振动子，石英晶体，石...
-

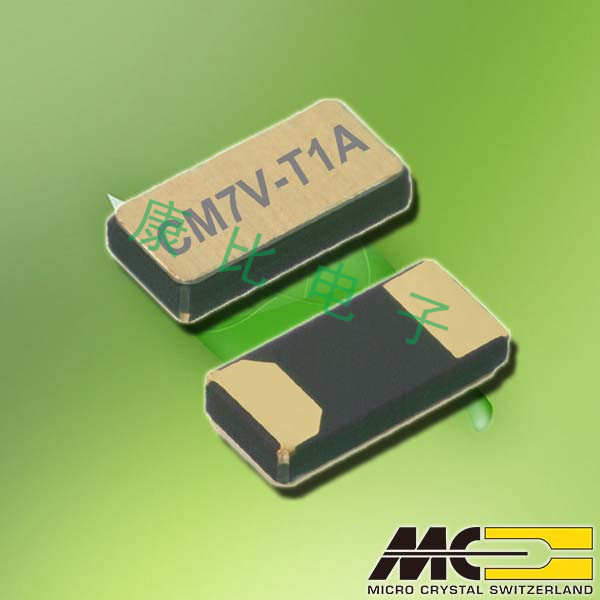

瑞士微晶3215晶振,计量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC
.jpg)
.jpg)
瑞士微晶3215晶振,计量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC，尺寸3215mm,频率为32.768KHZ，瑞士无源晶振，Microcrystal，石英水晶振动子，石英晶体，石英贴片晶振，音叉晶体，3215mm石英晶振，两脚贴片晶振，32.768KHZ贴片晶振，32.768KHZ石英晶体，SMD石英晶体，轻薄型晶体，绿色环保晶振，金属面贴片晶振，SMD晶振，计量专用晶振，物联网晶振，可穿戴设备晶振，便携式设备晶振，高性能晶振，高质量晶振，低损耗晶振，低功耗晶振。
CM7V-T1A是一款低频SMT石英晶体单元包含一个音叉石英晶体谐振器。它在在带有金属盖的密封陶瓷封装中的真空。产品适合用于物联网，计量，工业的，汽车，医疗保健，可穿戴设备、便携式设备等领域。瑞士微晶3215晶振,计量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC.
.jpg)

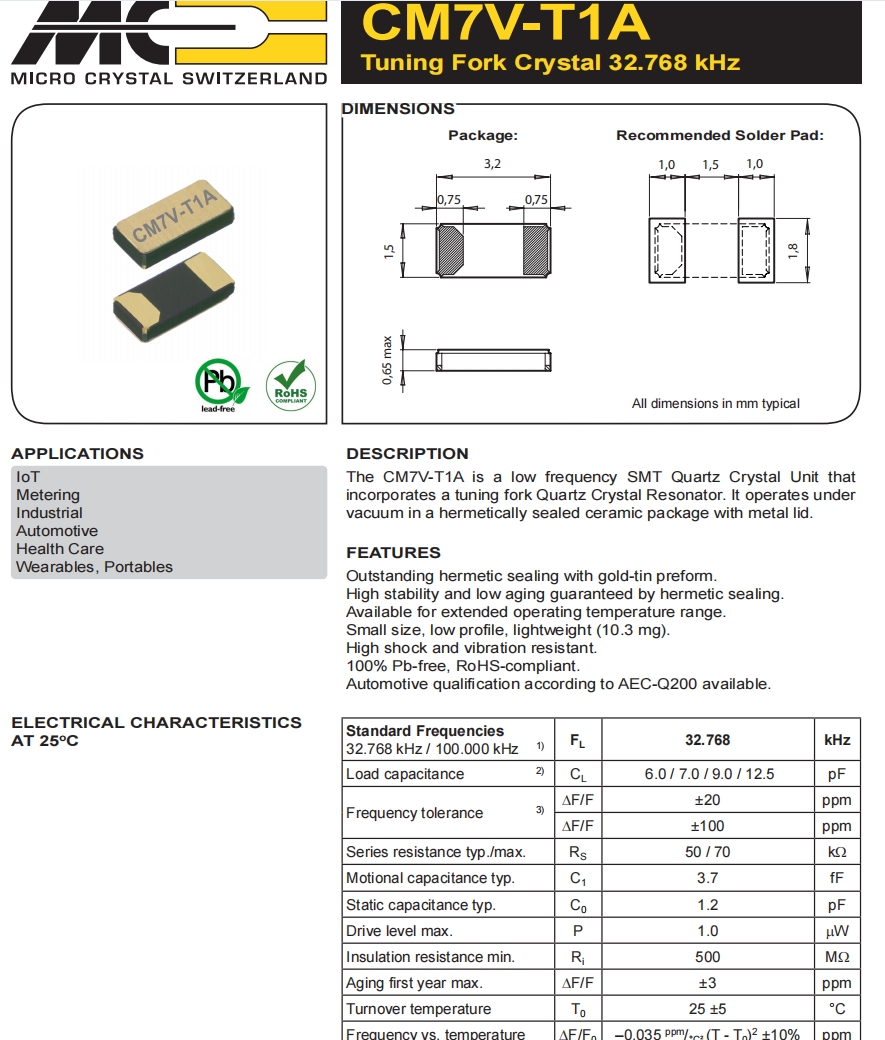

瑞士微晶3215晶振,计量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC 参数表
|
Standard Frequencies 32.768 kHz / 100.000 kHz |
1) | FL | 32.768 | kHz | |||||||||||||
| Load capacitance 2) | CL | 6.0 / 7.0 / 9.0 / 12.5 | pF | ||||||||||||||
| Frequency tolerance 3) | ΔF/F | ±20 | ppm | ||||||||||||||
| ΔF/F | ±100 | ppm | |||||||||||||||
| Series resistance typ./max. | RS | 50 / 70 | kΩ | ||||||||||||||
| Motional capacitance typ. | C1 | 3.7 | fF | ||||||||||||||
| Static capacitance typ. | C0 | 1.2 | pF | ||||||||||||||
| Drive level max. | P | 1.0 | μW | ||||||||||||||
| Insulation resistance min. | Ri | 500 | MΩ | ||||||||||||||
| Aging first year max. | ΔF/F | ±3 | ppm | ||||||||||||||
| Turnover temperature | T0 | 25 ±5 | °C | ||||||||||||||
| Frequency vs. temperature | ΔF/F0 | –0.035 ppm/°C² (T - T0)2 ±10% | ppm | ||||||||||||||
.jpg)

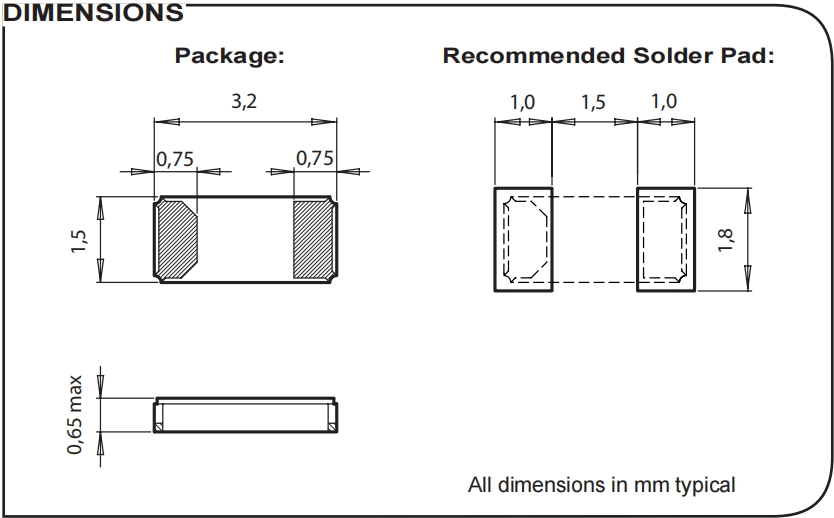

瑞士微晶3215晶振,计量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC 尺寸图
瑞士微晶3215晶振,计量6G晶振,CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC
SMD晶振产品特性
金锡预制棒的出色密封性。
高稳定性和低老化通过密封保证。
适用于扩展的工作温度范围。
体积小、体积小、重量轻（10.3毫克）。
抗冲击和振动能力强。
100%无铅，符合RoHS标准。
可根据AEC-Q200进行汽车鉴定
金锡预制棒的出色密封性。
高稳定性和低老化通过密封保证。
适用于扩展的工作温度范围。
体积小、体积小、重量轻（10.3毫克）。
抗冲击和振动能力强。
100%无铅，符合RoHS标准。
可根据AEC-Q200进行汽车鉴定
| 制造商零件编号 | 制造商 | 描述 |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro晶振 | 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| OV-7604-C7-32.768k-10PPM-TB-QA | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 |
| OV-7604-C7-32.768k-20PPM-TA-QA | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro晶振 | 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro晶振 | 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro晶振 | 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro微晶晶振 | 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro晶振 | 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro晶振 | 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro晶振 | 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro晶振 | 晶体 32.768 kHz 8.2 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-10PPM-TA-QC | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+85C |
| OV-0100-C7-100.000kHz-50PPM-TA-QC | Micro晶振 | 标准时钟振荡器 100.0 kHz +/-50 PPM -40/+85C |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro晶振 | 晶体 307.200 kHz 4.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-30 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-15 PPM -40/+85C |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-30 PPM -55/+125C |
| CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | Micro晶振 | 晶体 2.000 MHz 10.0 pF +/-100 PPM -40/+85C |
| CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | Micro晶振 | 晶体 40.000 kHz 9.0 pF +/-30 PPM -40/+85C |
| 200125-PL08 | Micro晶振 | 晶体 32.768kHz 7pF +/-10 PPM -40C +85C |
| OM-7605-C8-20PPM-TA-QA | Micro晶振 | 标准时钟振荡器 32.768kHz 20ppm 1.6-5.5V |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA T3 | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
