- 产品型号：13188742
- 频率：32.768KHZ
- 尺寸：1.6*1.0mm
- 产品介绍：6G物联网晶振,Micro微晶音叉晶体,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC，尺寸1610mm,频率为32.768KHZ，MicroCrystal，瑞士进口晶振，进口贴片晶振，SMD晶振，石...
-
6G物联网晶振,Micro微晶音叉晶体,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC
.jpg)
.jpg)
6G物联网晶振,Micro微晶音叉晶体,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC，尺寸1610mm,频率为32.768KHZ，MicroCrystal，瑞士进口晶振，进口贴片晶振，SMD晶振，石英晶振，两脚贴片晶振，无源贴片晶振，水晶振动子，1610mm贴片晶振，石英贴片晶振，SMD晶体谐振器，石英晶体谐振器，32.768K音叉晶振，无铅环保晶振，可穿戴设备晶振，医疗保健晶振，便携式设备晶振，计时器晶振，32.768KHZ无源晶体，轻薄型晶振，工业应用晶振，汽车应用晶振，医疗保健专用晶振，高性能晶振，高精度晶振，低功耗晶振，低损耗晶振。
CM9V-T1A是一款低频SMD石英晶体单元包含一个音叉石英晶体谐振器。它在在带有金属盖的密封陶瓷封装中的真空。适合用于物联网，计量，工业的，汽车，医疗保健，可穿戴设备、便携式设备等领域.6G物联网晶振,Micro微晶音叉晶体,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC.
.jpg)

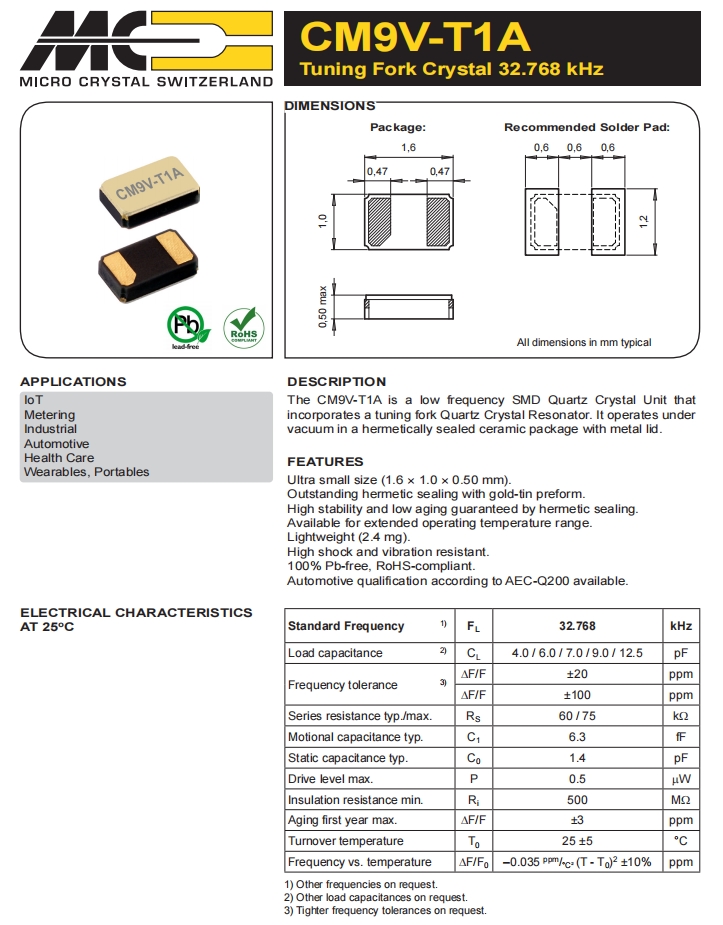

6G物联网晶振,Micro微晶音叉晶体,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC 参数表
| Standard Frequency 1) | FL | 32.768 | kHz | ||||||||||||||||
| Load capacitance 2) | CL | 4.0 / 6.0 / 7.0 / 9.0 / 12.5 | pF | ||||||||||||||||
| Frequency tolerance 3) | ΔF/F | ±20 | ppm | ||||||||||||||||
| ΔF/F | ±100 | ppm | |||||||||||||||||
| Series resistance typ./max. | RS | 60 / 75 | kΩ | ||||||||||||||||
| Motional capacitance typ. | C1 | 6.3 | fF | ||||||||||||||||
| Static capacitance typ. | C0 | 1.4 | pF | ||||||||||||||||
| Drive level max. | P | 0.5 | μW | ||||||||||||||||
| Insulation resistance min. | Ri | 500 | MΩ | ||||||||||||||||
| Aging first year max. | ΔF/F | ±3 | ppm | ||||||||||||||||
| Turnover temperature | T0 | 25 ±5 | °C | ||||||||||||||||
| Frequency vs. temperature | ΔF/F0 | –0.035 ppm/°C² (T - T0)2 ±10% | ppm | ||||||||||||||||
.jpg)

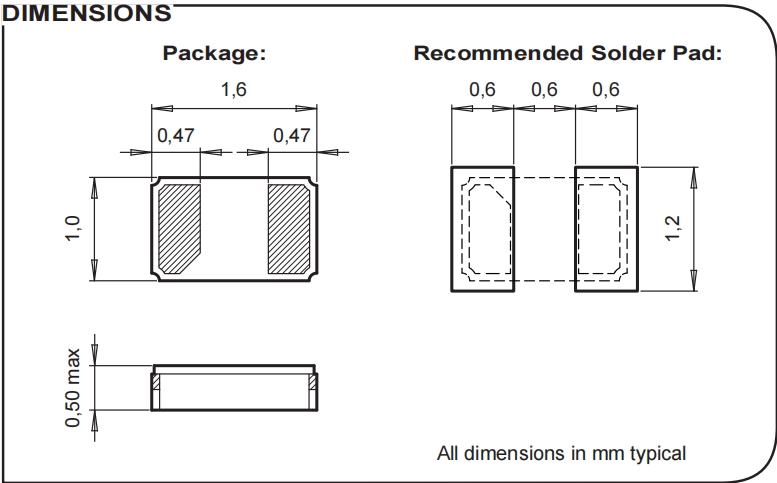

6G物联网晶振,Micro微晶音叉晶体,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC 尺寸图
6G物联网晶振,Micro微晶音叉晶体,CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC
晶振产品特性
超小型（1.6×1.0×0.50 mm）。
金锡预制棒的出色密封性。
高稳定性和低老化通过密封保证。
适用于扩展的工作温度范围。
重量轻（2.4毫克）。
抗冲击和振动能力强。
100%无铅，符合RoHS标准。
可根据AEC-Q200进行汽车鉴定。
金锡预制棒的出色密封性。
高稳定性和低老化通过密封保证。
适用于扩展的工作温度范围。
重量轻（2.4毫克）。
抗冲击和振动能力强。
100%无铅，符合RoHS标准。
可根据AEC-Q200进行汽车鉴定。
| 制造商零件编号 | 制造商 | 描述 |
| OM-7605-C8-32.768kHz-20PPM-TA-QC | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C |
| OM-7604-C7-32.768kHz-20PPM-TA-QC | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-20 PPM I2C -40/+85C |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro微晶晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| 202684-MC03 | Micro晶振 | 晶体 32.768 kHz 4.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C |
| 202273-EA00 | Micro晶振 | 标准时钟振荡器 128MHz 20ppm -55C +85C |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | Micro晶振 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C |
