- 产品型号：11788554
- 频率：32.768KHz
- 尺寸：1.6x1.0x0.5mm
- 产品介绍：EPSON无源晶体FC1610AN,X1A000121000500,小型通讯设备6G晶振，日本进口晶振，EPSON爱普生石英晶振型号FC1610AN，编码为：X1A000121000500，频率为：32.768KHz，小...
-

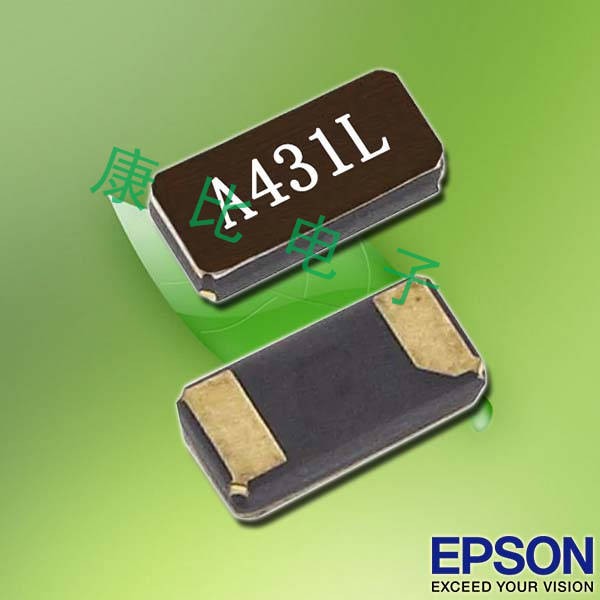

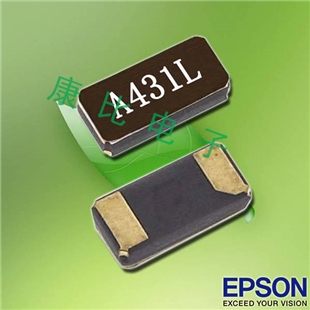

EPSON无源晶体FC1610AN,X1A000121000500,小型通讯设备6G晶振
.jpg)
.jpg)
EPSON无源晶体FC1610AN,X1A000121000500,小型通讯设备6G晶振，日本进口晶振，EPSON爱普生石英晶振型号FC1610AN，编码为：X1A000121000500，频率为：32.768KHz，小体积晶振尺寸：1.6x1.0x0.5mm，两脚贴片晶振，无源晶体，石英晶振，石英晶体谐振器，无铅环保晶振，工作温度范围：-40℃至+85℃，具有超小型，轻薄型，耐热及耐环境特点。被广泛用于：小型通讯设备，便捷式设备，智能手机，平板电脑，儿童手表，钟表电子，仪器仪表设备，智能水电表，智能手表，计时产品等。
.jpg)

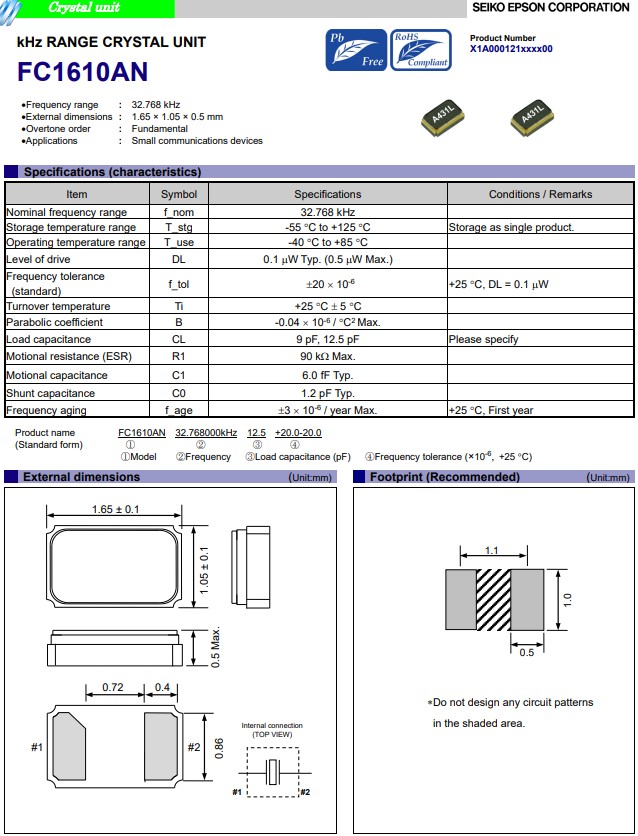

EPSON无源晶体FC1610AN,X1A000121000500,小型通讯设备6G晶振，参数表
| Item | Symbol | FC1610AN | Condition/Remarks |
| Nominal frequency range | f_nom | 32.768kHz | |
| Storage temperature | T_stg | -55°C to +125°C | Store as bare product. |
| Operating temperature | T_use | -40°C to +85°C | |
| Level of drive | DL | 0.1µW Typ. | |
| (0.5µW Max.) | |||
| Frequency tolerance (standard) | f_tol | ± 20 × 10-6 | +25°C, DL=0.1µW |
| Turnover temperature | Ti | +25°C ±5°C | |
| Parabolic coefficient | B | -0.04 × 10-6/ °C2 Max. | |
| Load capacitance | CL | 9pF, 12.5pF | Please specify |
| Motional resistance (ESR) | R1 | 90kΩ Max. | |
| Motional capacitance | C1 | 6.0fF Typ. | |
| Shunt capacitance | C0 | 1.2pF Typ. | |
| Frequency aging | f_age | ±3 ×10-6 / year Max. | +25°C, First year |
.jpg)

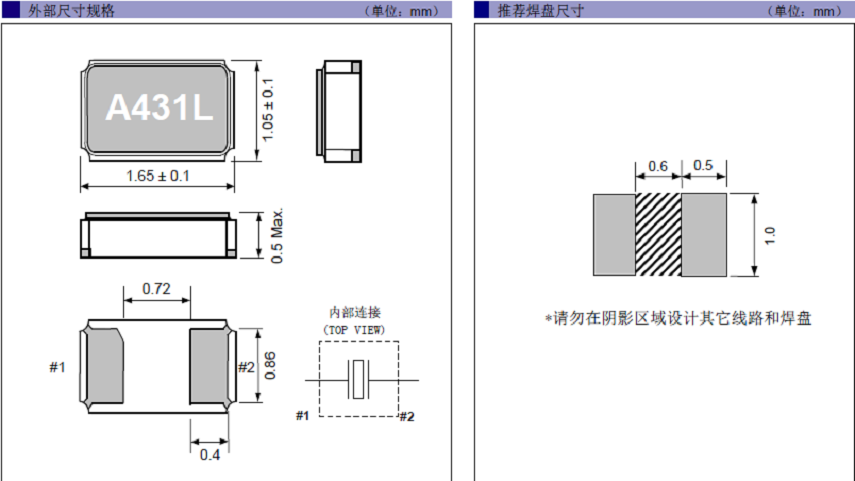

EPSON无源晶体FC1610AN,X1A000121000500,小型通讯设备6G晶振，尺寸图
EPSON无源晶体FC1610AN,X1A000121000500,小型通讯设备6G晶振
32.768KHz系列产品本身具有体积小,厚度薄,重量轻等特点,此音叉型石英晶体谐振器,晶振产品本身具备优良的耐热性,耐环境特性,在办公自动化,家电领域,移动通信领域可发挥优良的电气特性,符合无铅标准,满足无铅焊接的回流温度曲线要求,金属外壳的石英晶振使得产品在封装时能发挥比陶瓷晶振外壳更好的耐冲击性能.
| 编码 | 型号 | 钟表晶振 | 尺寸 | 负载 | 频率 @+25°C | 工作温度 |
| X1A000171000100 | FC2012AN | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-20.0 ppm | -40℃~+105℃ |
| X1A000171000200 | FC2012AN | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+105℃ |
| X1A000171000300 | FC2012AN | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-20.0 ppm | -40℃~+105℃ |
| X1A000121000800 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 7 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121000500 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 12.5 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121000600 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121000700 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 15 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121001100 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 9 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000121001200 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 12.5 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000121001300 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 6 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000121001400 | FC1610AN | 32.768kHz | 1.65 x 1.05 x 0.5 mm | 7 pF | -10.0/+20.0 ppm | -40℃~+85℃ |
| X1A000061000200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061000300 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-30.0 ppm | -40℃~+85℃ |
| X1A000061000800 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061003000 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 8 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061003200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 6.6 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021000200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | 贴片晶振 |
| X1A000021000700 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021000800 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001000 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001100 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001200 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 10 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001300 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000021001400 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | -10.0/+30.0 ppm | -40℃~+85℃ |
| X1A000021001500 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | 20.0/+60.0 ppm | -40℃~+85℃ |
| X1A000021001600 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061000600 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061001400 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 12.5 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000061002100 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 6 pF | +/-20.0 ppm | -40℃~+85℃ |
| X1A000061002400 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 9 pF | +/-10.0 ppm | -40℃~+85℃ |
| X1A000061003500 | FC-12M | 32.768kHz | 2.05 x 1.2 x 0.6 mm | 7 pF | +/-10.0 ppm | -40℃~+85℃ |
