首页进口晶振耐高温晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃

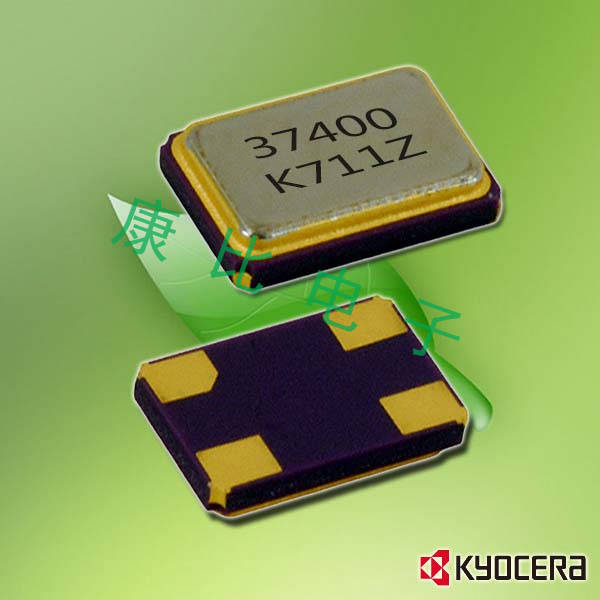

耐高温晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃

产品型号：21510230
频率：32MHz
尺寸：3.2x2.5mm
产品介绍：耐高温晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，日本进口晶振，Kyocera京瓷晶振，型号CX3225SB，编码为：CX3225SB32000D0PSTC1，是一款小体积晶振...

耐高温晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，日本进口晶振，Kyocera京瓷晶振，型号CX3225SB，编码为：CX3225SB32000D0PSTC1，是一款小体积晶振尺寸3.2x2.5x0.55mm陶瓷封装，四脚贴片晶振，无源晶振，石英晶体谐振器，车载对应石英振子，进口SMD晶振，耐高温晶振，无铅环保晶振，频率为：32MHz，工作温度范围：-40℃至+125℃，石英晶振具有超小型晶振、轻薄型晶振、耐热、耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。应用于：汽车电子设备，发动机控制，高速车载网络，车载控制器晶振，汽车动力转向控制器晶振，汽车胎压检测专用晶振，通讯设备晶振，无线网络晶振，蓝牙模块等应用。

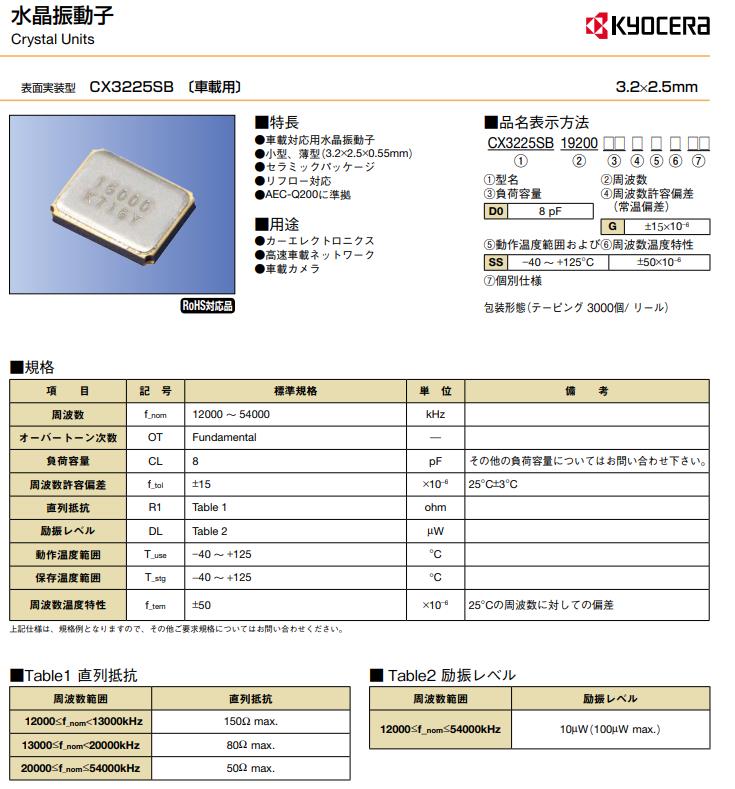

耐高温晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，参数表

項目	符号	CX3225SB 规格	単位	備考
周波数	f_nom	12000 ~ 54000	kHz
超调阶数	OT	Fundamental	―
負荷容量	CL	8	pF	关于其他的负荷容量请咨询
周波数許容偏差	f_tol	±15	× 10−6	25°C±3°C
直列抵抗	R1	Table 1	ohm
激励水平	DL	Table 2	W
動作温度範囲	T_use	−40~+125	°C
保存温度範囲	T_stg	−40~+125	°C
周波数温度特性	f_tem	± 50	× 10−6	相对于25℃频率的偏差

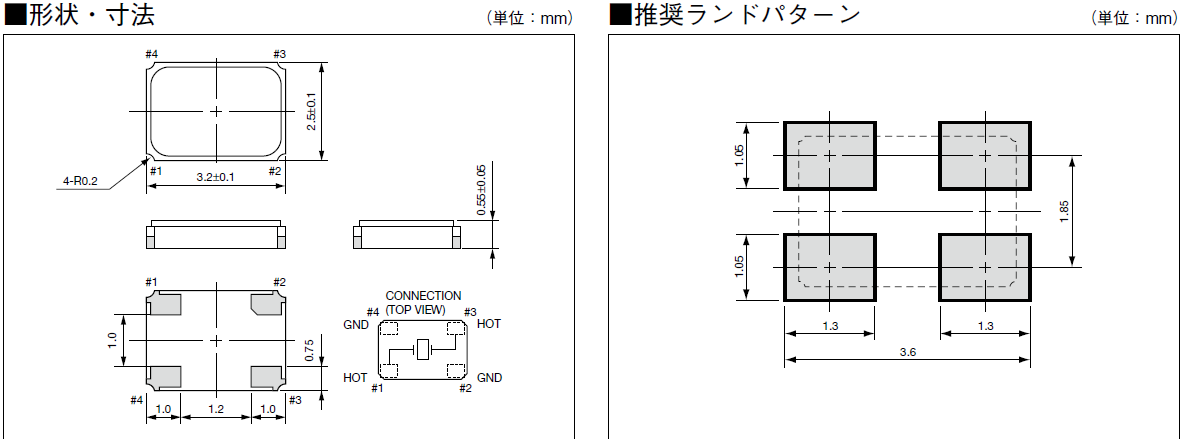

耐高温晶振CX3225SB32000D0PSTC1|32MHz|8pF|3225mm|-40℃~125℃，尺寸图

原厂编码	贴片晶振	型号	频率	工作温度	包装/封装
CX3225SB30000D0FPLCC	Kyocera京瓷晶振	CX3225SB	30MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0FFFCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-20°C ~ 70°C	4-SMD, No Lead
CX3225SB48000D0FFFCC	Kyocera京瓷晶振	CX3225SB	48MHz	-20°C ~ 70°C	4-SMD, No Lead
CX3225SB27000D0FPLCC	Kyocera京瓷晶振	CX3225SB	27MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB25000D0FPLCC	Kyocera京瓷晶振	CX3225SB	25MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0FPJC2	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB16000E0FPZ25	Kyocera京瓷晶振	CX3225SB	16MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB16000D0FLJZZ	Kyocera京瓷晶振	CX3225SB	16MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0FPJC1	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB12000D0FLJCC	Kyocera京瓷晶振	CX3225SB	12MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0FPLCC	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0FPLCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0WPSC2	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB13560D0FLJCC	Kyocera京瓷晶振	CX3225SB	13.56MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB20000H0FLJCC	Kyocera京瓷晶振	CX3225SB	20MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB32000H0FLJCC	Kyocera京瓷晶振	CX3225SB	32MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB40000H0FLJCC	Kyocera京瓷晶振	CX3225SB	40MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB12000D0FPNCC	Kyocera京瓷晶振	CX3225SB	12MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB13560D0FPLCC	Kyocera京瓷晶振	CX3225SB	13.56MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24000D0FPLCC	Kyocera京瓷晶振	CX3225SB	24MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB32000D0FPLCC	京瓷晶振	CX3225SB	32MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0WPSC2	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0FPJC2	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX101F-040.000-H0445	Kyocera京瓷晶振	CX3225SB	40MHz	0°C ~ 85°C	4-SMD, No Lead
CX3225SB12000D0GPSCC	Kyocera京瓷晶振	CX3225SB	12MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB12288D0GPSCC	Kyocera京瓷晶振	CX3225SB	12.288MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB13560D0GPSCC	Kyocera京瓷晶振	CX3225SB	13.56MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB16000D0GPSCC	Kyocera京瓷晶振	CX3225SB	16MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB19200D0GPSCC	Kyocera京瓷晶振	CX3225SB	19.2MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB20000D0GPSCC	Kyocera京瓷晶振	CX3225SB	20MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24000D0GPSCC	Kyocera京瓷晶振	CX3225SB	24MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24576D0GPSCC	Kyocera京瓷晶振	CX3225SB	24.576MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB25000D0GPSCC	Kyocera京瓷晶振	CX3225SB	25MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB26000D0GPSCC	Kyocera京瓷晶振	CX3225SB	26MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB27000D0GPSCC	Kyocera京瓷晶振	CX3225SB	27MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB30000D0GPSCC	Kyocera京瓷晶振	CX3225SB	30MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB32000D0GPSCC	Kyocera京瓷晶振	CX3225SB	32MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0FLJCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB38400H0FLJCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB38400D0GPSCC	Kyocera京瓷晶振	CX3225SB	38.4MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB40000D0GPSCC	Kyocera京瓷晶振	CX3225SB	40MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB48000D0GPSCC	Kyocera京瓷晶振	CX3225SB	48MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB49152D0FLJCC	Kyocera京瓷晶振	CX3225SB	49.152MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB49152H0FLJCC	Kyocera京瓷晶振	CX3225SB	49.152MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB49152D0GPSCC	Kyocera京瓷晶振	CX3225SB	49.152MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB54000D0GPSCC	Kyocera京瓷晶振	CX3225SB	54MHz	-40°C ~ 85°C	4-SMD, No Lead
CX3225SB24576H0KESZZ	Kyocera京瓷晶振	CX3225SB	24.576MHz	-10°C ~ 70°C	4-SMD, No Lead
CX3225SB25000D0FLJZ1	Kyocera京瓷晶振	CX3225SB	25MHz	-30°C ~ 85°C	4-SMD, No Lead
CX3225SB27000D0FLJZ1	Kyocera京瓷晶振	CX3225SB	27MHz	-30°C ~ 85°C	4-SMD, No Lead
