首页进口晶振CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200

产品型号：76801299
频率：28.63636MHz
尺寸：3.2x2.5mm
产品介绍：CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，日本进口晶振，Kyocera京瓷晶振，型号CX3225CA，编码为：CX3225CA28636D0HSSCC，是一款小体积晶振尺...

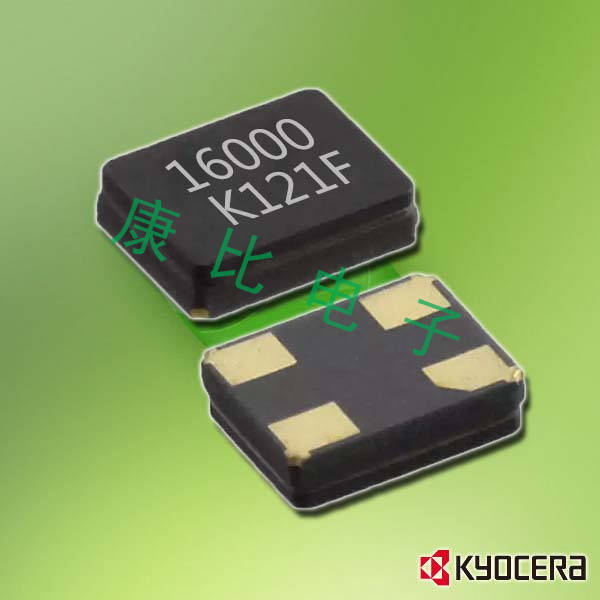

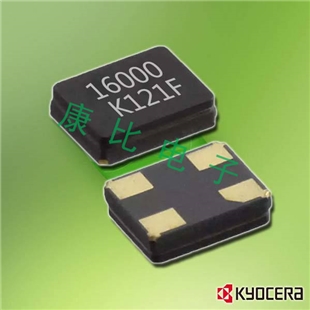

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，日本进口晶振，Kyocera京瓷晶振，型号CX3225CA，编码为：CX3225CA28636D0HSSCC，是一款小体积晶振尺寸3.2x2.5x0.8mm陶瓷封装，陶瓷谐振器，四脚贴片晶振，无源晶振，石英晶体谐振器，车载对应石英振子，SMD晶振，耐高温晶振，无铅环保晶振，频率为：28.63636MHz，工作温度范围：-40℃至+125℃，石英晶振具有超小型晶振、轻薄型晶振、耐热、耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，符合AEC-Q200标准。应用于：汽车电子设备，发动机控制，高速车载网络，车载控制器晶振，汽车动力转向控制器晶振，汽车胎压检测专用晶振，通讯设备晶振，无线网络晶振，蓝牙模块等应用。

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，参数表

項目	記号	CX3225CA 规格	単位	備考
周波数	f_nom	12000 ~ 54000	kHz
超调阶数	OT	Fundamental	―
負荷容量	CL	8	pF	关于其他的负荷容量请咨询
周波数許容偏差	f_tol	±50	× 10−6	25°C±3°C
直列抵抗	R1	Table 1	ohm
激励水平	DL	Table 2	W
動作温度範囲	T_use	−40 ~ +125	°C
保存温度範囲	T_stg	−40 ~ +150	°C
周波数温度特性	f_tem	± 150	× 10−6	相对于25℃频率的偏差

CX3225CA28636D0HSSCC|3225mm|28.63636MHz|8pF|符合AEC-Q200，尺寸表

原厂编码	京瓷贴片晶振	频率	工作温度	包装/封装
CX3225CA32000D0HSSCC	CX3225CA	32MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA25000D0HSSCC	CX3225CA	25MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA12000P0HSTC1	CX3225CA	12MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA12000D0HSSCC	CX3225CA	12MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000D0HSSCC	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA09843D0HSSTT	CX3225CA	9.843MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA28636D0HSSCC	CX3225CA	28.63636MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA27000D0HSSCC	CX3225CA	27MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA30000D0HSSCC	CX3225CA	30MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA24000D0HSSCC	CX3225CA	24MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA13560D0HSSCC	CX3225CA	13.56MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000H0HSSCC	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA10000D0HSSTT	CX3225CA	10MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA20000D0HSSCC	CX3225CA	20MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA26000D0HSSCC	CX3225CA	26MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA40000D0HSSCC	CX3225CA	40MHz	-40°C ~ 125°C	SMD晶振
CX3225CA09843D0HSSZ1	CX3225CA	9.84375MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA10000D0HSSZ1	CX3225CA	10MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA28636D0HSSZ1	CX3225CA	28.63636MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA12000D0HSSZ1	CX3225CA	12MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA32000D0HSSZ1	CX3225CA	32MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA20000D0HSSZ1	CX3225CA	20MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA24000D0HSSZ1	CX3225CA	24MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA25000D0HSSZ1	CX3225CA	25MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA26000D0HSSZ1	CX3225CA	26MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA27000D0HSSZ1	CX3225CA	27MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA30000D0HSSZ1	CX3225CA	30MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA13560D0HSSZ1	CX3225CA	13.56MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000D0HSSZ1	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA40000D0HSSZ1	CX3225CA	40MHz	-40°C ~ 125°C	4-SMD, No Lead
CX3225CA16000H0HSSZ1	CX3225CA	16MHz	-40°C ~ 125°C	4-SMD, No Lead
