- 产品型号：76930271
- 频率：250MHZ
- 尺寸：5.0*3.2mm
- 产品介绍：思佳讯6脚有源晶振,514JCA001267BAGR,Si514无人机差分晶振，尺寸5032mm,频率250MHZ，输出逻辑LVDS，电压1.8V，频率稳定性20ppm，思佳讯有源晶振，Skyworks差分振荡...
-

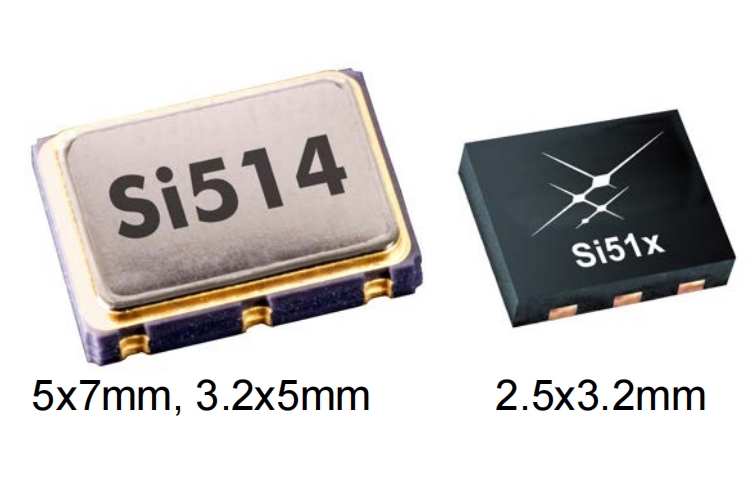

思佳讯6脚有源晶振,514JCA001267BAGR,Si514无人机差分晶振
.jpg)
.jpg)
思佳讯6脚有源晶振,514JCA001267BAGR,Si514无人机差分晶振，尺寸5032mm,频率250MHZ，输出逻辑LVDS，电压1.8V，频率稳定性20ppm，思佳讯有源晶振，Skyworks差分振荡器，欧美进口晶振，差分石英晶体振荡器，LVDS输出晶振，六脚差分晶振，5032mm差分晶振，贴片差分晶振，可编程振荡器，差分贴片晶振，有源晶体振荡器，LVDS差分晶体振荡器，OSC差分晶振，有源差分晶振，医疗产品差分晶振，智能家居差分晶振，交换机专用差分晶振，无人机差分晶振，工业自动化差分晶振，数据通信差分晶振，仪器仪表差分晶振，测试测量差分晶振，无线路由器专用差分晶振，低耗能差分晶振，低抖动差分晶振，高频差分晶振，高质量差分晶振，低电压差分晶振，低相位差分晶振，低功耗差分晶振，具备低抖动低电压的特点。有源晶振产品比较适合用于医疗产品，智能家居，交换机，无人机，工业自动化，数据通信，仪器仪表，测试测量，无线路由器等领域。思佳讯6脚有源晶振,514JCA001267BAGR,Si514无人机差分晶振.
.jpg)
思佳讯6脚有源晶振,514JCA001267BAGR,Si514无人机差分晶振 参数表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| Supply Voltage | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||
| Supply Current | IDD |
CMOS, 100 MHz, single-ended |
— | 21 | 26 | mA | ||||||||
|
LVDS (output enabled) |
— | 19 | 23 | mA | ||||||||||
|
LVPECL (output enabled) |
— | 39 | 43 | mA | ||||||||||
|
HCSL (output enabled) |
— | 41 | 44 | mA | ||||||||||
|
Tristate (output disabled) |
— | — | 18 | mA | ||||||||||
| Operating Temperature | TA | –40 | — | 85 | oC | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
| SDA, SCL Input Voltage High | VIH | 0.80 x V DD | — | — | V | |||||||||
| SDA, SCL Input Voltage Low | VIL | — | — | 0.20 x V DD | V | |||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Units | ||||||||
|
Programmable Frequency Range |
FO | CMOS, Dual CMOS | 0.1 | — | 212.5 | MHz | ||||||||
| FO | LVDS/LVPECL/HCSL | 250 | MHz | |||||||||||
|
Frequency Reprogramming Resolution |
M RES | — | 0.026 | — | ppb | |||||||||
|
Frequency Range for Small Frequency Change (Continuous Glitchless Output) |
From center frequency | –1000 | — | +1000 | ppm | |||||||||
|
Settling time for Small Frequency Change |
<±1000 ppm from center frequency |
— | — | 100 | µs | |||||||||
|
Settling time for Large Frequency Change (Out- put Squelched during Fre- quency Transition) |
>±1000 ppm from center frequency |
— | — | 10 | ms | |||||||||
| Total Stability* | Frequency Stability Grade C | –30 | — | +30 | ppm | |||||||||
| Frequency Stability Grade B | –50 | — | +50 | ppm | ||||||||||
| Frequency Stability Grade A | –100 | — | +100 | ppm | ||||||||||
| Temperature Stability | Frequency Stability Grade C | –20 | — | +20 | ppm | |||||||||
| Frequency Stability Grade B | –25 | — | +25 | ppm | ||||||||||
| Frequency Stability Grade A | –50 | — | +50 | ppm | ||||||||||
| Startup Time | TSU |
Minimum V DD until output frequency (FO) within specification |
— | — | 10 | ms | ||||||||
| Disable Time | TD | FO< 10 MHz | — | — | 40 | µs | ||||||||
| FO> 10 MHz | — | — | 5 | µs | ||||||||||
| Enable Time | TE | FO< 10 MHz | — | — | 60 | µs | ||||||||
| FO> 10 MHz | — | — | 20 | µs | ||||||||||
.jpg)

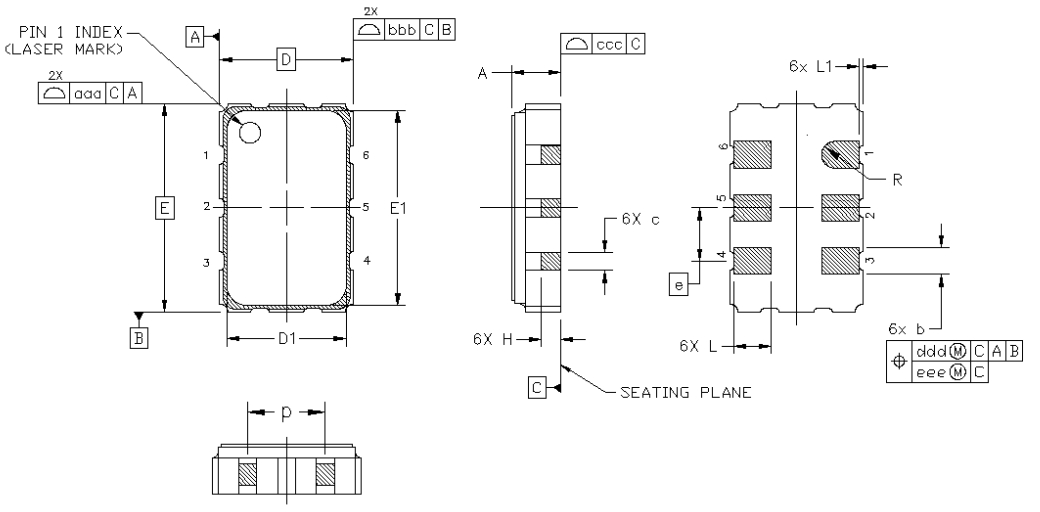

思佳讯6脚有源晶振,514JCA001267BAGR,Si514无人机差分晶振 尺寸图
思佳讯6脚有源晶振,514JCA001267BAGR,Si514无人机差分晶振

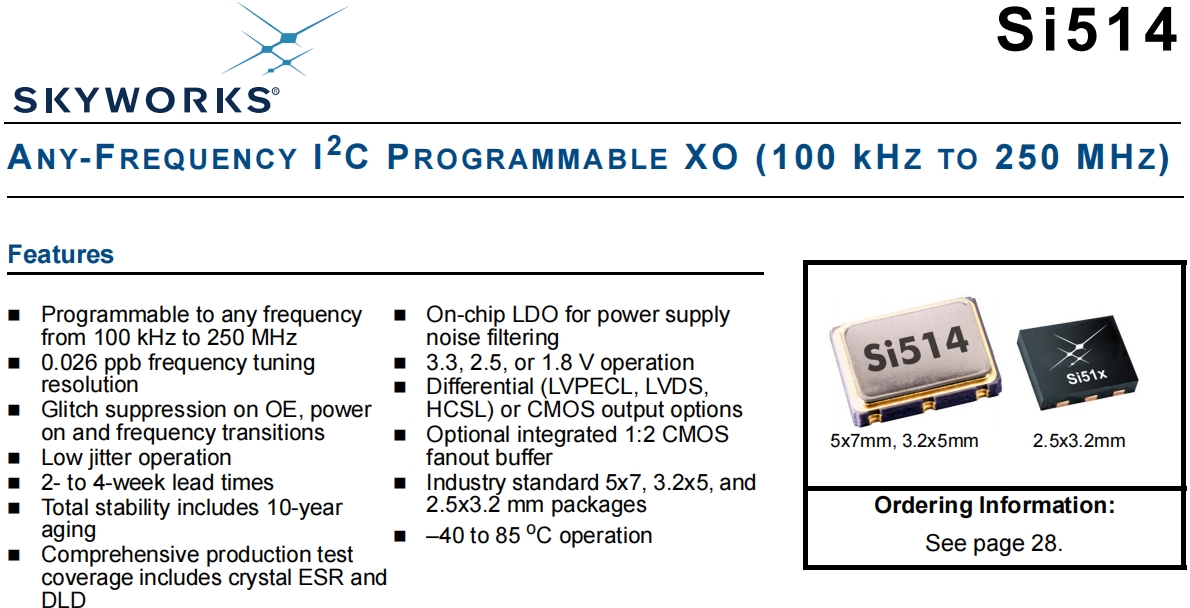

SMD振荡器产品特性
可编程到任何频率从100kHz到250MHz
0.026 ppb频率调谐决议
OE、电源故障抑制接通和频率转换
低抖动操作
2至4周交付周期
总体稳定性包括10年变老
综合生产试验
覆盖范围包括晶体ESR和DLD
用于电源的片上LDO噪声滤波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS输出选项
可选集成1:2 CMOS扇出缓存
行业标准5x7、3.2x5和2.5x3.2 mm包装
–40至85℃操作
0.026 ppb频率调谐决议
OE、电源故障抑制接通和频率转换
低抖动操作
2至4周交付周期
总体稳定性包括10年变老
综合生产试验
覆盖范围包括晶体ESR和DLD
用于电源的片上LDO噪声滤波
3.3、2.5或1.8 V操作
差分（LVPECL、LVDS、HCSL）或CMOS输出选项
可选集成1:2 CMOS扇出缓存
行业标准5x7、3.2x5和2.5x3.2 mm包装
–40至85℃操作
| Mfr Part # | Mfr | Description | Series | Frequency | Output |
| 514FBA000776BAG | Skyworks有源晶振 | XTAL OSC XO 100.0000KHZ LVDS SMD | Si514 | 100 kHz | LVDS |
| 514FBA001346BAG | Skyworks有源晶振 | XTAL OSC XO 200.0800MHZ LVDS SMD | Si514 | 200.08 MHz | LVDS |
| 514FBA001602BAG | Skyworks有源晶振 | XTAL OSC XO 66.6666666MHZ LVDS | Si514 | 66.6666666 MHz | LVDS |
| 514JBA000118BAG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si514 | 156.25 MHz | LVDS |
| 514JBA000121BAG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS |
| 514JBA000126BAG | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si514 | 200 MHz | LVDS |
| 514JBA000586BAG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si514 | 155.52 MHz | LVDS |
| 514JBA000773BAG | Skyworks有源晶振 | XTAL OSC XO 98.3040MHZ LVDS SMD | Si514 | 98.304 MHz | LVDS |
| 514JBA001844BAG | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si514 | 200 MHz | LVDS |
| 514FBA002117BAG | Skyworks有源晶振 | XO DIFF I2C PROGR XO 0.1-250MHZ | Si514 | 74.175 MHz | LVDS |
| 514BBA002376BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 70 MHz | LVDS |
| 514EBA000110CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 74.25 MHz | LVPECL |
| 514JBA001011CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVDS |
| 514JBA001468BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 118 MHz | LVDS |
| 514BBA002367BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 77.6 MHz | LVDS |
| 514BBA000112BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVDS |
| 514BBA000290BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 250 MHz | LVDS |
| 514BBA001794BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 40 MHz | LVDS |
| 514JBA000159CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVDS |
| 514BBA000121CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 MHz | LVDS |
| 514JBA000112CAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVDS |
| 514FBA000115BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 125 MHz | LVDS |
| 514FBA000112BAG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVDS |
| 514FCA001000BAGR | Skyworks有源晶振 | XTAL OSC XO 74.2500MHZ LVDS SMD | Si514 | 74.25 MHz | LVDS |
| 514FCA001028BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si514 | 125 MHz | LVDS |
| 514FCA001029BAGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si514 | 148.5 MHz | LVDS |
| 514FCA001030BAGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si514 | 156.25 MHz | LVDS |
| 514FCA001246BAGR | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS |
| 514FCA001405BAGR | Skyworks有源晶振 | XTAL OSC XO 12.2727MHZ LVDS SMD | Si514 | 12.2727 MHz | LVDS |
| 514FCA001493BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS |
| 514FCA001665BAGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | Si514 | 125 MHz | LVDS |
| 514FCA001804BAGR | Skyworks有源晶振 | XTAL OSC XO 75.3617363MHZ LVDS | Si514 | 75.3617363 MHz | LVDS |
| 514FCA001873BAGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si514 | 148.5 MHz | LVDS |
| 514JCA000112BAGR | Skyworks有源晶振 | XTAL OSC XO 10.0000MHZ LVDS SMD | Si514 | 10 MHz | LVDS |
| 514JCA000121BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS |
| 514JCA000159BAGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si514 | 148.5 MHz | LVDS |
| 514JCA000269BAGR | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVDS SMD | Si514 | 50 MHz | LVDS |
| 514JCA000653BAGR | Skyworks有源晶振 | XTAL OSC XO 161.132812MHZ LVDS | Si514 | 161.132812 MHz | LVDS |
| 514JCA000770BAGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si514 | 100 MHz | LVDS |
| 514JCA000798BAGR | Skyworks有源晶振 | XTAL OSC XO 1.0000MHZ LVDS SMD | Si514 | 1 MHz | LVDS |
| 514JCA001205BAGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si514 | 150 MHz | LVDS |
| 514JCA001267BAGR | Skyworks有源晶振 | XTAL OSC XO 250.0000MHZ LVDS SMD | Si514 | 250 MHz | LVDS |
| 514BCA000290BAGR | Skyworks有源晶振 | XTAL OSC差分晶振 | Si514 | 250 MHz | LVDS |
| 514BCA001741BAGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si514 | 70.656 MHz | LVDS |
| 514BCA000118CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 156.25 MHz | LVDS |
| 514BCA000776BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 kHz | LVDS |
| 514FCA000126CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 200 MHz | LVDS |
| 514JCA000457BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 MHz | LVDS |
| 514FCA000776CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 kHz | LVDS |
| 514ACA000153CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 12 MHz | LVPECL |
| 514BCA001604CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 135 MHz | LVDS |
| 514ACA000121CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 MHz | LVPECL |
| 514FCA000111CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 25 MHz | LVDS |
| 514FCA000776BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 kHz | LVDS |
| 514BCA000112CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVDS |
| 514JCA001604CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 135 MHz | LVDS |
| 514BCA002220BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVDS |
| 514BCA000159CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVDS |
| 514JCA000776BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 100 kHz | LVDS |
| 514FCA000290CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 250 MHz | LVDS |
| 514BCA000932CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 70.656 MHz | LVDS |
| 514JCA000126CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 200 MHz | LVDS |
| 514BCA000408CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 130 MHz | LVDS |
| 514JCA002223BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 233 MHz | LVDS |
| 514BCA000115CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 125 MHz | LVDS |
| 514BCA002204CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 219.5 MHz | LVDS |
| 514BCA000112BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVDS |
| 514ACA000159CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVPECL |
| 514BCA001704CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVDS |
| 514ACA000112CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 10 MHz | LVPECL |
| 514BCA002391BAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 219 MHz | LVDS |
| 514JCA000159CAGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; I2C P | Si514 | 148.5 MHz | LVDS |
