- 产品型号：56062145
- 频率：24.576MHz
- 尺寸：2.5x2.0mm
- 产品介绍：Microchip有源晶振,DSC1003DI2-024.5760,监控摄像头6G晶振,DSC1003DL1-125.0000T,四脚贴片晶振，美国进口晶振，Microchip晶振，型号：DSC1003，编码为：DSC1003DI...
-

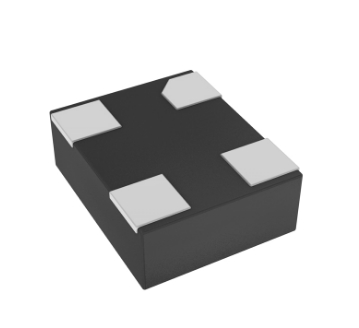

Microchip有源晶振,DSC1003DI2-024.5760,监控摄像头6G晶振
.jpg)
.jpg)

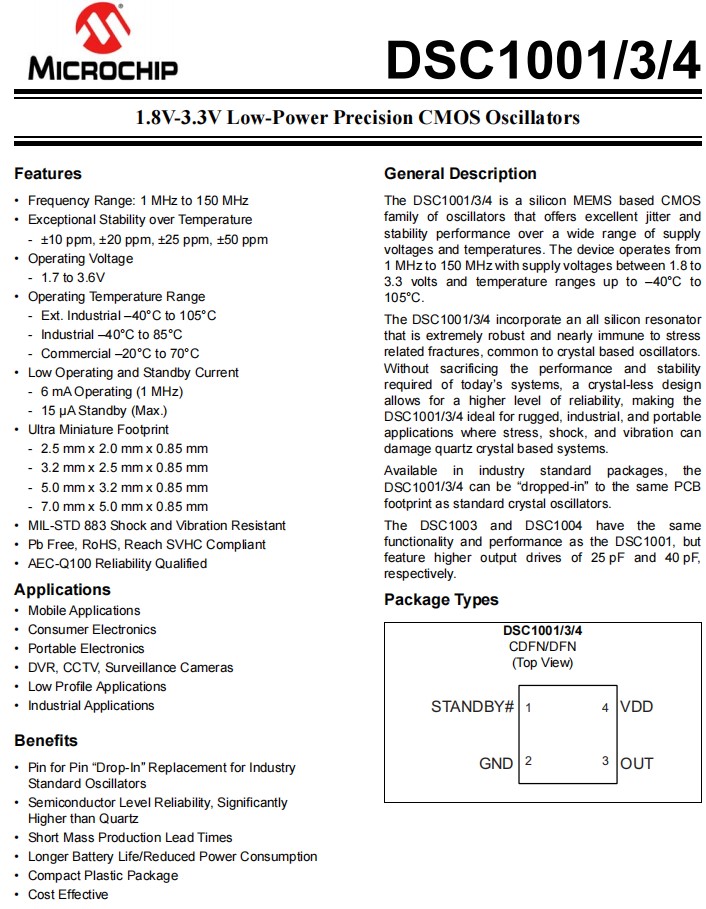

Microchip有源晶振,DSC1003DI2-024.5760,监控摄像头6G晶振,DSC1003DL1-125.0000T,四脚贴片晶振，美国进口晶振，Microchip晶振，型号：DSC1003，编码为：DSC1003DI2-024.5760，频率为：24.576MHz，小体积晶振尺寸：2.5x2.0mm，四脚贴片晶振，石英晶振，DSC1003是一种基于硅MEMS的CMOS系列振荡器，在大范围的电源电压和温度范围内提供优异的抖动和稳定性能。该设备的工作范围为1MHz至150MHz，电源电压在1.8至3.3V之间，温度范围高达-40°C至105°C。
进口晶振DSC1003包含了一个全硅谐振器，它非常坚固，几乎不受应力相关裂缝的影响，这是晶体振荡器常见的。在不牺牲当今系统所需的性能和稳定性的情况下，无晶体设计允许更高水平的可靠性，使DSC1003非常适合坚固、工业和便携式的应用，其中应力、冲击和振动可能会损坏基于石英晶体的系统。应用于：移动应用，消费电子，便携式电子，DVR，闭路电视，监控摄像头，低调应用，工业应用。
.jpg)

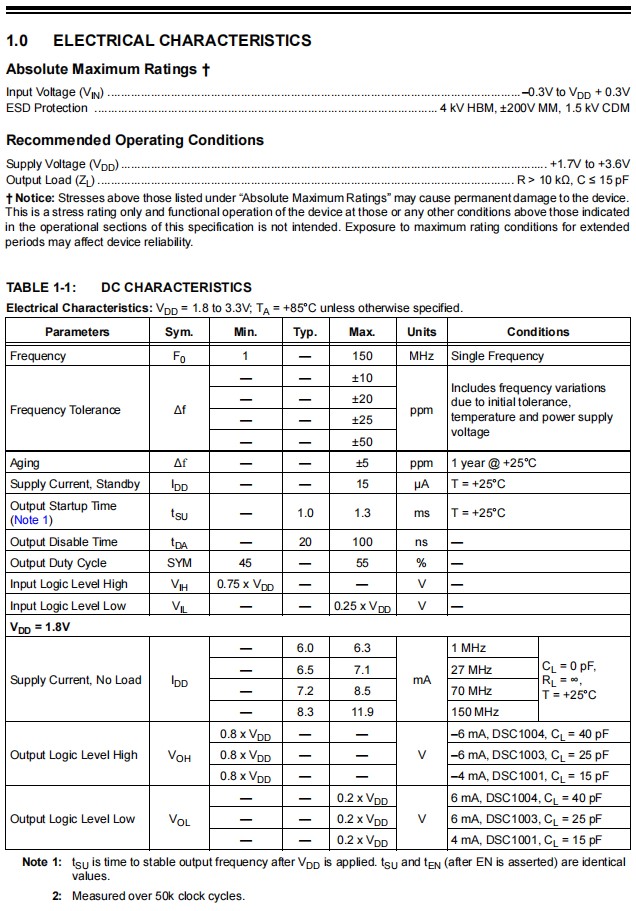

Microchip有源晶振,DSC1003DI2-024.5760,监控摄像头6G晶振,DSC1003DL1-125.0000T,四脚贴片晶振，参数表
| Parameters | Sym. | Min. | Typ. | Max. | Units | Conditions | ||||||||||
| Frequency | F0 | 24.576 | — | MHz | Single Frequency | |||||||||||
| Frequency Tolerance | Δf | ±10 | ppm |
Includes frequency variations due to initial tolerance, temperature and power supply voltage |
||||||||||||
| ±20 | ||||||||||||||||
| — | — | ±25 | ||||||||||||||
| ±50 | ||||||||||||||||
| Aging | Δf | ±5 | ppm | 1 year @ +25°C | ||||||||||||
| Supply Current, Standby | IDD | — | — | 15 | µA | T = +25°C | ||||||||||
|
Output Startup Time (Note 1) |
tSU | — | 1.0 | 1.3 | ms | T = +25°C | ||||||||||
| Output Disable Time | tDA | 20 | 100 | ns | ||||||||||||
| Output Duty Cycle | SYM | 45 | 55 | % | ||||||||||||
| Input Logic Level High | VIH | 0.75 x V DD | — | — | V | — | ||||||||||
| Input Logic Level Low | VIL | 0.25 x V DD | V | |||||||||||||
| V DD = 1.8V | ||||||||||||||||
| Supply Current, No Load | IDD | — | 6.0 | 6.3 | mA | 1 MHz |
CL = 0 pF, RL = ∞ , T = +25°C |
|||||||||
| 6.5 | 7.1 | 27 MHz | ||||||||||||||
| 7.2 | 8.5 | 70 MHz | ||||||||||||||
| — | 8.3 | 11.9 | 150 MHz | |||||||||||||
| Output Logic Level High | V OH | 0.8 x V DD | V | –6 mA, DSC1004, CL = 40 pF | ||||||||||||
| 0.8 x V DD | –6 mA, DSC1003, CL = 25 pF | |||||||||||||||
| 0.8 x V DD | — | — | –4 mA, DSC1001, CL = 15 pF | |||||||||||||
| Output Logic Level Low | VOL | — | — | 0.2 x V DD | V | 6 mA, DSC1004, CL = 40 pF | ||||||||||
| 0.2 x V DD | 6 mA, DSC1003, CL = 25 pF | |||||||||||||||
| — | — | 0.2 x V DD | 4 mA, DSC1001, CL = 15 pF | |||||||||||||
.jpg)

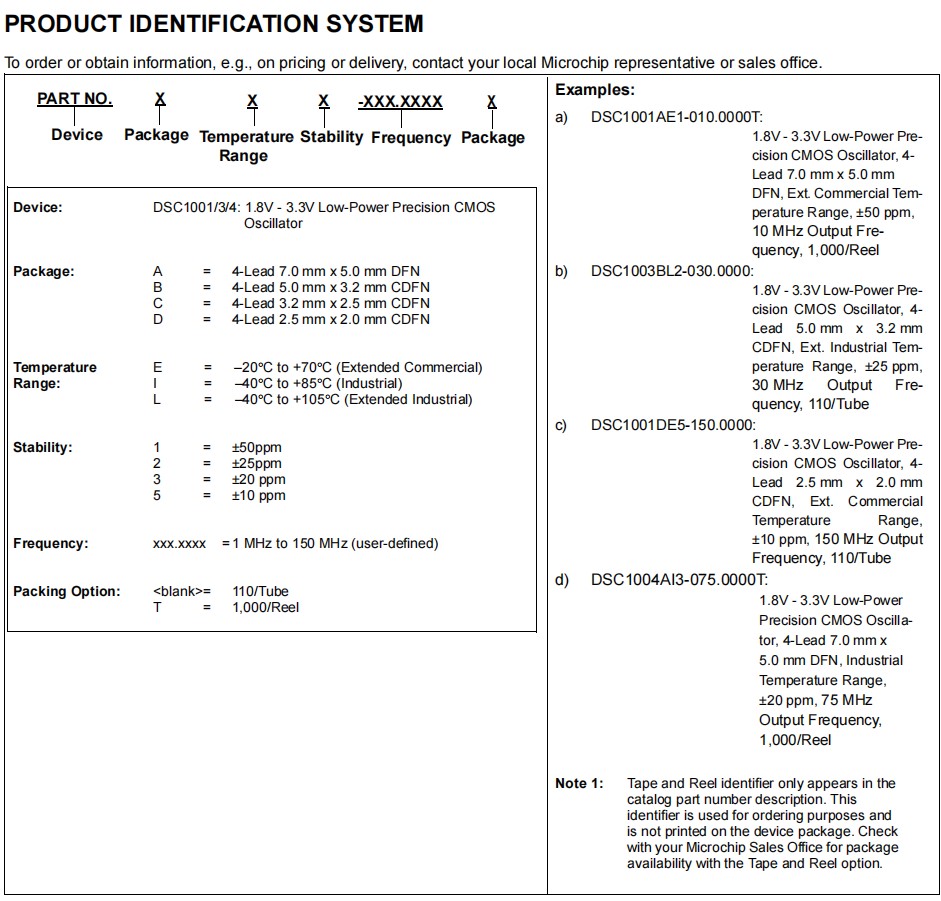

Microchip有源晶振,DSC1003DI2-024.5760,监控摄像头6G晶振,DSC1003DL1-125.0000T,四脚贴片晶振，尺寸图
Microchip有源晶振,DSC1003DI2-024.5760,监控摄像头6G晶振,DSC1003DL1-125.0000T,四脚贴片晶振
产品特性：
频率范围:1至150MHz 石英振荡器
超温度稳定性- ±10 ppm，±20 ppm，±25 ppm，±50 ppm
工作电压- 1.7至3.6V
工作温度范围-外部。工业-40°C至105°C-工业-40°C至85°C-商用-20°C至70°C
低工作和待机电流-6 mA工作（1 MHz）- 15µA待机（最大）
微型尺寸：
2.5毫米x2.0mm毫米x0.85mm毫米
3.2毫米x2.5mm毫米x0.85mm毫米
5.0毫米x3.2mm毫米x0.85mm毫米
7.0毫米x5.0mm毫米x0.85mm毫米
MIL-STD 883防震和抗振动
Pb免费，RoHS，达到SVHC兼容
AEC-Q100可靠性合格
应用：移动通讯应用，消费电子，便携式电子，DVR，闭路电视，监控摄像头，低配置文件应用程序，工业应用
| 有源晶振 | 品牌 | 型号 | 频率 | 电压 |
| DSC1003DI2-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003CI2-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003DL5-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003DL5-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL2-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003DE1-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003CI2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DI2-024.5760 | Microchip晶振 | DSC1003 | 24.576MHz | 1.8 ~ 3.3V |
| DSC1003DL2-070.0000 | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003DL2-008.0000 | Microchip晶振 | DSC1003 | 8MHz | 1.8 ~ 3.3V |
| DSC1003CI5-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI5-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DE1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003AI2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003BI1-060.0000T | Microchip晶振 | DSC1003 | 60MHz | 1.8 ~ 3.3V |
| DSC1003DL1-125.0000 | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DL1-125.0000T | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DI2-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003CI5-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003CL1-048.0000T | Microchip晶振 | DSC1003 | 48MHz | 1.8 ~ 3.3V |
| DSC1003CI2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003DI2-024.5760T | Microchip晶振 | DSC1003 | 24.576MHz | 1.8 ~ 3.3V |
| DSC1003CL1-095.0000T | Microchip晶振 | DSC1003 | 95MHz | 1.8 ~ 3.3V |
| DSC1003DL2-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003DL2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL2-008.0000T | Microchip晶振 | DSC1003 | 8MHz | 1.8 ~ 3.3V |
| DSC1003DL2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL5-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003DL5-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DL2-148.5000T | 石英晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V |
| DSC1003CI5-087.5000 | Microchip晶振 | DSC1003 | 87.5MHz | 1.8 ~ 3.3V |
| DSC1003DL2-090.0000T | Microchip晶振 | DSC1003 | 90MHz | 1.8 ~ 3.3V |
| DSC1003DL2-070.0000T | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003DL2-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 V ~ 3.3 V |
| DSC1003DL5-100.0000 | Microchip晶振 | DSC1003 | 100MHz | 1.8 ~ 3.3V |
| DSC1003DL5-100.0000T | Microchip晶振 | DSC1003 | 100MHz | 1.8 ~ 3.3V |
| DSC1003DL5-125.0000 | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DL5-125.0000T | Microchip晶振 | DSC1003 | 125MHz | 1.8 ~ 3.3V |
| DSC1003DL5-148.5000 | Microchip晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V |
| DSC1003DL5-148.5000T | Microchip晶振 | DSC1003 | 148.5MHz | 1.8 ~ 3.3V |
| DSC1003AI1-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003AI1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003BE2-012.0000 | Microchip晶振 | DSC1003 | 12MHz | 1.8 ~ 3.3V |
| DSC1003BE2-012.0000T | Microchip晶振 | DSC1003 | 12MHz | 1.8 ~ 3.3V |
| DSC1003BE2-027.0000 | Microchip晶振 | DSC1003 | 27MHz | 1.8 ~ 3.3V |
| DSC1003BE2-027.0000T | Microchip晶振 | DSC1003 | 27MHz | 1.8 ~ 3.3V |
| DSC1003CI1-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI1-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003CI1-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003CI1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003CI5-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003AE1-050.0000T | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
| DSC1003AI2-040.0000T | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003BE5-020.9450T | Microchip晶振 | DSC1003 | 20.945MHz | 1.8 ~ 3.3V |
| DSC1003BI1-040.0000T | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003CL1-019.2000T | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DE1-048.0000T | Microchip晶振 | DSC1003 | 48MHz | 1.8 ~ 3.3V |
| DSC1003DL1-019.2000T | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DL1-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003AI2-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003BI1-040.0000 | Microchip晶振 | DSC1003 | 40MHz | 1.8 ~ 3.3V |
| DSC1003CL1-019.2000 | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DL1-019.2000 | Microchip晶振 | DSC1003 | 19.2MHz | 1.8 ~ 3.3V |
| DSC1003DL1-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003AE2-024.0000T | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003BI2-010.0000T | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CI1-070.0000T | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003CI2-010.0000T | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CL2-020.0000T | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003CL2-025.0000T | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DE2-024.0000T | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003AE2-024.0000 | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003BI2-010.0000 | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CI1-070.0000 | Microchip晶振 | DSC1003 | 70MHz | 1.8 ~ 3.3V |
| DSC1003CI2-010.0000 | Microchip晶振 | DSC1003 | 10MHz | 1.8 ~ 3.3V |
| DSC1003CL2-020.0000 | Microchip晶振 | DSC1003 | 20MHz | 1.8 ~ 3.3V |
| DSC1003CL2-025.0000 | Microchip晶振 | DSC1003 | 25MHz | 1.8 ~ 3.3V |
| DSC1003DE2-024.0000 | Microchip晶振 | DSC1003 | 24MHz | 1.8 ~ 3.3V |
| DSC1003CI5-087.5000T | Microchip晶振 | DSC1003 | 87.5MHz | 1.8 ~ 3.3V |
| DSC1003CL1-095.0000 | Microchip晶振 | DSC1003 | 95MHz | 1.8 ~ 3.3V |
| DSC1003DL2-050.0000 | Microchip晶振 | DSC1003 | 50MHz | 1.8 ~ 3.3V |
