首页进口晶振爱普生晶振SG-210SEBA,X1G004611A00500,27MHz,EPSON有源晶振

SG-210SEBA,X1G004611A00500,27MHz,EPSON有源晶振

产品型号：36628460
频率：27.000MHz
尺寸：2.5x2.0mm
产品介绍：SG-210SEBA,X1G004611A00500,27MHz,EPSON有源晶振,2520mm石英晶振,仪器设备晶振，日本进口晶振，EPSON爱普生晶振，型号：SG-210SEBA，产品编码：X1G004611A00500，...

SG-210SEBA,X1G004611A00500,27MHz,EPSON有源晶振,2520mm石英晶振,仪器设备晶振，日本进口晶振，EPSON爱普生晶振，型号：SG-210SEBA，产品编码：X1G004611A00500，频率为：20 MHz，电源电压：1.600V to 2.200 V，工作温度：-40~+105℃，频率偏差：±50ppm，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，CMOS输出晶振，SPXO晶振，有源晶振，石英晶体振荡器，2520晶振，SMD晶振，石英晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，高质量等特点。应用于：汽车音响晶振，车载摄像头系统，汽车导航系统， ECU时钟，时钟,仪表，遥控无匙门禁等应用。

SG-210SEBA,X1G004611A00500,27MHz,EPSON有源晶振,2520mm石英晶振,仪器设备晶振，产品特点：
频率范围：2MHz~60MHz
电源电压：1.8V Typ. / 2.5V Typ. / 3.3V Typ.
电流消耗：0.9mA Typ. (SEB: 1.8V 无负载条件 48MHz)
功能：待机( ST )，SMD晶振
外部尺寸规格：2.5x2.0x0.8mm
工作温度范围：+105°C / +125°C
依据 AEC-Q200

SG-210SEBA,X1G004611A00500,27MHz,EPSON有源晶振,2520mm石英晶振,仪器设备晶振,参数表

项目

符号

规格说明

条件

SG-210SEBA

SG-210SDBA

SG-210SCBA

输出频率范围

27 MHz

请联系我们以便获取其它可用频率的相关信息

电源电压

VCC

1.8V Typ.
1.6V ~ 2.2V

2.5V Typ.
2.2V ~ 3.0V

3.3V Typ.
2.7V ~ 3.6V

储存温度

T_stg

-40 ℃ ~ +125 °C

裸存

工作温度

T_use

-40 ℃ ~ +85 °C / -40 ℃ ~ +105 °C / -40 ℃ ~ +125 °C

频率稳定度

f_tol

B: 土50 × 10-6 , C: 土100 × 10-6

-20℃~+70℃

L: 土50 × 10-6,M: 土100 × 10-6

-40℃~ +85℃

Y: 土50 × 10-6,W: 土100 × 10-6

-40℃~ +105℃

Z: 土100 × 10-6,X: 土150 × 10-6

-40℃~ +125℃

功耗

ICC

1.6 mA Max.

2.4 mA Max.

3.0mA Max.

无负载条件 -40℃ ~+85℃

2.0 mA Max.

3.0 mA Max.

4.0mA Max.

无负载条件 +105℃,+125℃

待机电流

I_std

0.5µA Max.

1.0µA Max.

ST=GND -40℃~ +85℃

1.6µA Max.

2.4µA Max.

3.0µA Max.

ST=GND+105℃, +125℃

占空比

SYM

45%~55%

45 % ~ 55 %

45%~55%

2 MHz= f0<32 MHz

50 % VCC极
L_CMOS < 15pF

40%~60%

40 % ~ 60 %

32 MHz< f0<60 MHz

40%~60%

+105 ℃, +125 ℃

输出电压

VOH

90% VCC Min.

IOH=-1mA

VOL

10% VCC Max.

IOL= 1mA

输出负载条件（CMOS）

L_CMOS

15pF Max.

输入电压

VIH

80 % VCC Min.

ST 终端

VIL

20 % VCC Max.

上升/下降时间

tr/ tf

4 ns Max.

3 ns Max.

+85 ℃

20 % VCC~80% VCC
极,L_CMOS=15pF

7 ns Max.

+105 ℃, +125℃

振荡启动时间

t_str

3 ms Max.

在 90 % VCC 时，所需时间为 0 秒
(+105 °C,+125 °C : 5 ms Max.)

频率老化

f_aging

土3 x 10-6 / year Max.

+25°C, 第一年，VCC=1.8V, 2.5V, 3.3V

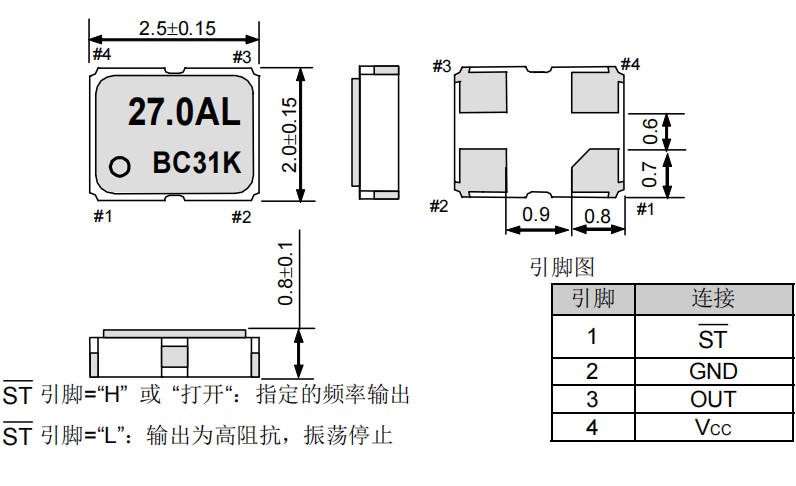

SG-210SEBA,X1G004611A00500,27MHz,EPSON有源晶振,2520mm石英晶振,仪器设备晶振,尺寸图

产品编码	石英晶振	型号	频率	输出方式
X1G004591002600	EPSON爱普生	SG-210SCBA	12.288000 MHz	CMOS
X1G004591A00100	EPSON爱普生	SG-210SCBA	27.000000 MHz	CMOS
X1G004591A00200	EPSON爱普生	SG-210SCBA	49.090000 MHz	CMOS
X1G004591A00300	EPSON爱普生	SG-210SCBA	40.000000 MHz	CMOS
X1G004591A00400	EPSON爱普生	SG-210SCBA	8.000000 MHz	CMOS
X1G004591A00700	EPSON爱普生	SG-210SCBA	27.000000 MHz	CMOS
X1G004591A00800	EPSON爱普生	SG-210SCBA	54.000000 MHz	CMOS
X1G004591A00900	EPSON爱普生	SG-210SCBA	20.000000 MHz	CMOS
X1G004591A01000	EPSON爱普生	SG-210SCBA	33.333000 MHz	CMOS
X1G004591A01100	EPSON爱普生	SG-210SCBA	24.000000 MHz	CMOS
X1G004591A01500	EPSON爱普生	SG-210SCBA	12.000000 MHz	CMOS
X1G004591A01600	EPSON爱普生	SG-210SCBA	18.432000 MHz	CMOS
X1G004591A01700	EPSON爱普生	SG-210SCBA	4.000000 MHz	CMOS
X1G004591A01800	EPSON爱普生	SG-210SCBA	50.000000 MHz	CMOS
X1G004591A01900	EPSON爱普生	SG-210SCBA	50.000000 MHz	CMOS
X1G004591A02000	EPSON爱普生	SG-210SCBA	20.000000 MHz	CMOS
X1G004591A02100	EPSON爱普生	SG-210SCBA	33.333300 MHz	CMOS
X1G004591A02200	EPSON爱普生	SG-210SCBA	8.192000 MHz	CMOS
X1G004591A02300	EPSON爱普生	SG-210SCBA	16.000000 MHz	CMOS
X1G004591A02400	EPSON爱普生	SG-210SCBA	25.000000 MHz	CMOS
X1G004591A02500	进口晶振	SG-210SCBA	25.000000 MHz	CMOS
X1G004591A02600	EPSON爱普生	SG-210SCBA	12.288000 MHz	CMOS
X1G004591A02700	EPSON爱普生	SG-210SCBA	33.300000 MHz	CMOS
X1G004591A02800	EPSON爱普生	SG-210SCBA	48.000000 MHz	CMOS
X1G004591A02900	EPSON爱普生	SG-210SCBA	37.400000 MHz	CMOS
X1G004591A03000	EPSON爱普生	SG-210SCBA	33.000000 MHz	CMOS
X1G004591A03100	EPSON爱普生	SG-210SCBA	25.000000 MHz	CMOS
X1G004591A03200	EPSON爱普生	SG-210SCBA	25.000000 MHz	CMOS
X1G004591A03300	EPSON爱普生	SG-210SCBA	10.000000 MHz	CMOS
X1G004591A03600	EPSON爱普生	SG-210SCBA	33.333300 MHz	CMOS
X1G004591A03700	EPSON爱普生	SG-210SCBA	14.745600 MHz	CMOS
X1G004591A03800	EPSON爱普生	SG-210SCBA	37.007000 MHz	CMOS
X1G004591A03900	EPSON爱普生	SG-210SCBA	2.048000 MHz	CMOS
X1G004591A04000	EPSON爱普生	SG-210SCBA	24.000000 MHz	CMOS
X1G004591A04100	EPSON爱普生	SG-210SCBA	16.000000 MHz	CMOS
X1G004591A04200	EPSON爱普生	SG-210SCBA	26.973027 MHz	CMOS
X1G004591A04400	EPSON爱普生	SG-210SCBA	54.000000 MHz	CMOS
X1G004591A04900	EPSON爱普生	SG-210SCBA	24.576000 MHz	CMOS
X1G004591A05000	EPSON爱普生	SG-210SCBA	22.579200 MHz	CMOS
X1G004591A05100	EPSON爱普生	SG-210SCBA	14.745600 MHz	CMOS
X1G004591A05200	EPSON爱普生	SG-210SCBA	24.576000 MHz	CMOS
X1G004591A05300	EPSON爱普生	SG-210SCBA	32.000000 MHz	CMOS
X1G004591A05700	EPSON爱普生	SG-210SCBA	6.780000 MHz	CMOS
X1G004591A05800	EPSON爱普生	SG-210SCBA	48.000000 MHz	CMOS
X1G004591A05900	EPSON爱普生	SG-210SCBA	10.000000 MHz	CMOS
X1G004591A06000	EPSON爱普生	SG-210SCBA	10.000000 MHz	CMOS
X1G004591A06100	EPSON爱普生	SG-210SCBA	11.059200 MHz	CMOS
X1G004591A06300	EPSON爱普生	SG-210SCBA	2.000000 MHz	CMOS
X1G004591A06400	EPSON爱普生	SG-210SCBA	20.000000 MHz	CMOS
X1G004591A06500	EPSON爱普生	SG-210SCBA	33.300000 MHz	CMOS
X1G004591A06600	EPSON爱普生	SG-210SCBA	5.000000 MHz	CMOS
X1G004591A06700	EPSON爱普生	SG-210SCBA	27.000000 MHz	CMOS
X1G004591A06800	EPSON爱普生	SG-210SCBA	12.288000 MHz	CMOS
X1G004591A06900	EPSON爱普生	SG-210SCBA	14.000000 MHz	CMOS
X1G004591A07100	EPSON爱普生	SG-210SCBA	6.790000 MHz	CMOS
X1G004591A07200	EPSON爱普生	SG-210SCBA	8.000000 MHz	CMOS
X1G004591A07300	EPSON爱普生	SG-210SCBA	30.000000 MHz	CMOS
X1G004591A07400	EPSON爱普生	SG-210SCBA	26.000000 MHz	CMOS
X1G004591A07500	EPSON爱普生	SG-210SCBA	38.400000 MHz	CMOS
X1G004591A07600	EPSON爱普生	SG-210SCBA	50.000000 MHz	CMOS
X1G004591A07700	EPSON爱普生	SG-210SCBA	7.904000 MHz	CMOS
X1G004591A07800	EPSON爱普生	SG-210SCBA	12.288000 MHz	CMOS
X1G004591A08100	EPSON爱普生	SG-210SCBA	40.000000 MHz	CMOS
X1G004591A08200	EPSON爱普生	SG-210SCBA	16.000000 MHz	CMOS
X1G004591A60200	EPSON爱普生	SG-210SCBA	11.059200 MHz	CMOS
