首页进口晶振 Cardinal晶振欧美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS输出振荡器6G应用

欧美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS输出振荡器6G应用

产品型号：37653465
频率：26.000MHz
尺寸：13.2 x 13.2 x 5.6mm
产品介绍：欧美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS输出振荡器6G应用，欧美进口晶振，Cardinal卡迪纳尔晶振，型号：CPPL4系列，编码为CPPLC4LTA5BR26.0TS，尺寸为：13.2x1...

欧美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS输出振荡器6G应用，欧美进口晶振，Cardinal卡迪纳尔晶振，型号：CPPL4系列，编码为CPPLC4LTA5BR26.0TS，尺寸为：13.2x13.2x5.6mm金属密封件封装，频率为：26.000MHz，石英晶振，插件晶振，石英晶体振荡器，无铅环保晶振，进口晶振，CMOS输出（将与TTL设备接口）启用/禁用功能（可选备用功能）3.3V标称电源电压半DIP包工厂编程，应用于：驱动A/D，D/As，FPGAs数字视频，以太网，GbE医疗，存储区域，网络COTS，宽带接入，超声波/SDH/DWDM，测试和测量。

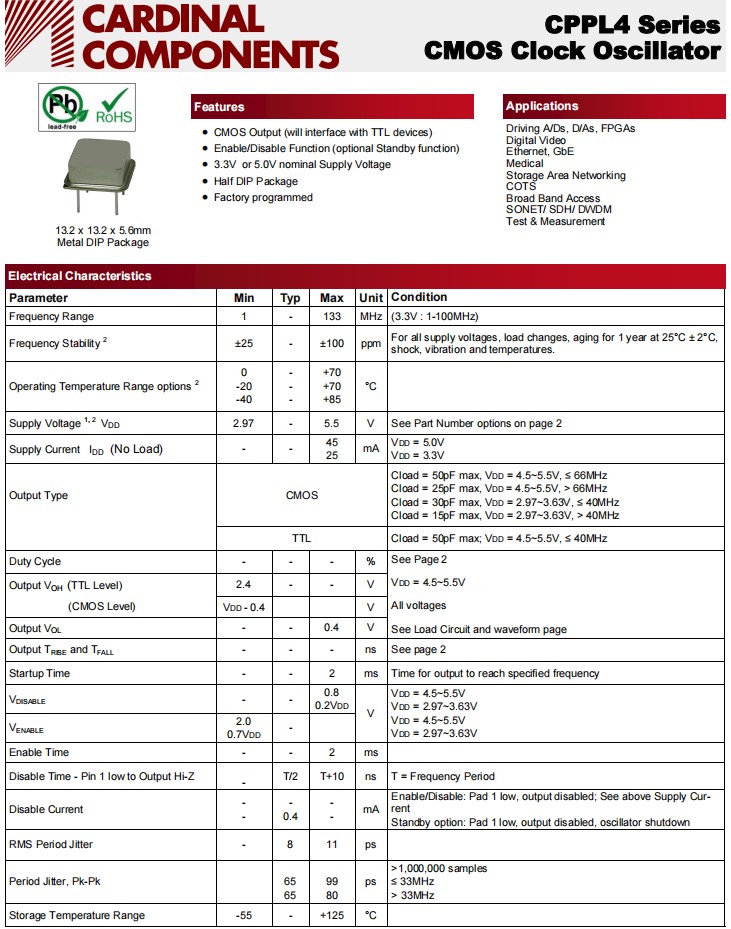

欧美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS输出振荡器6G应用，参数表

Electrical Characteristics CPPL4参数说明
Parameter			Min	Typ	Max	Unit	Condition
Frequency Range			1	-	133	MHz	(3.3V : 1-100MHz)
Frequency Stability	2		±25	-	±100	ppm	For all supply voltages, load changes, aging for 1 year at 25°C ± 2°C, shock, vibration and temperatures.
			0	-	70
Operating Temperature Range options		2	-20	-	70	°C
			-40	-	85
Supply Voltage 1, 2 VDD			2.97	-	5.5	V	See Part Number options on page 2
Supply Current IDD (No Load)			-	-	45	mA	VDD = 5.0V
Supply Current IDD (No Load)			-	-	25	mA	VDD = 3.3V
							Cload = 50pF max, VDD = 4.5~5.5V, ≤ 66MHz
Output Type			CMOS				Cload = 25pF max, VDD = 4.5~5.5V, > 66MHz
							Cload = 30pF max, VDD = 2.97~3.63V, ≤ 40MHz
							Cload = 15pF max, VDD = 2.97~3.63V, > 40MHz
			TTL				Cload = 50pF max; VDD = 4.5~5.5V, ≤ 40MHz
Duty Cycle			-	-	-	%	See Page 2
Output VOH (TTL Level)			2.4	-	-	V	VDD = 4.5~5.5V
(CMOS Level)			VDD - 0.4			V	All voltages
Output VOL			-	-	0.4	V	See Load Circuit and waveform page
Output TRISE and TFALL			-	-	-	ns	See page 2
Startup Time			-	-	2	ms	Time for output to reach specified frequency
VDISABLE			-	-	0.8 0.2VDD		VDD = 4.5~5.5V
						V	VDD = 2.97~3.63V
							VDD = 4.5~5.5V
VENABLE			2.0 0.7VDD	-			VDD = 2.97~3.63V
Enable Time			-	-	2	ms
Disable Time - Pin 1 low to Output Hi-Z				T/2	T+10	ns	T = Frequency Period
Disable Time - Pin 1 low to Output Hi-Z			-	T/2	T+10	ns	T = Frequency Period
Disable Current			-	-	-	mA	Enable/Disable: Pad 1 low, output disabled; See above Supply Cur- rent
Disable Current			-	0.4	-	mA	Standby option: Pad 1 low, output disabled, oscillator shutdown
RMS Period Jitter			-	8	11	ps
Period Jitter, Pk-Pk				65	99	ps	>1,000,000 samples
				65	80		≤ 33MHz
							> 33MHz
Storage Temperature Range			-55	-	125	°C

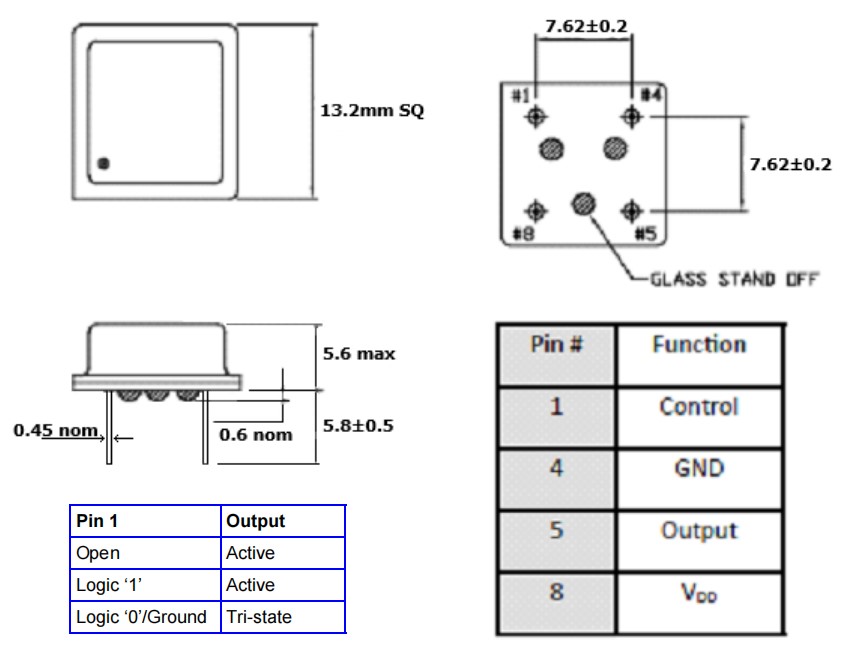

欧美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS输出振荡器6G应用，尺寸图

欧美Cardinal晶振/CPPLC4LTA5BR26.0TS/CMOS输出振荡器6G应用

特征：

CMOS输出（将与TTL设备接口）

启用/禁用功能（可选待机功能）

3.3V或5.0V标称电源电压

半DIP封装

工厂编程 有源晶振

应用程序：

驱动A/D、D/A、FPGA

数字视频

以太网，GbE

医学的

存储区域网络

帆布床

宽带接入

SONET/SDH/DWDM网络

测试和测量
