AKER超小型晶振,CTS1-32.768-12.5-20-X-R,智能手机晶振

产品型号：93048627
频率：32.768KHz
尺寸：1.6x1.0mm
产品介绍：AKER超小型晶振,CTS1-32.768-12.5-20-X-R,智能手机晶振,1610mm谐振器,可穿戴设备晶振，AKER安碁晶振，型号：CTS1系列晶振，编码为：CTS1-32.768-12.5-20-X-R，频率...

AKER超小型晶振,CTS1-32.768-12.5-20-X-R,智能手机晶振,1610mm谐振器,可穿戴设备晶振，AKER安碁晶振，型号：CTS1系列晶振，编码为：CTS1-32.768-12.5-20-X-R，频率为：32.768KHz，小体积晶振尺寸：1.6x1.0mm超小型封装，两脚贴片晶振，石英晶振，1610晶振，音叉晶体，无源晶振，手表晶体，SMD晶振，石英晶体谐振器，无铅晶振，12.5pF负载电容，±20PPM频率公差，-40至+85°C温度范围。石英贴片晶振，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：通讯设备，钟表电子晶振，时钟晶振，无线蓝牙，智能手机，电脑主板，数字显示设备，电话机，智能家居，仪器仪表设备等应用。

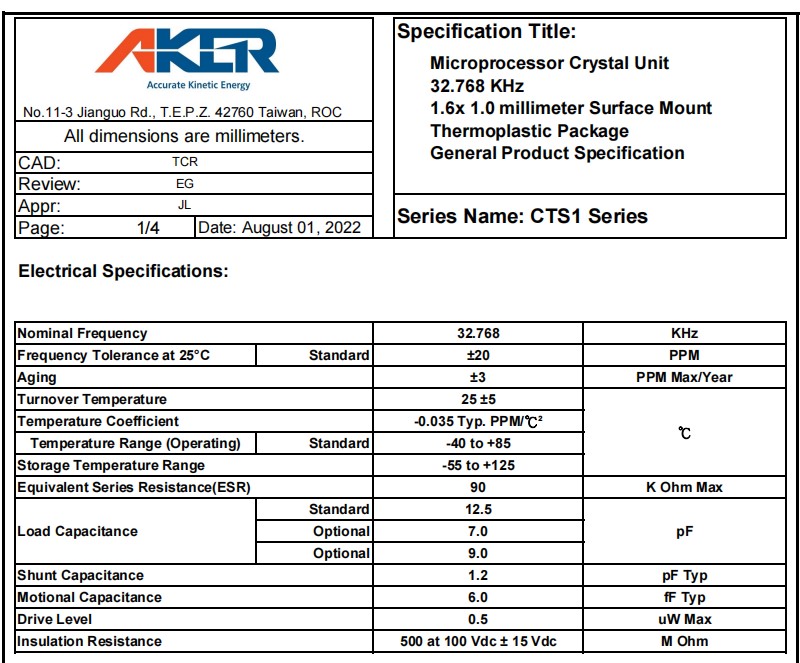

AKER超小型晶振,CTS1-32.768-12.5-20-X-R,智能手机晶振,1610mm谐振器,可穿戴设备晶振,参数表

Nominal Frequency		32.768	KHz
Frequency Tolerance at 25°C	Standard	±20	PPM
Aging		±3	PPM Max/Year
Turnover Temperature		25 ±5	℃
Temperature Coefficient		-0.035 Typ. PPM/℃²
Temperature Range (Operating)	Standard	-40 to +85
Storage Temperature Range		-55 to +125
Equivalent Series Resistance(ESR)		90	K Ohm Max
Load Capacitance	Standard	12.5	pF
	Optional	7.0
	Optional	9.0
Shunt Capacitance		1.2	pF Typ
Motional Capacitance		6.0	fF Typ
Drive Level		0.5	uW Max
Insulation Resistance		500 at 100 Vdc ± 15 Vdc	M Ohm

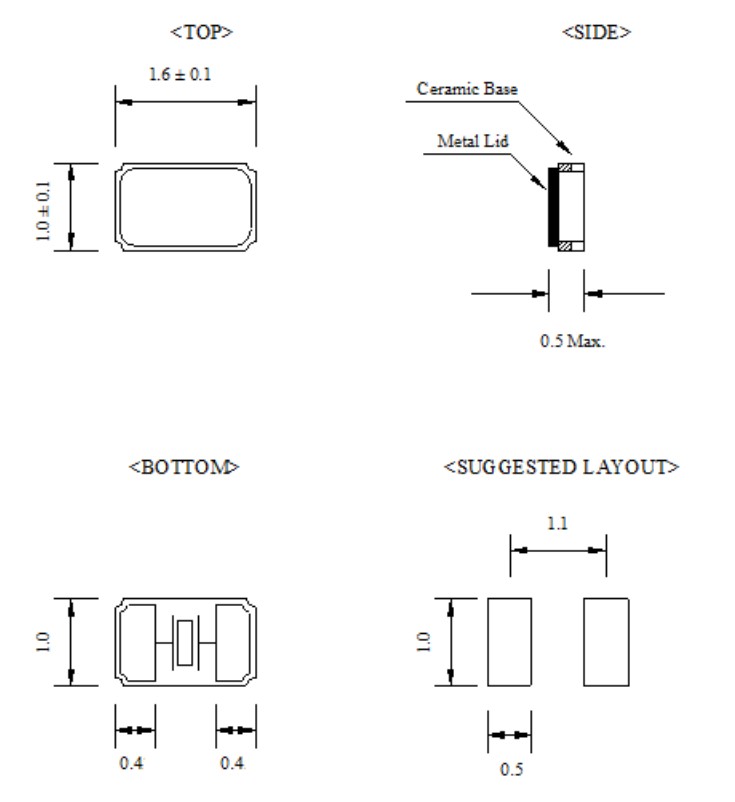

AKER超小型晶振,CTS1-32.768-12.5-20-X-R,智能手机晶振,1610mm谐振器,可穿戴设备晶振,尺寸图

产品编码	品牌	描述	系列	频率
C2E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C2E	24 MHz
C2E-16.000-12-3030-X-R	Aker晶振	CRYSTAL 16.0000MHZ 12PF SMD	C2E	16 MHz
C2E-25.000-10-3030-X-R	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz
C2E-16.000-8-1530-X-R	Aker安碁	CRYSTAL 16.0000MHZ 8PF SMD	C2E	16 MHz
C1E-32.000-10-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 10PF SMD	C1E	32 MHz
C1E-25.000-20-2030-R	Aker安碁	CRYSTAL 25.0000MHZ 20PF SMD	C1E	25 MHz
C1E-24.000-10-1015-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz
C1E-24.000-10-1010-R	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz
C1E-32.000-8-1515-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C1E	32 MHz
C16-32.000-8-3030-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C16	32 MHz
C16-26.000-8-1520-R	Aker安碁	CRYSTAL 26.0000MHZ 8PF SMD	C16	26 MHz
C2E-12.000-18-1020-R	Aker安碁	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz
C16-32.000-8-1515-X-R	Aker安碁	CRYSTAL 32MHZ 8PF SMD	C16	32 MHz
C2E-12.000-18-1020-X-R	Aker安碁	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz
C2E-12.000-8-2050-X1-R	Aker安碁	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C2E X1	12 MHz
C16-96.000-8-1520-X2-R	Aker安碁	CRYSTAL 96MHZ 8PF SMD	-	96 MHz
C1E-76.800-10-1012-X-M	Aker安碁	CRYSTAL 76.8MHZ 10PF SMD	C1E	76.8 MHz
C1E-80.000-10-1015-X-M	Aker安碁	CRYSTAL 80MHZ 10PF SMD	C1E	80 MHz
C1E-76.800-8-1012-X-M	Aker安碁	CRYSTAL 76.8MHZ 8PF SMD	C1E	46.8 MHz
C1E-80.000-8-1015-X-M	Aker安碁	CRYSTAL 80MHZ8PF SMD	C1E	80 MHz
C16-26.000-8-1010-R	Aker安碁	CRYSTAL 26MHZ 8PF SMD	C16	26 MHz
C2E-12.000-10-2050-X1-R	Aker安碁	CRYSTAL 12MHZ 10PF SMD AEC-Q200	C2E X1	12 MHz
C1E-96.000-8-1216-X2-R	Aker安碁	CRYSTAL 96MHZ 8PF SMD	C1E X2	96 MHz
C2E-16.000-10-1010-R	进口晶振	CRYSTAL 16.0000MHZ 10PF SMD	C2E	16 MHz
C1E-24.000-10-1015-M	Aker安碁	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz
C2E-25.000-10-3030-X-M	Aker安碁	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz
C2E-48.000-10-1020-X-R	Aker安碁	CRYSTAL 48MHZ SMD FOR WIFI	C2E	48 MHz
C1E-96.000-9.9-1216-X2-R	Aker安碁	CRYSTAL 96MHZ 9.9PF SMD	C1E	96 MHz
C1E-52.000-8-1012-X-M	Aker安碁	CRYSTAL 52MHZ 10PF SMD	C1E	52 MHz
C1E-52.000-10-1012-X-M	Aker安碁	CRYSTAL 52MHZ 8PF SMD	C1E	52 MHz
C2E-20.000-10-2050-X1-R	Aker安碁	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C2E X1	20 MHz
C1E-32.000-8-1015-X-R	Aker安碁	CRYSTAL 32.0000MHZ 8PF SMD	C1E	32 MHz
C1E-40.000-8-1030-A-X2-R	Aker安碁	UWB CRYSTAL, 2016, 40.000MHZ, 8P	C1E Auto	40 MHz
C1E-40.000-8-1550-X1-R	Aker安碁	UWB CRYSTAL, 2016, 40.0000MHZ, 8	C1E	40 MHz
C1E-16.000-10-1520-X-R	Aker安碁	UWB CRYSTAL, 2016, 16.000MHZ, 10	C1E	16 MHz
C1E-55.200-8-1035-A-X2-R	Aker安碁	UWB CRYSTAL, 2016, 55.200MHZ, 8P	C1E Auto	55.2 MHz
C16-40.000-8-1020-A-X-R	Aker安碁	UWB CRYSTAL, 1612, 40.0000MHZ, 8	C16 Auto	40 MHz
C1E-48.000-8-1020-X2-M	Aker安碁	CRYSTAL 48MHZ 8PF SMD	C1E	48 MHz
C1E-48.000-10-1020-X2-M	Aker安碁	CRYSTAL 48MHZ 10PF	C1E	48 MHz
C1E-40.000-8-1050-A-X1-R	Aker安碁	CRYSTAL, 1612, 40.000MHZ, 8PF, S	C1E Auto	40 MHz
C1E-32.000-8-1550-A-X1-R	Aker安碁	CRYSTAL, 1612, 32.000MHZ, 8PF, S	C1E Auto	32 MHz
C1E-24.000-8-1050-A-X1-R	Aker安碁	CRYSTAL, 1612, 24.000MHZ, 8PF, S	C1E Auto	24 MHz
C1E-25.000-12-1050-A-X1-R	Aker安碁	CRYSTAL, 1612, 25.000MHZ, 12PF,	C1E Auto	25 MHz
C1E-16.000-12-20100-A-X1-R	Aker安碁	CRYSTAL, 2016, 16.000MHZ, 12PF,	C1E Auto	16 MHz
C2E-19.200-13-2030-X-R	Aker安碁	CRYSTAL 19.2MHz 13PF SMD	C2E	19.2 MHz
