- 产品型号：25194047
- 频率：12MHz
- 尺寸：2.5x2.0mm
- 产品介绍：加高石英晶体谐振器,X2B012000DC1H-X,HSX221SA安防设备晶振,四脚贴片晶振,通讯设备6G晶振，HELE加高晶振，型号：HSX221SA，编码为：X2B012000DC1H-X，小体积晶振尺...
-

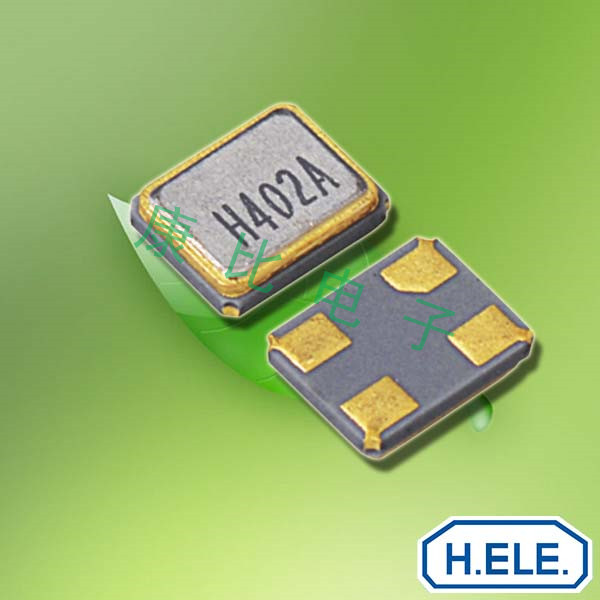

加高石英晶体谐振器,X2B012000DC1H-X,HSX221SA安防设备晶振
.jpg)
.jpg)
加高石英晶体谐振器,X2B012000DC1H-X,HSX221SA安防设备晶振,四脚贴片晶振,通讯设备6G晶振，HELE加高晶振，型号：HSX221SA，编码为：X2B012000DC1H-X，小体积晶振尺寸：2.5x2.0mm封装，石英晶体谐振器，四脚贴片晶振，SMD石英晶体，无源晶振，石英晶振，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。石英晶振被广泛用于：通讯设备，无线网络，蓝牙模块，可穿戴设备，小型便捷式设备，智能手机，平板电脑，数码电子，智能家居，安防设备等应用。
.jpg)

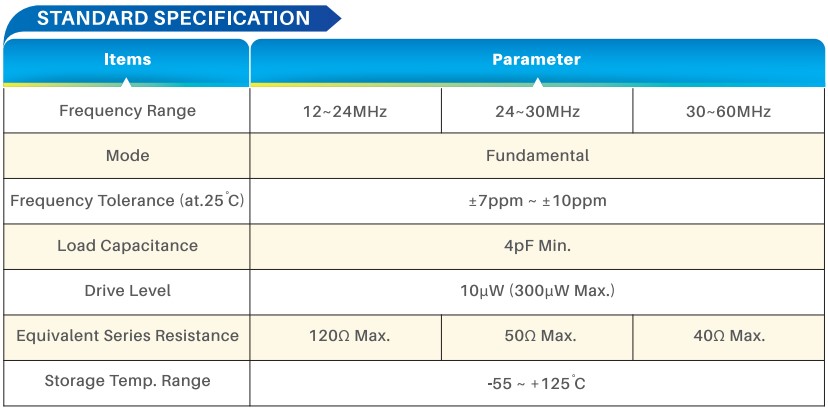

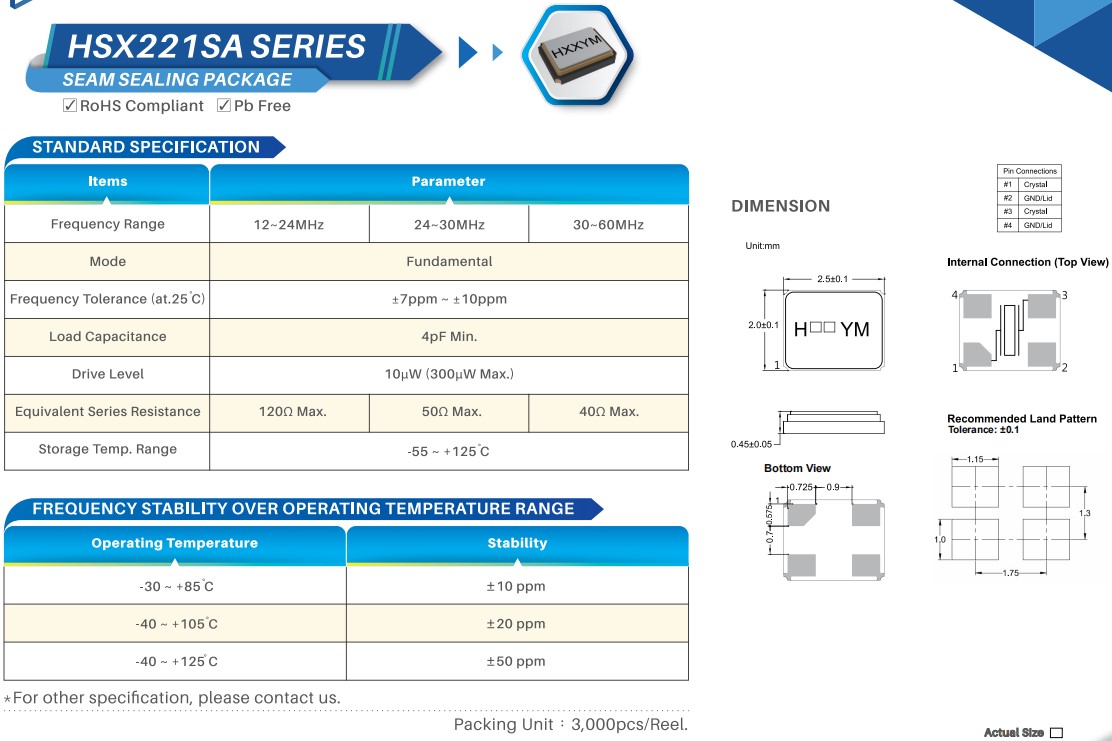

加高石英晶体谐振器,X2B012000DC1H-X,HSX221SA安防设备晶振,四脚贴片晶振,通讯设备6G晶振，参数表
.jpg)

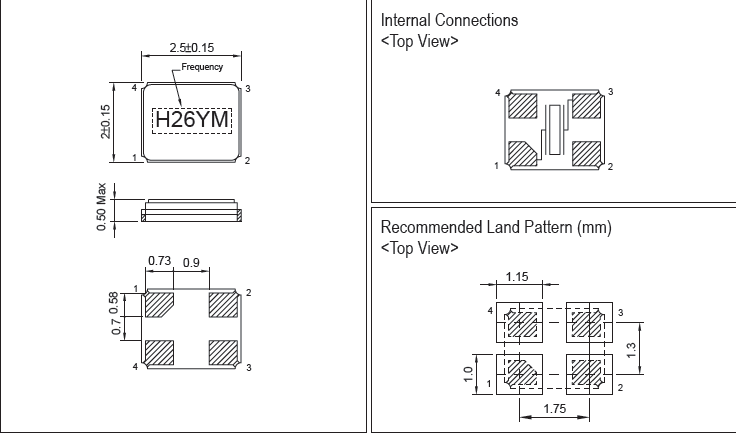

加高石英晶体谐振器,X2B012000DC1H-X,HSX221SA安防设备晶振,四脚贴片晶振,通讯设备6G晶振，尺寸图
加高石英晶体谐振器,X2B012000DC1H-X,HSX221SA安防设备晶振,四脚贴片晶振,通讯设备6G晶振
2520mm体积非常小的SMD晶振器件,是民用小型无线数码产品的最佳选择,小体积的晶振被应用于,手机蓝牙,GPS定位系统,无线通讯集,高频率的稳定性能,非常好的减少电磁干扰的影响,是民用无线数码产品最好的选择,符合RoHS/无铅.
| 编码 | 贴片晶振 | 品牌 | 描述 |
| X2B026000M81H-HS | HSX221SA | HELE加高 | HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 |
| X2B016000BA1H-U | HSX221SA | HELE加高 | HSX221SA/16MHZ/10PF/10PPM/10PPM/ |
| X2B012000BC1H-U | HSX221SA | HELE加高 | HSX221SA/12MHZ/12PF/10PPM/20PPM/ |
| X2B040000BC1H-DHZ | HSX221SA | HELE加高 | HSX221SA/40MHZ/12PF/10PPM/10PPM/ |
| X2B012000DC1H-X | HSX221SA | HELE加高 | SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS |
| X2B016000B91H-HU | HSX221SA | HELE加高 | SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS |
| X2B027000BC1H-HU | HSX221SA | HELE加高 | SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS |
| X2B032000BC1H-HZ | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520_4P RoHS |
| X2B024000BC1HA-V | HSX221SA | HELE加高 | SMD Crystal Resonators SMD_2520-4P RoHS |
| X2B026000B91H-HZ | HSX221SA | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS |
| X2B026000B71HZ-HPR | HSX221SA | HELE加高 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS |
| X2B026000B71HZ | HSX221SA | HELE加高 | SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS |
| X2B040000BF1H-HZ | HSX221SA | HELE加高 | SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS |
| X2B024000BCIH-HV | HSX221SA | HELE加高 | SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS |
| X2B050000BC1H-V | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B040000BF1H-HT | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B030000BA1H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B91H-HR | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B038400BA1H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B040000B91H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B032000C81H-HU | HSX221SA | 加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B012000B91H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B030000BA1H-HW | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B91H-HV | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B026000BC1H-Z | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B016000BC1H-HV | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B019200BZ1H-CHZ | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B91H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000L91H-S | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B030000FA1H-X | HSX221SA | HELE加高 | SMD Crystal Resonators SMD-2520 RoHS |
| X2B024000FK1H-V | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B026000B81H-CHZ | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B02863ADC1H-W | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B032000D81H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
| X2B025000BI1H-U | HSX221SA | HELE加高 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS |
