ECS通讯晶振,ECS-100AX-147.4,ECS-100X时钟振荡器6G晶振

产品型号：37345237
频率：14.7456MHz
尺寸：20.86mm x 13.20mm

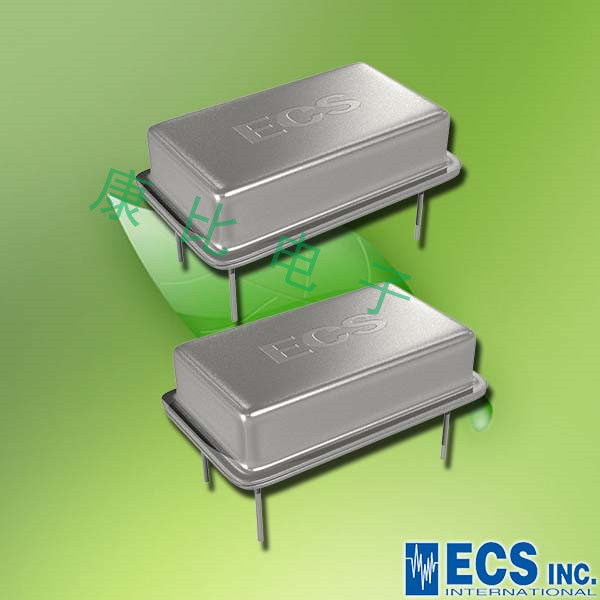

产品介绍：ECS通讯晶振,ECS-100AX-147.4,ECS-100X时钟振荡器6G晶振，美国ECS伊西斯晶振，型号ECS-100X，编码为ECS-100AX-147.4，频率为：14.7456MHz，尺寸为：20.86mmx13.20...

ECS通讯晶振,ECS-100AX-147.4,ECS-100X时钟振荡器6G晶振，美国ECS伊西斯晶振，型号ECS-100X，编码为ECS-100AX-147.4，频率为：14.7456MHz，尺寸为：20.86mm x 13.20mm，有源晶振，石英晶体振荡器，ECS-100X时钟振荡器完全兼容TTL电路。带7针外壳接地的金属包装作为屏蔽，以减少辐射。10 TTL输出负载，低成本，宽频率范围，行业标准尺寸，电阻焊接包裹，3.3V操作（可选），符合无铅/RoHS标准。应用于移动通讯设备，无线网络，蓝牙模块，物联网，汽车电子设备，医疗设备，数码电子等应用。

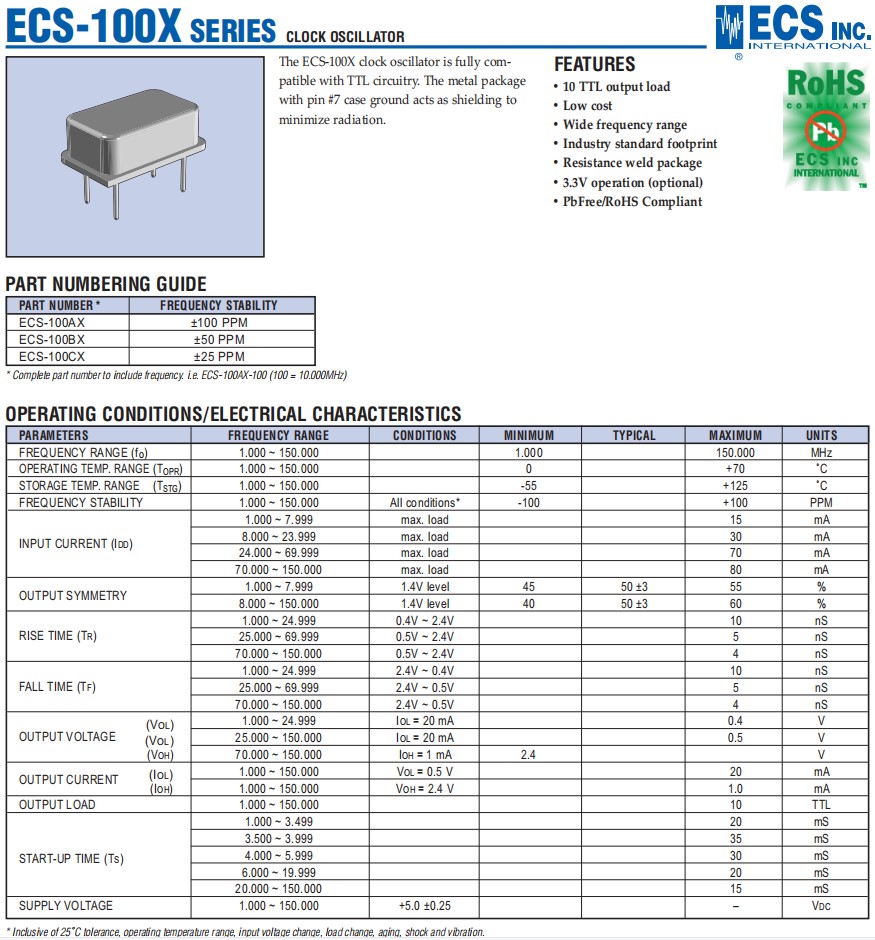

ECS通讯晶振,ECS-100AX-147.4,ECS-100X时钟振荡器6G晶振，参数表

PARAMETERS		FREQUENCY RANGE	CONDITIONS	MINIMUM	TYPICAL	MAXIMUM	UNITS
FREQUENCY RANGE (fo)		1.000 ~ 150.000		1		150	MHz
OPERATING TEMP. RANGE (TOPR)		1.000 ~ 150.000		0		70	℃
STORAGE TEMP. RANGE (TSTG)		1.000 ~ 150.000		-55		125	℃
FREQUENCY STABILITY		1.000 ~ 150.000	All conditions*	-100		100	PPM
		1.000 ~ 7.999	max . load			15	mA
INPUT CURRENT (IDD)		8.000 ~ 23.999	max . load			30	mA
		24.000 ~ 69.999	max . load			70	mA
		70.000 ~ 150.000	max . load			80	mA
OUTPUT SYMMETRY		1.000 ~ 7.999	1 .4V level	45	50 ±3	55	%
OUTPUT SYMMETRY		8.000 ~ 150.000	1 .4V level	40	50 ±3	60	%
RISE TIME (TR)		1.000 ~ 24.999	0.4V ~ 2.4V			10	nS
		25.000 ~ 69.999	0.5V ~ 2.4V			5	nS
		70.000 ~ 150.000	0.5V ~ 2.4V			4	nS
FALL TIME (TF)		1.000 ~ 24.999	2.4V ~ 0.4V			10	nS
		25.000 ~ 69.999	2.4V ~ 0.5V			5	nS
		70.000 ~ 150.000	2.4V ~ 0.5V			4	nS
OUTPUT VOLTAGE	(VOL )	1.000 ~ 24.999	IOL = 20 mA			0.4	V
	(VOL )	25.000 ~ 150.000	IOL = 20 mA			0.5	V
	(VOH)	70.000 ~ 150.000	IOH = 1 mA	2.4			V
OUTPUT CURRENT	(IOL )	1.000 ~ 150.000	VOL = 0.5 V			20	mA
OUTPUT CURRENT	(IOH)	1.000 ~ 150.000	VOH = 2.4 V			1	mA
OUTPUT LOAD		1.000 ~ 150.000				10	TTL
		1.000 ~ 3.499				20	mS
START-UP TIME (TS)		3.500 ~ 3.999				35	mS
		4.000 ~ 5.999				30	mS
		6.000 ~ 19.999				20	mS
		20.000 ~ 150.000				15	mS
SUPPLY VOLTAGE		1.000 ~ 150.000	+5.0 ±0.25			–	VDC

ECS通讯晶振,ECS-100AX-147.4,ECS-100X时钟振荡器6G晶振，尺寸图

ECS通讯晶振,ECS-100AX-147.4,ECS-100X时钟振荡器6G晶振

特性：

•10 TTL输出负载

•低成本

•频率范围广石英晶振

•行业标准占地面积

•电阻焊包

•3.3V操作（可选）

•无铅/符合RoHS

原厂代码	品牌	型号	频率	工作温度	石英晶体振荡器
ECS-100AX-040	ECS晶振	ECS-100X	4MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-200	ECS晶振	ECS-100X	20MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-160	ECS晶振	ECS-100X	16MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-500	ECS晶振	ECS-100X	50MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-010	ECS晶振	ECS-100X	1MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-147.4	ECS晶振	ECS-100X	14.7456MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-640	ECS晶振	ECS-100X	64MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-250	ECS晶振	ECS-100X	25MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-100	ECS晶振	ECS-100X	10MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-110.5	ECS晶振	ECS-100X	11.0592MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-320	ECS晶振	ECS-100X	32MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-060	ECS晶振	ECS-100X	6MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-098.3	ECS晶振	ECS-100X	9.8304MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-480	ECS晶振	ECS-100X	48MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-080	ECS晶振	ECS-100X	8MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-018	ECS晶振	ECS-100X	1.8432MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-020	ECS晶振	ECS-100X	2MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-036	ECS晶振	ECS-100X	3.6864MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-184	ECS晶振	ECS-100X	18.432MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-035	ECS晶振	ECS-100X	3.579545MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-300	ECS晶振	ECS-100X	30MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-061	ECS晶振	ECS-100X	6.144MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-143	ECS晶振	ECS-100X	14.31818MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-012.2	ECS晶振	ECS-100X	1.2288MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-073	ECS晶振	ECS-100X	7.3728MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-400	ECS晶振	ECS-100X	40MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
ECS-100AX-196.6	ECS晶振	ECS-100X	19.6608MHz	0°C ~ 70°C	0.821" L x 0.520" W (20.86mm x 13.20mm)
