首页进口晶振 SKYWORKS晶振思佳讯LVDS输出贴片晶振,540BAA122M880BBGR,Si540导航仪晶振

思佳讯LVDS输出贴片晶振,540BAA122M880BBGR,Si540导航仪晶振

产品型号：90782073
频率：122.88 MHz
尺寸：5.0x3.2mm

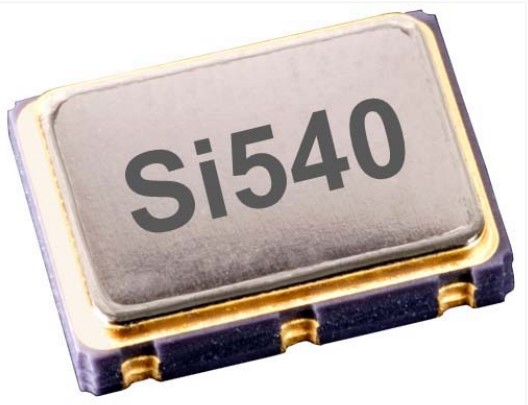

产品介绍：思佳讯LVDS输出贴片晶振,540BAA122M880BBGR,Si540导航仪晶振，进口晶振，Skyworks思佳讯晶振，型号：Si540，编码为：540BAA122M880BBGR，频率为：122.88MHz，小体...

思佳讯LVDS输出贴片晶振,540BAA122M880BBGR,Si540导航仪晶振，进口晶振，Skyworks思佳讯晶振，型号：Si540，编码为：540BAA122M880BBGR，频率为：122.88 MHz，小体积晶振尺寸：5.0x3.2mm封装，六脚贴片晶振，LVDS输出差分晶体振荡器，石英晶振，有源晶振，差分晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，高精度，高性能等特点。应用于：100G/200G/400G OTN，10G/40G/100G光学以太网，3G-SDI/12G-SDI/24G-SDI广播视频，服务器、交换机、存储、NIC、搜索加速，测试和测量，时钟和数据恢复，FPGA/ASIC时钟等应用。

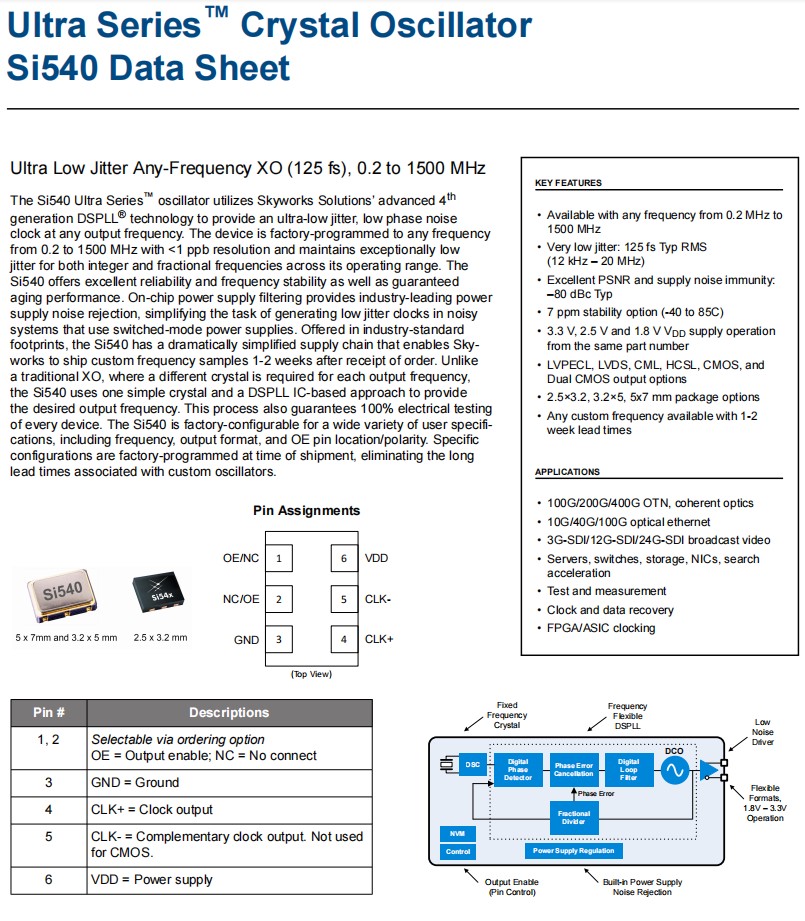

Si540超系列™振荡器利用天空解决方案先进的第四代DSPLL®技术，在任何输出频率提供超低抖动、低相位噪声时钟。该设备被工厂编程到从0.2到1500 MHz的任何频率，分辨率为<1 ppb，并在其工作范围内对整数和分数频率保持异常低的抖动。Si540石英晶体振荡器提供了卓越的可靠性和频率稳定性，以及保证老化性能。片上电源滤波提供了行业领先的电源噪声抑制，简化了在使用切换模式电源的有噪声系统中产生低抖动时钟的任务。Si540具有行业标准的足迹，有一个大大简化的供应链，使Skyworks能够在收到订单1-2周后运送定制频率样品。与传统的XO不同，每个输出频率都需要不同的晶体，Si540使用一个简单的晶体和一种基于DSPLL ic的方法来提供所需的输出频率。这个过程也保证了每个设备的100%的电气测试。Si540可在工厂上配置各种用户规格，包括频率、输出格式和OE引脚位置/极性。特定的配置是在装运时由工厂编程的，消除了与自定义振荡器相关的长交货时间。

思佳讯LVDS输出贴片晶振,540BAA122M880BBGR,Si540导航仪晶振,参数表

Parameter	Symbol	Test Condition/Comment	Min	Typ	Max	Unit
Temperature Range	TA		–40		85	ºC
Frequency Range	FCLK	LVPECL, LVDS, CML	122.88			MHz
		HCSL	0.2	—	400	MHz
		CMOS, Dual CMOS	0.2		250	MHz
Supply Voltage	V DD	3.3 V	3.135	3.3	3.465	V
		2.5 V	2.375	2.5	2.625	V
		1.8 V	1.71	1.8	1.89	V
Supply Current	IDD	LVPECL (output enabled)		100	145	mA
		LVDS/CML (output enabled)	—	75	111	mA
		HCSL (output enabled)		80	125	mA
		HCSL-Fast (output enabled)	—	88	137	mA
		CMOS (output enabled)		74	108	mA
		Dual CMOS (output enabled)	—	80	125	mA
		Tristate Hi-Z (output disabled)		64	100	mA
Temperature Stability		Frequency stability Grade A	–20	—	20	ppm
		Frequency stability Grade B	–10		10	ppm
		Frequency stability Grade C	–7	—	7	ppm
Total Stability1	F STAB	Frequency stability Grade A	–50		50	ppm
		Frequency stability Grade B	–25	—	25	ppm
		Frequency stability Grade C	–20		20	ppm
Rise/Fall Time (20% to 80% VPP)	TR/T F	LVPECL/LVDS/CML	—	—	350	ps
		CMOS / Dual CMOS (CL = 5 pF)	—	0.5	1.5	ns
		HCSL, FCLK>50 MHz	—	—	550	ps
		HCSL-Fast, FCLK>50 MHz	—	—	275	ps
Duty Cycle	DC	All formats	45	—	55	%
Output Enable (OE)2	VIH		0.7 × V DD			V
	VIL		—	—	0.3 × V DD	V
	TD	Output Disable Time, FCLK>10 MHz	—	—	3	µs
	TE	Output Enable Time, FCLK>10 MHz			20	µs
Powerup Time	tOSC	Time from 0.9 × V DD until output fre- quency (FCLK) within spec	—	—	10	ms

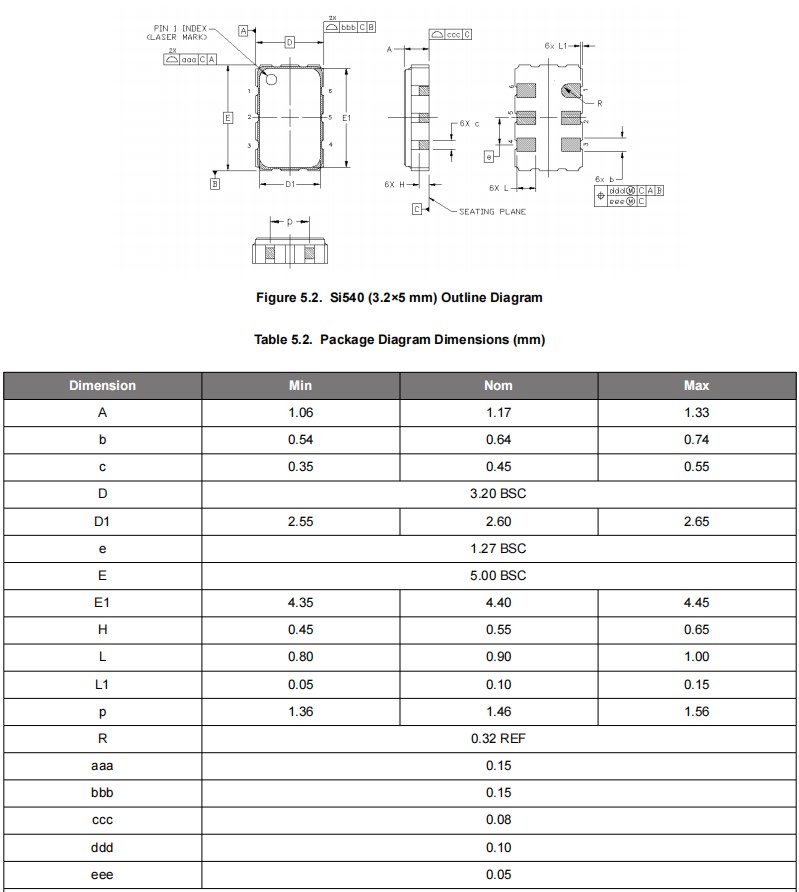

思佳讯LVDS输出贴片晶振,540BAA122M880BBGR,Si540导航仪晶振,尺寸图

思佳讯LVDS输出贴片晶振,540BAA122M880BBGR,Si540导航仪晶振

产品特点：

可用于0.2MHz至1500MHz的任何频率
极低抖动：125 fs典型RMS（12kHz–20MHz）
出色的PSNR和电源抗扰度：–80 dBc Typ
7ppm稳定性选项（-40至85摄氏度）
3.3V、2.5V和1.8V VDD电源操作来自相同的零件号
LVPECL、LVDS、CML、HCSL、CMOS和双CMOS输出选项
2.5×3.2、3.2×5、5x7 mm封装选项贴片晶振
任何自定义频率，交付周期为1-2周

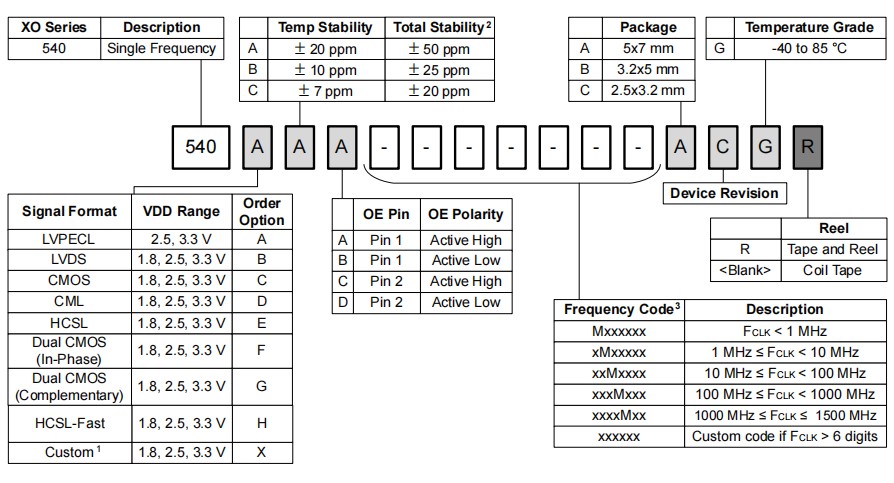

Si540 XO支持多种选项，包括频率、输出格式和OE引脚位置/极性，如下图所示。特定的设备配置在装运时被编程到部件中，样品可以在1-2周内提供。Skyworks解决方案提供了一个在线零件号配置实用程序来简化这个过程。

编码	晶振厂家	系列	频率	输出	电压
540BAA000274BBG	Skyworks晶振	Si540	322.265625 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA125M000BBG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA100M000BBG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA122M880BBG	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA000244BBG	Skyworks晶振	Si540	148.351648 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA000127BBG	Skyworks晶振	Si540	644.53125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA100M000BBGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA106M250BAGR	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA10M0000BAGR	Skyworks晶振	Si540	10 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA125M000BBGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA125M000BAGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA38M400BBGR	Skyworks晶振	Si540	38.4 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M0000BAGR	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BAGR	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA80M0000BAGR	Skyworks晶振	Si540	80 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA96M0000BAGR	Skyworks晶振	Si540	96 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC116M000BAGR	Skyworks晶振	Si540	116 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC70M6560BBGR	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA122M880BBGR	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA106M250BBGR	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA80M0000BBGR	Skyworks晶振	Si540	80 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000BCGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BBA100M000BCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BBA100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000CCGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA33M3330BCGR	Skyworks晶振	Si540	33.333 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000ABG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000BBG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000BBG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000ABGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000BBGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA125M000BBGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA100M000CCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BCG	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V ~ 3.3V
540BAA125M000BCG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BAA106M250BCG	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V ~ 3.3V
540BAA100M000BCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BAB20M0000CCG	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BCA25M0000CCG	Skyworks晶振	Si540	25 MHz	LVDS	1.8V ~ 3.3V
540BAA106M250BBG	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA80M0000BBG	Skyworks晶振	Si540	80 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BCGR	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V ~ 3.3V
540BAA125M000BCGR	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BAA100M000BCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BAA106M250BCGR	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V ~ 3.3V
540BCA25M0000CCGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V ~ 3.3V
540BAB20M0000CCGR	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BAA100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA106M250BAG	Skyworks晶振	Si540	106.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA10M0000BAG	Skyworks晶振	Si540	10 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA38M400BBG	Skyworks晶振	Si540	38.4 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M0000BAG	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA70M6560BAG	Skyworks晶振	Si540	70 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAA96M0000BAG	Skyworks晶振	Si540	96 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC116M000BAG	Skyworks晶振	Si540	116 MHz	LVDS	1.8V, 2.5V, 3.3V
540BAC70M6560BBG	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA74M2500CCGR	Skyworks晶振	Si540	74.25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA70M6560BCGR	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA122M880ABG	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ABG	Skyworks晶振	Si540	52 MHz	LVDS	2.5V
540BBA100M000BCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V ~ 3.3V
540BBA125M000BCG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V ~ 3.3V
540BBA125M000CCG	Skyworks晶振	Si540	125 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA100M000CCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BBA33M3330BCG	Skyworks晶振	Si540	33.333 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ACGR	Skyworks晶振	Si540	52 MHz	LVDS	1.8V ~ 3.3V
540BCD20M0000CCGR	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BCA100M000BCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCC25M0000CCGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA26M0000BCGR	Skyworks晶振	Si540	26 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCC25M0000ACGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCB100M000CCGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA100M000ACGR	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA122M880ABGR	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ABGR	Skyworks晶振	Si540	52 MHz	LVDS	2.5V
540BCA122M880ACG	Skyworks晶振	Si540	122.88 MHz	LVDS	1.8V ~ 3.3V
540BBA250M000ACG	Skyworks晶振	Si540	250 MHz	LVDS	1.8V ~ 3.3V
540BAA270M000ACG	Skyworks晶振	Si540	270 MHz	LVDS	1.8V ~ 3.3V
540BAA25M0000CCGR	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA52M0000ACG	Skyworks晶振	Si540	52 MHz	LVDS	1.8V ~ 3.3V
540BCD20M0000CCG	Skyworks晶振	Si540	20 MHz	LVDS	1.8V ~ 3.3V
540BCC25M0000CCG	Skyworks晶振	Si540	25 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA70M6560BCG	Skyworks晶振	Si540	70.656 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA100M000ACG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCB100M000CCG	Skyworks晶振	Si540	100 MHz	LVDS	1.8V, 2.5V, 3.3V
540BCA74M2500CCG	Skyworks晶振	Si540	74.25 MHz	LVDS	1.8V, 2.5V, 3.3V
