更多>>大真空KDSCrystal,DST210AC计时器晶振,1TJ125DR1AC054,尺寸2012mm,频率为32.768KHZ,负载电容12.5pF,精度20ppm,日本进口晶振,大真空进口晶振,日本KDS晶振,两脚贴片晶振,无源晶振,音叉晶体,水晶振动子,32.768KHZ音叉晶振,无源贴片晶振,32.768K贴片晶振,SMD晶体,石英贴片晶振,2012mm无源晶振,计时器专用晶振,时钟应用晶振,移动通信设备晶振,小型设备晶振,民用设备晶振,无线网络晶振,娱乐设备晶振,高可靠晶振,高质量晶振,低损耗晶振,低功耗晶振,具有良好的可靠性能。小型设备晶振
计时器晶振产品适合用于移动通信设备、民用设备,小型设备,无线网络,娱乐设备等领域。大真空KDSCrystal,DST210AC计时器晶振,1TJ125DR1AC054.
大真空KDSCrystal,DST210AC计时器晶振,1TJ125DR1AC054 参数表
|
|
---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
-0.04×10-6 |
|
|
|
|
|
|
|
|

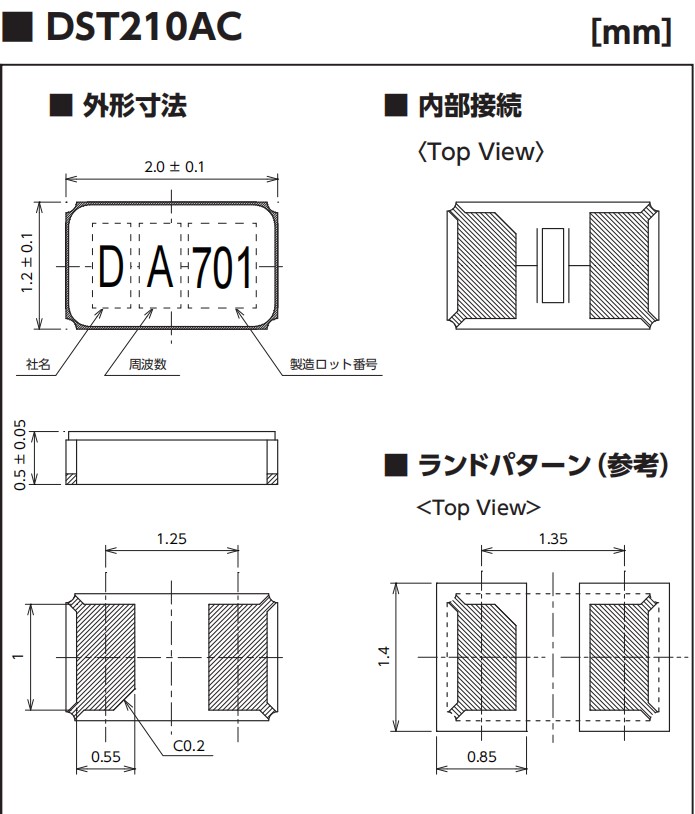

大真空KDSCrystal,DST210AC计时器晶振,1TJ125DR1AC054 尺寸图

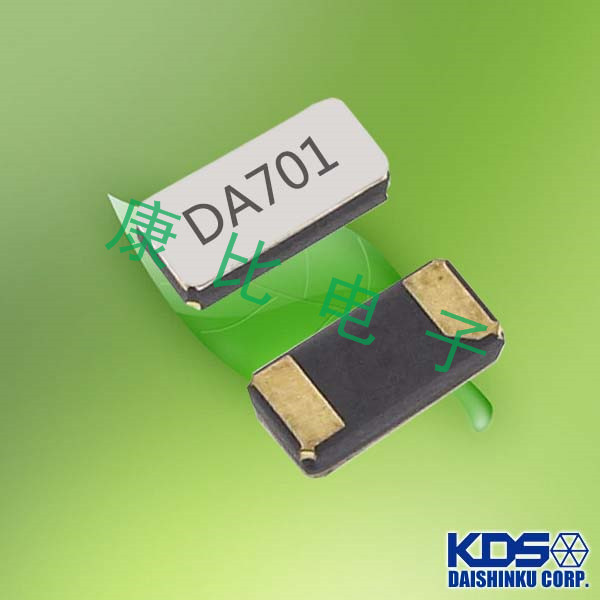

大真空KDSCrystal,DST210AC计时器晶振,1TJ125DR1AC054
产品特性
超小型薄型、SMD晶振2012尺寸、厚度0.5mm
采用陶瓷封装、金属盖,实现高精度、高可靠性
适用于移动通信设备、民用设备等多种用途
符合AEC-Q200标准
超小型薄型、SMD晶振2012尺寸、厚度0.5mm
采用陶瓷封装、金属盖,实现高精度、高可靠性
适用于移动通信设备、民用设备等多种用途
符合AEC-Q200标准
品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 | 温度 |
KDS晶振 | 1TJN090DP1A0004 | DST1210A | 1210 | 32.768K | 9PF | 20ppm | |
KDS晶振 | 1TJL070DR1A0009 | DST1610AL | 1610 | 32.768K | 7PF | 20ppm | |
KDS晶振 | 1TJH125DR1A0004 | DST1610A | 1610 | 32.768K | 12.5PF | 20ppm | |
KDS晶振 | 7BG03276A25 | DST1610A | 1610 | 32.768K | 12.5PF | 20ppm | |
KDS晶振 | 7BG03276A3C | DST1610A | 1610 | 32.768K | 12.5PF | 20ppm | |
KDS晶振 | 7BG03276A1X | DST1610A | 1610 | 32.768K | 7PF | 20ppm | |
KDS晶振 | 1TJH090DP1A0006 | DST1610A | 1610 | 32.768K | 9PF | 20ppm | |
KDS晶振 | 1TJ125DR1AC054 | DST210AC | 2012 | 32.768K | 12.5PF | 20ppm | |
KDS晶振 | 1TJF080DP1AA003 | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
KDS晶振 | 1TJF080DP1AI00P | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
KDS晶振 | 1TJF125DP1AI009 | DST310S | 3215 | 32.768k | 12.5PF | 20ppm | |
KDS晶振 | 1TJF090DP1AA00L | DST310S | 3215 | 32.768k | 9PF | 20ppm | |
KDS晶振 | 1TJF0SPDP1AA00G | DST310S | 3215 | 32.768k | 8PF | 20ppm | |
KDS晶振 | 1TJE090FR1AH00C | DST410S | 3215 | 32.768k | 9PF | 20ppm | |
KDS晶振 | 1TD125DHNS036 | DT-26 | 206 | 32.768k | 12.5PF | 20PPM | |
KDS晶振 | 1TD060DHNS014 | DT-26 | 206 | 32.768k | 6.0PF | 20PPM | |
KDS晶振 | 1TD075BHNS001 | DT-26 | 206 | 32.768k | 7.5PF | 10PPM | |
KDS晶振 | 1TD125BFNS001 | DT-26 | 206 | 32.768k | 12.5PF | 10PPM | |
KDS晶振 | 1TD1001HNS001 | DT-26 | 206 | 32.768k | 10.0PF | -6/+2PPM | |
KDS晶振 | 1TD1250HNS005 | DT-26 | 206 | 32.768k | 12.5PF | 30/40P | |
KDS晶振 | 1TD060DHNS006 | DT-26 | 206 | 32.768KHZ | 6PF | 20PPM | |
KDS晶振 | 1TD0701GNS002 | DT-26 | 206 | 32.768KHZ | 7PF | 20PPM | |
KDS晶振 | 1TD080DHNS004 | DT-26 | 206 | 32.768KHZ | 8PF | 20PPM | |
KDS晶振 | CFS20632768DZFT | CFS-206 | 206 | 32.768K | 12.5PF | 20ppm | |
KDS晶振 | 1TC125DFNS030 | DT-38 | 308 | 32.768k | 12.5PF | 20PPM | |
KDS晶振 | 1TC125DFNS004 | DT-38 | 308 | 32.768k | 12.5PF | 20PPM | |
KDS晶振 | 1TC125NFNS002 | DT-38 | 308 | 32.768k | 12.5PF | 1000PPM | |
KDS晶振 | 1TC125AFSS003 | DT-38 | 308 | 32.768k | 12.5PF | 5PPM | |
KDS晶振 | 1TC250E65 | DT-38 | 308 | 32.768k | 12.5PF | +12/+28PPM | |
KDS晶振 | 1TC125JHNS001 | DT-38 | 308 | 32.768KHZ | 12.5PF | 50PPM | |
KDS晶振 | 1TC125AFWS027 | DT-38 | 308 | 32.768KHZ | 12.5PF | 5PPM | |
KDS晶振 | 1TC070DFNS012 | DT-38 | 308 | 32.768KHZ | 7PF | 20PPM | |
KDS晶振 | DT-38 | 308 | 32.768KHZ | 12.5PF | 200P | ||
KDS晶振 | 1TJS060DJ4A739Q | DMX-26S | 8038 | 32.768K | 6PF | 20PPM | |
KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000M | 10PF | 20PPM | |
KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12M | 10PF | 20PPM | |
KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000M | 7PF | 20PPM | |
KDS晶振 | 1C707600CC1B | DSX530GA | 5032 | 7.600M | 10PF | 30PPM | |
KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000M | 7PF | 10PPM | |
KDS晶振 | 1ZCP37400AA0H | DSX211AL | 2016 | 37.400M | |||
KDS晶振 | 1ZZNAE38400AB0A | DSX211SH | 2016 | 38.400M | 10PF | 10PPM | |
KDS晶振 | 1ZZHAM24000BB0B | DSX1612S | 1612 | 24.000M | |||
KDS晶振 | 1ZZHAM26000AB0A | DSX1612S | 1612 | 26.000M | |||
KDS晶振 | 1ZZCAA27120CD0A | DSX211G | 2016 | 27.12M | |||
KDS晶振 | 1ZZNAE38400AA0C | DSX211SH | 2016 | 38.400M | |||
KDS晶振 | 7AE01200A00 | DSX221G | 2520 | 12.000M | 8PF | ||
KDS晶振 | 1ZCB26000AB0R | DSX221G | 2520 | 26.000M | |||
KDS晶振 | 1ZCT24000BD0A | DSX320GE | 3225 | 24.000M | |||
KDS晶振 | 1XTV36864HBA | DSA321SCM | 3225 | 36.864M | |||
KDS晶振 | 1CG12288EE1C | DSX630G | 6035 | 12.288M | |||
KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000M | 9PF | 10ppm | |
KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000M | 12PF | 15ppm | |
KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000M | 10PF | 30ppm | |
KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000M | 7PF | 10PPM | |
KDS晶振 | 1C208000BC0R | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
KDS晶振 | 7AD00800A1C | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
KDS晶振 | 1C208000CE0H | DSX321G | 3225 | 8.000M | 10PF | 20PPM | |
KDS晶振 | 1C208000EE0BL | DSX321G | 3225 | 8.000M | 12PF | 20PPM | 40~125度 |
KDS晶振 | 1ZCM080000EE0A汽车 | DSX320G | 3225 | 8.000M | 8PF | 20PPM | 40~85度 |
KDS晶振 | 1C208000EZ0G汽车 | DSX321G | 3225 | 8.000M | 8PF | 30PPM | 40~85度 |
KDS晶振 | 1N210000EE0X | DSX321G | 3225 | 10.000M | 10PF | ||
KDS晶振 | 7AD01200A1R | DSX321G | 3225 | 12.000M | 8PF | 20ppm | |
KDS晶振 | 1N212000BC0AK | DSX321G | 3225 | 12.000M | 10PF | 20ppm | |
KDS晶振 | 1C213080CC0A | DSX321G | 3225 | 13.080M | 8PF | ||
KDS晶振 | 1C232000ABOV | DSX321G | 3225 | 32.000M | 6PF | 10PPM | |
KDS晶振 | 1N254000BB0M | DSX321G | 3225 | 54.000M | 19PF | 15PPM | |
KDS晶振 | 1ZCM12000BC0A | DSX320G | 3225 | 12.000M | 8PF | ||
KDS晶振 | 1C216000EE0AW | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
KDS晶振 | 1N216000EE0BE | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
KDS晶振 | 1C216000BF0B | DSX321G | 3225 | 16.000M |
