首页进口晶振爱普生晶振X1G004801000200,24MHz,SG2016CAN,EPSON普通有源晶振

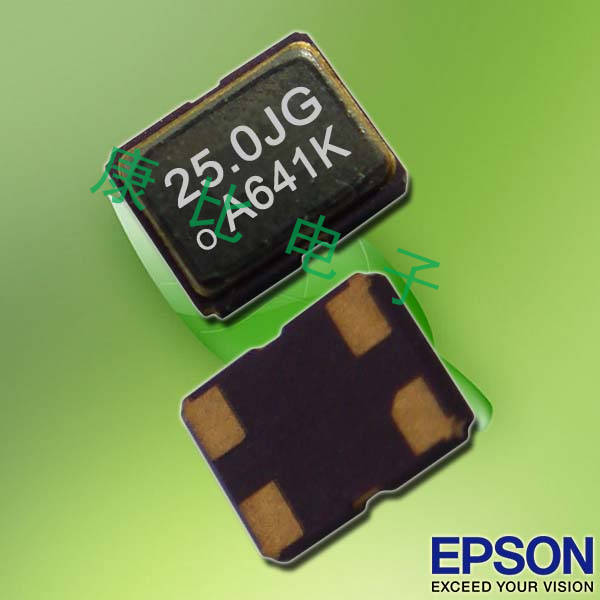

X1G004801000200,24MHz,SG2016CAN,EPSON普通有源晶振

产品型号：67557065
频率：24MHz
尺寸：2.0x1.6mm
产品介绍：X1G004801000200,24MHz,2016mm,EPSON普通有源晶振,SG2016CAN,CMOS输出晶振，日本进口晶振，EPSON爱普生晶振，型号：SG2016CAN，编码为：X1G004801000200，频率：2...

X1G004801000200,24MHz,SG2016CAN,EPSON普通有源晶振,2016mm,CMOS输出晶振，日本进口晶振，EPSON爱普生晶振，型号：SG2016CAN，编码为：X1G004801000200，频率：24.000MHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：2.0x1.6x0.7mm封装，四脚贴片晶振，石英晶振，普通有源晶振，CMOS输出晶振，SPXO晶体振荡器，SMD晶振，具有超小型，轻薄型，高品质晶振，耐热及耐环境等特点。这些SPXO具有低电流消耗，宽工作电压从1.6V到3.63V，宽工作温度范围从-40°C到85°C，此外可运行高达105°C。非常适合用于物联网、可穿戴设备、医疗、数据中心，工业自动化等各种应用。

X1G004801000200,24MHz,SG2016CAN,EPSON普通有源晶振,2016mm,CMOS输出晶振，产品特点：
● 频率范围：1.2MHz至75MHz
● 石英晶体振荡器
● 输出：CMOS
● 电源电压：1.6V至3.63V
●工作温度：-20°C至+70°C，-40°C至+105°C

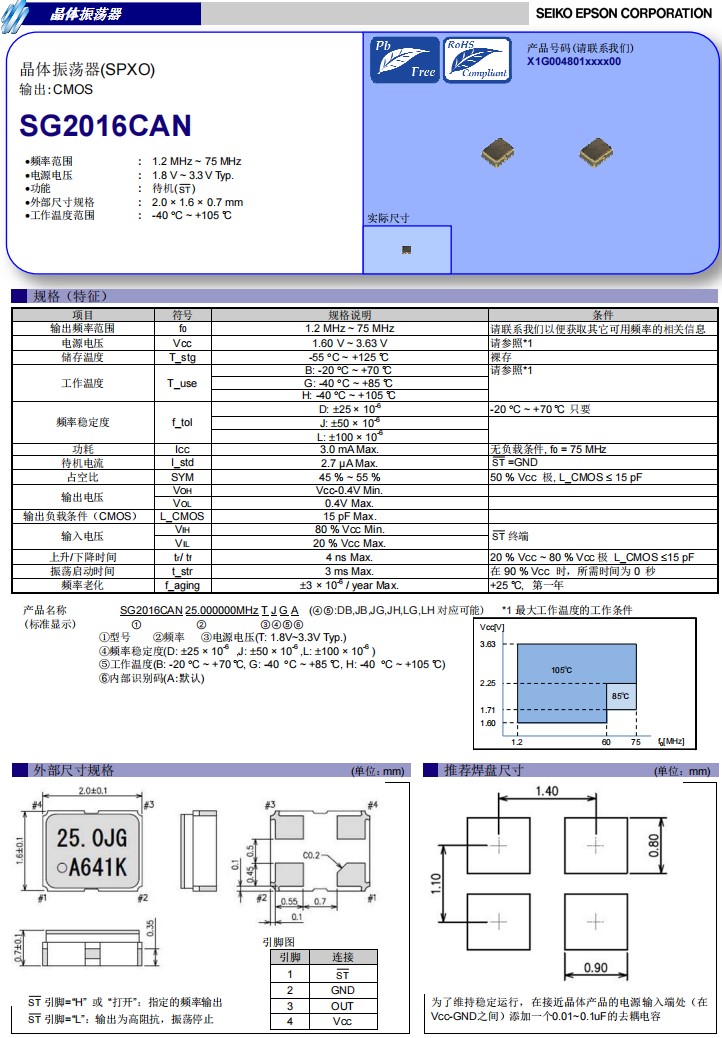

X1G004801000200,24MHz,SG2016CAN,EPSON普通有源晶振,2016mm,CMOS输出晶振,参数表

Item

Symbol

Specifications

Conditions / Remarks

Output frequency

24 MHz

Supply voltage

VCC

1.60 V to 3.63 V

4 MHz < fo < 50 MHz, T_use = +105 °C Max.

Refer to
Figure 1

1.71 V to 3.63 V

fo = 72 MHz, T_use = +85 °C Max.

2.25 V to 3.63 V

fo = 72 MHz, T_use = +105 °C Max.

Storage temperature

T_stg

-55 °C to +125 °C

SG2016CAN, SG3225CAN

-40 °C to +125 °C

All others

Operating temperature

T_use

-20 °C to +70 °C, -40 °C to +85 °C, -40 °C to +105 °C

See of figure *1

Frequency tolerance

f_tol

±25 × 10-6

-20 °C to +70 °C

±50 × 10-6

-40 °C to +85 °C, -40 °C to +105 °C

Current consumption

ICC

VCC = 1.8 V ± 10 %

VCC = 2.5 V ± 10 %

VCC = 3.3 V ± 10 %

1.5 mA Max.

1.6 mA Max.

1.8 mA Max.

No load condition, 4 MHz < fo < 20 MHz

1.8 mA Max.

2.0 mA Max.

2.2 mA Max.

No load condition, 20 MHz < fo < 40 MHz

2.1 mA Max.

2.4 mA Max.

2.6 mA Max.

No load condition, 40 MHz < fo < 50 MHz

2.4 mA Max.

2.8 mA Max.

3.0 mA Max.

No load condition, fo = 72 MHz

Stand-by current

I_std

2. 1 µA Max.

2.5 µA Max.

2.7 µA Max.

ST =GND

Symmetry

SYM

45 % to 55 %

50 % VCC level , L_CMOS < 15 pF

Output voltage

VOH

90 % VCC Min.

1.8 V ± 10 %

2.5 V ± 10 %

3.3 V ± 10 %

VOL

10 % VCC Max.

IOH

- 1.5 mA

-3 mA

-4 mA

IOL

1.5 mA

3 mA

4 mA

VOH-2

VCC - 0.4 V Min.

1.8 V±10 %

2.5 V±10 %

3.3 V±10 %

VOL-2

0.4 V Max.

IOH

-3 mA

-4 mA

-6 mA

IOL

3 mA

4 mA

6 mA

Output load condition
(CMOS)

L_CMOS

15 pF Max.

Input voltage

VIH

80 % VCC Min.

ST terminal

VIL

20 % VCC Max.

Rise time and Fall time

tr / tf

3 ns Max.
3.5 ns Max. (@1.8 V±10 %)

20 % VCC to 80 % VCC level, L_CMOS = 15 pF

Start-up time

t_str

3 ms Max.

T = 0 at 90 % VCC

Frequency aging

f_age

±3 × 10-6 / year Max.

+25 °C, First year

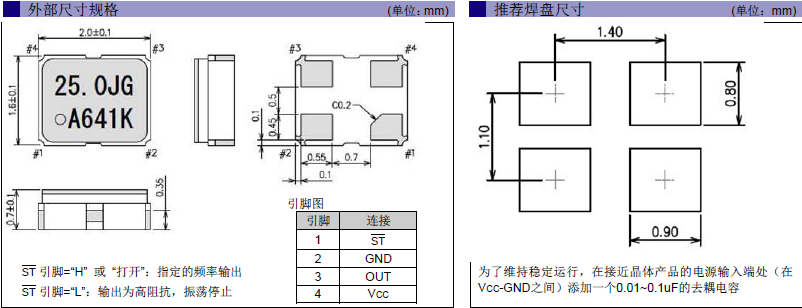

X1G004801000200,24MHz,SG2016CAN,EPSON普通有源晶振,2016mm,CMOS输出晶振,尺寸图

晶振编码	爱普生晶振	型号	频率	尺寸
X1G004801000200	EPSON晶振	SG2016CAN	24.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801001200	EPSON晶振	SG2016CAN	25.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801001400	EPSON晶振	SG2016CAN	16.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801001600	EPSON晶振	SG2016CAN	74.250000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801001800	EPSON晶振	SG2016CAN	20.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801001900	EPSON晶振	SG2016CAN	72.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002000	EPSON晶振	SG2016CAN	48.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002100	EPSON晶振	SG2016CAN	27.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002200	EPSON晶振	SG2016CAN	40.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002400	EPSON晶振	SG2016CAN	25.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002500	EPSON晶振	SG2016CAN	38.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801000300	EPSON晶振	SG2016CAN	26.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801000700	EPSON晶振	SG2016CAN	12.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801001300	EPSON晶振	SG2016CAN	50.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002600	EPSON晶振	SG2016CAN	33.333300 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002700	EPSON晶振	SG2016CAN	10.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002800	EPSON晶振	SG2016CAN	50.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801002900	EPSON晶振	SG2016CAN	10.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801003000	EPSON晶振	SG2016CAN	4.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801003100	EPSON晶振	SG2016CAN	24.576000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801003500	EPSON晶振	SG2016CAN	25.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801003600	EPSON晶振	SG2016CAN	40.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801003900	有源晶振	SG2016CAN	26.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801004000	EPSON晶振	SG2016CAN	24.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801004400	EPSON晶振	SG2016CAN	12.288000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801004500	EPSON晶振	SG2016CAN	8.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801004600	EPSON晶振	SG2016CAN	8.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801004900	EPSON晶振	SG2016CAN	4.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005000	EPSON晶振	SG2016CAN	12.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005100	EPSON晶振	SG2016CAN	12.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005200	EPSON晶振	SG2016CAN	12.288000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005300	EPSON晶振	SG2016CAN	12.288000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005400	EPSON晶振	SG2016CAN	14.745600 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005500	EPSON晶振	SG2016CAN	14.745600 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005600	EPSON晶振	SG2016CAN	16.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005700	EPSON晶振	SG2016CAN	20.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005800	EPSON晶振	SG2016CAN	20.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801005900	EPSON晶振	SG2016CAN	24.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006000	EPSON晶振	SG2016CAN	24.576000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006100	EPSON晶振	SG2016CAN	27.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006200	EPSON晶振	SG2016CAN	32.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006300	EPSON晶振	SG2016CAN	32.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006400	EPSON晶振	SG2016CAN	33.330000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006500	EPSON晶振	SG2016CAN	33.330000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006600	EPSON晶振	SG2016CAN	33.333300 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006700	EPSON晶振	SG2016CAN	40.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006800	EPSON晶振	SG2016CAN	48.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801006900	EPSON晶振	SG2016CAN	48.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801007000	EPSON晶振	SG2016CAN	50.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801007100	EPSON晶振	SG2016CAN	72.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801007200	EPSON晶振	SG2016CAN	72.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801007300	EPSON晶振	SG2016CAN	72.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801007600	EPSON晶振	SG2016CAN	32.000000 MHz	2.00 x 1.60 x 0.70 mm
X1G004801007700	EPSON晶振	SG2016CAN	26.000000 MHz	2.00 x 1.60 x 0.70 mm
