首页进口晶振 AXTAL晶振AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌

AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌

产品型号：2209395
频率：16.000MHz
尺寸：5.0x3.2mm
产品介绍：AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌,AXLE5032LN,低噪声晶振，德国进口晶振，AXTAL晶振，型号：AXLE5032LN，编码为：AXLE5032LN-V-33-C-05-4F...

AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌,AXLE5032LN,低噪声晶振，德国进口晶振，AXTAL晶振，型号：AXLE5032LN，编码为：AXLE5032LN-V-33-C-05-4F-16.000有源晶振，电压：3.3V，频率稳定性：±0.5ppm，工作温度范围：-40℃至+85℃，频率为：16.000MHz，小体积晶振尺寸：5.0x3.2mm，TCXO温补晶振，石英晶振，8垫脚贴片晶振，有源晶体，石英晶体振荡器。具有超小型，轻薄型，高稳定性，低功耗，低相位噪声，低电压等特点。被广泛应用于：移动通讯设备晶振，无线蓝牙晶振，物联网晶振，航空电子晶振，汽车电子晶振，导航仪等应用。

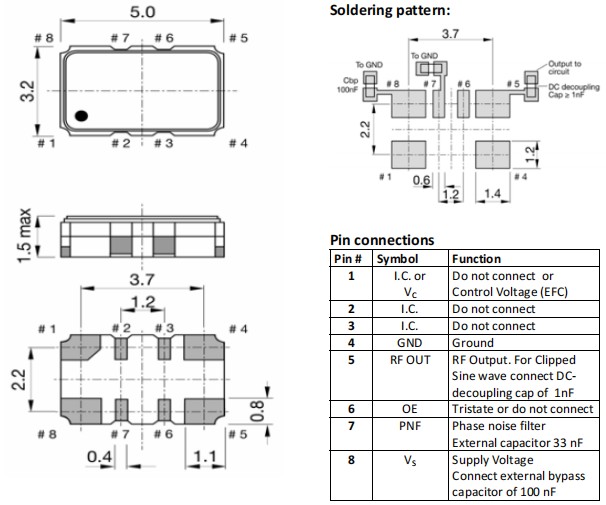

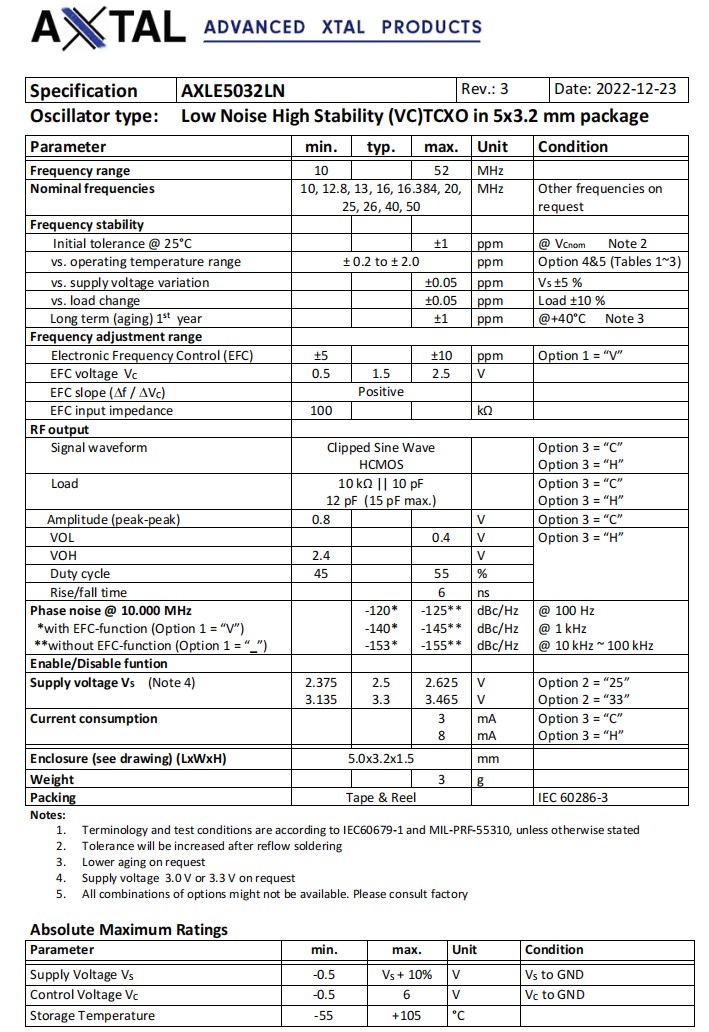

AXLE5032LN-V-33-C-05-4F-16.000,5032mm,16MHz,AXTAL品牌,AXLE5032LN,低噪声晶振,参数表

Parameter	min.	typ.	max.	Unit	Condition
Frequency range	16			MHz
Nominal frequencies	10, 12.8, 13, 16, 16.384,20,25, 26, 40, 50			MHz	Other frequencies
Nominal frequencies	10, 12.8, 13, 16, 16.384,20,25, 26, 40, 50			MHz	on request
Frequency stability
Initial tolerance @ 25°C			±1	ppm	@ VCnom Note 2
vs. operating temperature range	± 0.2 to ± 2.0			ppm	Option 4&5 (Tables 1~3)
vs. supply voltage variation			±0.05	ppm	VS ±5 %
vs. load change			±0.05	ppm	Load ±10 %
Long term (aging) 1st year			±1	ppm	@+40°C Note 3
Frequency adjustment range
Electronic Frequency Control (EFC)	±5		±10	ppm	Option 1 = “V”
EFC voltage VC	0.5	1.5	2.5	V
EFC slope (Df / DVC)	Positive
EFC input impedance	100			kΩ
RF output
Signal waveform	Clipped Sine Wave				Option 3 = “C”
Signal waveform	HCMOS				Option 3 = “H”
Load	10 kΩ \|\| 10 pF 12 pF (15 pF max.)				Option 3 = “C”
Load	10 kΩ \|\| 10 pF 12 pF (15 pF max.)				Option 3 = “H”
Amplitude (peak‐peak)	0.8			V	Option 3 = “C”
VOL			0.4	V	Option 3 = “H”
VOH	2.4			V
Duty cycle	45		55	%
Rise/fall time			6	ns
Phase noise @10.000MHz with EFC‐function(Option 1=“V”) without EFC‐function(Option 1=“_”)		‐120* ‐140* ‐153*	‐125 ‐145 ‐155**	dBc/Hz	@ 100Hz @ 1kHz @ 10 kHz~100kHz
Enable Disable funtion
Supply voltage VS (Note 4)	2.375	2.5	2.625	V	Option 2 = “25”
Supply voltage VS (Note 4)	3.135	3.3	3.465	V	Option 2 = “33”
Current consumption			3	mA	Option 3 = “C”
Current consumption			8	mA	Option 3 = “H”

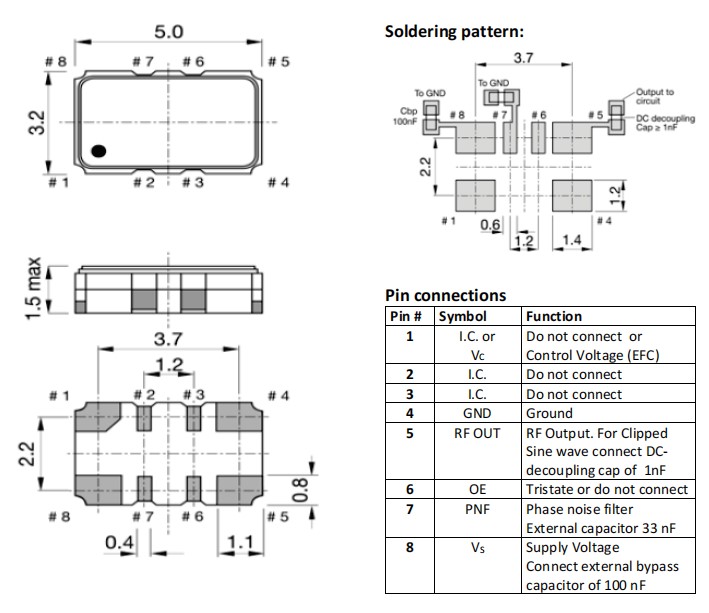

Enclosure (see drawing) (LxWxH)		5.0x3.2x1.5		mm
Weight			3	g
Packing	Tape & Reel				IEC 60286-3
