- 产品型号：33452673
- 频率：24.576000MHz
- 尺寸：6.0x3.5mm
- 产品介绍：Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振，AKER晶振，安碁晶振，型号：C6SA系列，编码为：C6SA-24.576000-18-3050-R，频率为：24.576000MHz，小体积晶...
-

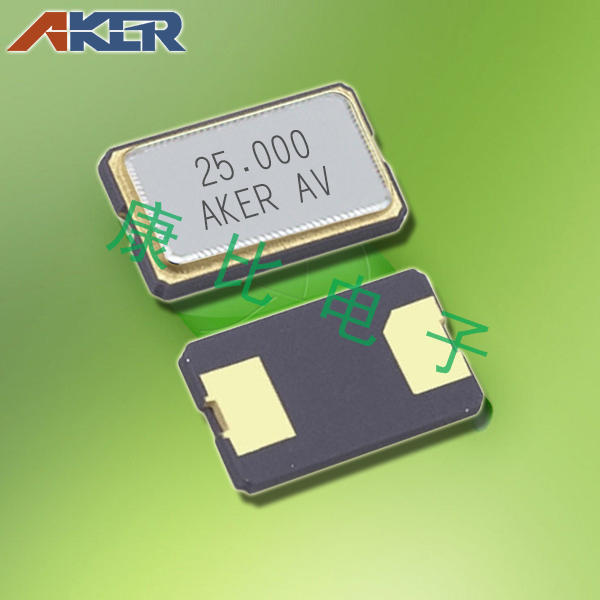

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振
.jpg)
.jpg)
Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振，AKER晶振，安碁晶振，型号：C6SA系列，编码为：C6SA-24.576000-18-3050-R，频率为：24.576000MHz，小体积晶振尺寸：6.0x3.5mm封装，两脚贴片晶振，石英晶体谐振器，石英晶体，无源晶振，无铅晶振，SMD晶振，微处理器晶体。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。石英晶振，应用于：通讯设备，无线网络，蓝牙模块，平板电脑，汽车电子，医疗设备，数码电子，智能家居等应用。
.jpg)

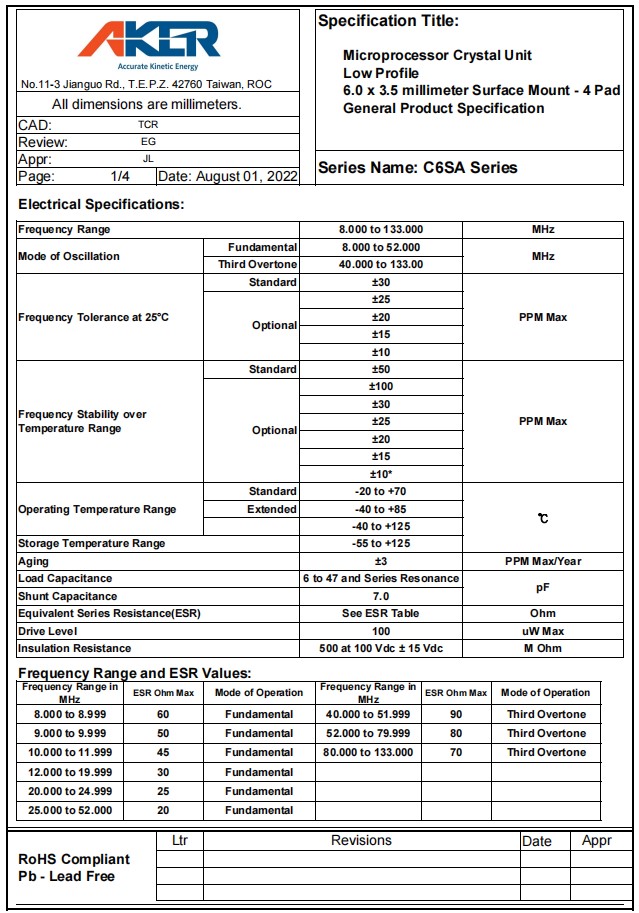

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振,参数表
| Frequency Range | 24.576000 | MHz | |||||||||||
| Mode of Oscillation | Fundamental | 8.000 to 52.000 | MHz | ||||||||||
| Third Overtone | 40.000 to 133.00 | ||||||||||||
| Frequency Tolerance at 25°C | Standard | ±30 | PPM Max | ||||||||||
| Optional | ±25 | ||||||||||||
| ±20 | |||||||||||||
| ±15 | |||||||||||||
| ±10 | |||||||||||||
|
Frequency Stability over Temperature Range |
Standard | ±50 | PPM Max | ||||||||||
| Optional | ±100 | ||||||||||||
| ±30 | |||||||||||||
| ±25 | |||||||||||||
| ±20 | |||||||||||||
| ±15 | |||||||||||||
| ±10* | |||||||||||||
| Operating Temperature Range | Standard | -20 to +70 | ℃ | ||||||||||
| Extended | -40 to +85 | ||||||||||||
| -40 to +125 | |||||||||||||
| Storage Temperature Range | -55 to +125 | ||||||||||||
| Aging | ±3 | PPM Max/Year | |||||||||||
| Load Capacitance | 6 to 47 and Series Resonance | pF | |||||||||||
| Shunt Capacitance | 7.0 | ||||||||||||
| Equivalent Series Resistance(ESR) | See ESR Table | Ohm | |||||||||||
| Drive Level | 100 | uW Max | |||||||||||
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | |||||||||||
.jpg)

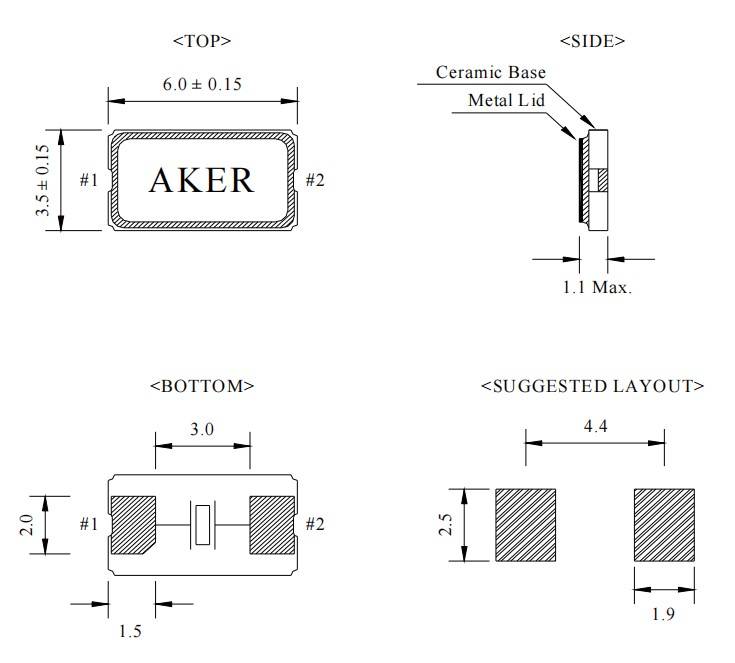

Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振,尺寸图
Aker安碁晶振,C6SA-24.576000-18-3050-R,智能家居晶振
产品特点：
外形尺寸：6.0x3.5mm 两垫脚贴片晶振
频率范围：8~133MHz
微处理器晶体单元
低调
通用产品规范
| 产品编码 | 晶振厂家 | 描述 | 系列 | 频率 |
| C3E-16.000-18-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 18PF SMD | C3E | 16 MHz |
| C3E-20.000-12-3030-X-R | Aker安碁 | CRYSTAL 20.0000MHZ 12PF SMD | C3E | 20 MHz |
| C3E-16.000-12-3030-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-25.000-18-3030-R | Aker安碁 | CRYSTAL 25.0000MHZ 18PF SMD | C3E | 25 MHz |
| C3E-12.000-18-3030-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-18-2030-R | Aker安碁 | CRYSTAL 25.0000MHZ 18PF SMD | C3E | 25 MHz |
| C3E-12.000-8-3030-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-25.000-8-1010-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-25.000-8-1520-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-16.000-12-3030-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-32.000-10-1010-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-12.000-8-1520-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-32.000-12-1010-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-25.000-8-1015-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-12.000-18-3030-X-R | Aker安碁 | CRYSTAL 12.0000MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-12-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 12PF SMD | C3E | 25 MHz |
| C3E-25.000-10-3030-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 10PF SMD | C3E | 25 MHz |
| C3E-24.000-8-1015-R | Aker安碁 | CRYSTAL 24.0000MHZ 8PF SMD | C3E | 24 MHz |
| C3E-24.000-10-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C3E | 24 MHz |
| C3E-32.000-12-1530-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-12.000-8-1010-R | Aker安碁 | CRYSTAL 12.0000MHZ 8PF SMD | C3E | 12 MHz |
| C3E-16.000-8-1015-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C3E | 16 MHz |
| C3E-32.000-10-1015-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-24.000-12-1530-X-R | Aker晶振 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-12-3030-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-18-1010-R | Aker安碁 | CRYSTAL 24.0000MHZ 18PF SMD | C3E | 24 MHz |
| C3E-20.000-10-1530-X-R | Aker安碁 | CRYSTAL 20.0000MHZ 10PF SMD | C3E | 20 MHz |
| C3E-25.000-8-1530-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-24.000-12-1015-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 12PF SMD | C3E | 24 MHz |
| C3E-24.000-10-1015-X-R | Aker安碁 | CRYSTAL 24.0000MHZ 10PF SMD | C3E | 24 MHz |
| C3E-16.000-12-1015-X-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-40.000-10-1015-X-R | Aker安碁 | CRYSTAL 40.0000MHZ 10PF SMD | C3E | 40 MHz |
| C3E-32.000-8-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 8PF SMD | C3E | 32 MHz |
| C3E-32.000-10-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 10PF SMD | C3E | 32 MHz |
| C3E-32.000-12-1015-X-R | Aker安碁 | CRYSTAL 32.0000MHZ 12PF SMD | C3E | 32 MHz |
| C3E-8.000-10-3030-R | Aker安碁 | CRYSTAL 8.0000MHZ 10PF SMD | C3E | 8 MHz |
| C3E-8.000-10-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 10PF SMD | C3E | 8 MHz |
| C3E-8.000-18-3030-X-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz |
| C3E-8.000-18-3030-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz |
| C3E-16.000-12-1015-X-M | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-24.000-9-1010-R | Aker安碁 | CRYSTAL 24MHZ 9PF SMD | C3E | 24 MHz |
| C3E-12.000-12-1020-X-R | Aker安碁 | CRYSTAL 12MHZ 12PF SMD | C3E | 12 MHz |
| C3E-12.000-18-1020-X-R | Aker安碁 | CRYSTAL 12MHZ 18PF SMD | C3E | 12 MHz |
| C3E-25.000-20-1015-X-R | Aker安碁 | CRYSTAL 25MHZ 20PF SMD | C3E | 25 MHz |
| C3E-24.000-9-1015-X-R | Aker安碁 | CRYSTAL 24MHZ 9PF SMD | C3E | 24 MHz |
| C3E-16.000-9-1015-X-R | Aker安碁 | CRYSTAL 16MHZ 9PF SMD | C3E | 16 MHz |
| C3E-8.000-20-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 12PF SMD | C3E | 8 MHz |
| C3E-8.000-18-1020-X-R | Aker安碁 | CRYSTAL 8MHZ 18PF SMD | C3E | 8 MHz |
| C3E-8.000-8-1015-R | Aker安碁 | CRYSTAL 8MHZ 8PF SMD | C3E | 8 MHz |
| C3E-12.000-8-2050-X1-R | Aker安碁 | CRYSTAL 12MHZ 8PF SMD AEC-Q200 | C3E X1 | 12 MHz |
| C3E-16.000-10-3050-X1-R | Aker安碁 | CRYSTAL 16MHZ 10PF SMD AEC-Q200 | C3E X1 | 16 MHz |
| C3E-20.000-8-3050-X1-R | Aker安碁 | CRYSTAL 20MHZ 8PF SMD AEC-Q200 | C3E X1 | 20 MHz |
| C3E-8.000-18-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 18PF SMD | C3E | 8 MHz |
| C3E-8.000-12-1020-M | Aker安碁 | CRYSTAL 8MHZ 12PF SMD | C3E | 8 MHz |
| C3E-16.000-10-2050-X1-R | Aker安碁 | CRYSTAL 10MHZ 10PF SMD AEC-Q200 | C3E X1 | 10 MHz |
| C3E-30.000-8-2050-X1-R | Aker安碁 | CRYSTAL 30MHZ 8PF SMD AEC-Q200 | C3E X1 | 30 MHz |
| C3E-8.000-10-1020-M | Aker安碁 | CRYSTAL 8MHZ 10PF SMD | C3E | 8 MHz |
| C3E-24.576-12-3030-X-R | Aker安碁 | CRYSTAL 24.5760MHZ 12PF SMD | C3E | 24.576 MHz |
| C3E-30.000-12-1020-X-R | Aker安碁 | CRYSTAL 30MHZ 12PF SMD | C3E | 30 MHz |
| C3E-12.000-12-1015-R | Aker安碁 | CRYSTAL 12.0000MHZ 12PF SMD | C3E | 12 MHz |
| C3E-25.000-8-1015-X-R | Aker安碁 | CRYSTAL 25.0000MHZ 8PF SMD | C3E | 25 MHz |
| C3E-26.000-10-1015-X-R3 | Aker安碁 | CRYSTAL 26.0000MHZ 10PF SMD | C3E | 26 MHz |
| C3E-16.000-8-2050-X1-R | Aker安碁 | CRYSTAL 16MHZ 8PF SMD AEC-Q200 | C3E X1 | 16 MHz |
| C3E-8.000-12-1020-R | Aker安碁 | CRYSTAL 8.0000MHZ 12PF SMD | C3E | 8 MHz |
| C3E-12.000-12-3030-X-R | Aker安碁 | CRYSTAL 12.0000MHZ 12PF SMD | C3E | 12 MHz |
| C3E-27.120-12-1010-R | Aker安碁 | CRYSTAL 27.1200MHZ 12PF SMD | C3E | 27.12 MHz |
| C3E-24.576-12-1010-R | Aker安碁 | CRYSTAL 24.5760MHZ 12PF SMD | C3E | 24.576 MHz |
| C3E-16.000-12-1015-R | Aker安碁 | CRYSTAL 16.0000MHZ 12PF SMD | C3E | 16 MHz |
| C3E-13.560-12-1530-X-R | Aker安碁 | CRYSTAL 13.5600MHZ 12PF SMD | C3E | 13.56 MHz |
| C3E-20.000-10-3050-X1-R | Aker安碁 | CRYSTAL 20MHZ 10PF SMD AEC-Q200 | C3E X1 | 20 MHz |
| C3E-27.120-12-1020-X-R | Aker安碁 | CRYSTAL 27.120MHZ 12PF SMD | C3E | 27.12 MHz |
| C3E-16.000-9-1010-R | Aker安碁 | CRYSTAL 16MHZ 9PF SMD | C3E | 16 MHz |
| C6S-16.000-12-5050-X-R | Aker安碁 | CRYSTAL 16MHZ 12PF SMD | C6S | 16 MHz |
| C3E-16.000-8-50100-X1-R | Aker安碁 | CRYSTAL 16.0000MHZ 8PF SMD | C3E | 16 MHz |
| C3E-16.000-8-50150-A-X3-R | Aker安碁 | UWB CRYSTAL, 3225, 16.000MHZ, 8P | C3E Auto | 16 MHz |
| C3E-8.000-8-10150-A-X3-R | Aker安碁 | UWB CRYSTAL, 3225, 8.000MHZ, 8PF | C3E Auto | 8 MHz |
| C3E-16.000-8-10150-A-X3-R | Aker安碁 | CRYSTAL, 3225, 16.000MHZ, 8PF, S | C3E Auto | 16 MHz |
| C3E-24.000-12-1050-A-X1-R | Aker安碁 | CRYSTAL, 3225, 24.000MHZ, 12PF, | C3E Auto | 24 MHz |
| C3E-8.000-8-1080-A-X1-R | Aker安碁 | CRYSTAL, 3225, 8.000MHZ, 8PF, SM | C3E Auto | 8 MHz |
| C3E-16.000-12-2050-A-X1-R | Aker安碁 | CRYSTAL, 3225, 16.000MHZ, 12PF, | C3E Auto | 16 MHz |
