- 产品型号：47247261
- 频率：48.000MHz
- 尺寸：2.5x2.0mm
- 产品介绍：平板电脑6G晶振,C2E-48.000-10-1530-X-R,AKER无源晶振,C2E-30.720-8-1530-X-R,2520mm晶振，美国AKER安碁晶振，进口晶振，C2E系列贴片晶振编码为：C2E-48.000-10-1...
-

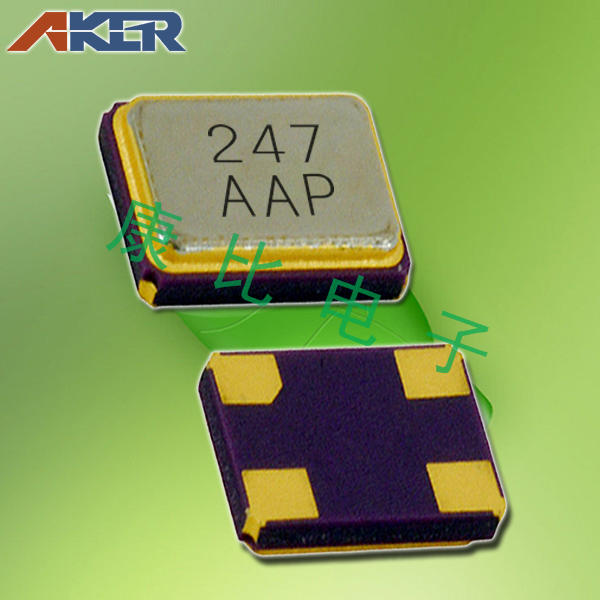

平板电脑6G晶振,C2E-48.000-10-1530-X-R,AKER无源晶振
.jpg)
.jpg)
平板电脑6G晶振,C2E-48.000-10-1530-X-R,AKER无源晶振,C2E-30.720-8-1530-X-R,2520mm晶振，美国AKER安碁晶振，进口晶振，C2E系列贴片晶振编码为：C2E-48.000-10-1530-X-R，频率为：48.0000 MHz，小体积晶振尺寸：2.5x2.0mm，四脚贴片晶振，无源晶振，石英晶体谐振器，SMD石英晶体，扩展工作温度范围：-40℃至+85℃，C2E系列具有超小型，轻薄型，耐热及耐环境特点。应用于：通讯设备，可穿戴设备，小型便捷式设备，无线网络，蓝牙模块，智能手机，平板电脑，仪器仪表设备，医疗设备，数码电子等应用。
.jpg)
平板电脑6G晶振,C2E-48.000-10-1530-X-R,AKER无源晶振,C2E-30.720-8-1530-X-R,2520mm晶振，参数表

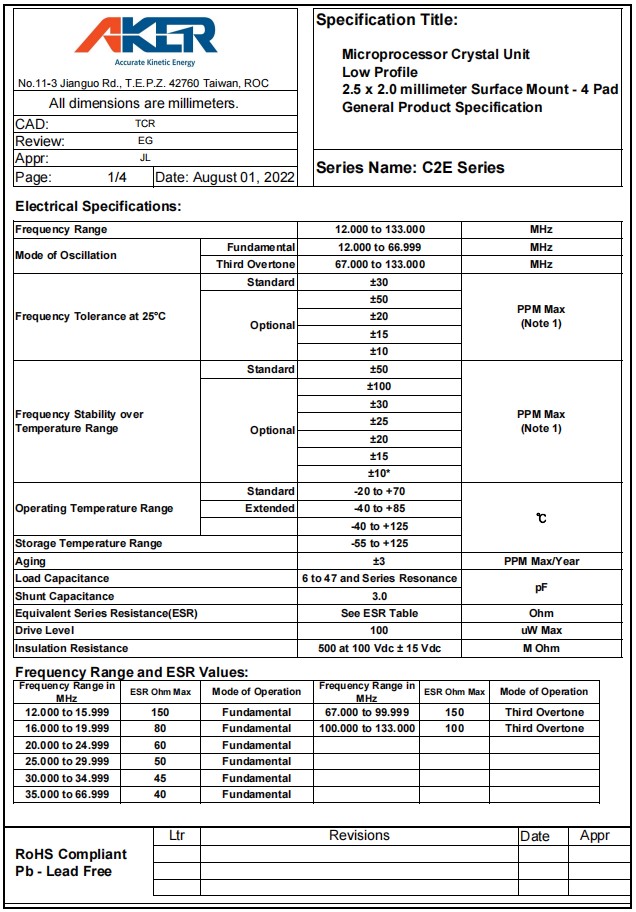

| Frequency Range | 12.000 to 133.000 | MHz | |
| Mode of Oscillation | Fundamental | 12.000 to 66.999 | MHz |
| Third Overtone | 67.000 to 133.000 | MHz | |
| Frequency Tolerance at 25°C | Standard | ±30 |
PPM Max (Note 1) |
| Optional | ±50 | ||
| ±20 | |||
| ±15 | |||
| ±10 | |||
|
Frequency Stability over Temperature Range |
Standard | ±50 |
PPM Max (Note 1) |
| Optional | ±100 | ||
| ±30 | |||
| ±25 | |||
| ±20 | |||
| ±15 | |||
| ±10* | |||
| Operating Temperature Range | Standard | -20 to +70 | ℃ |
| Extended | -40 to +85 | ||
| -40 to +125 | |||
| Storage Temperature Range | -55 to +125 | ||
| Aging | ±3 | PPM Max/Year | |
| Load Capacitance | 6 to 47 and Series Resonance | pF | |
| Shunt Capacitance | 3.0 | ||
| Equivalent Series Resistance(ESR) | See ESR Table | Ohm | |
| Drive Level | 100 | uW Max | |
| Insulation Resistance | 500 at 100 Vdc ± 15 Vdc | M Ohm | |
.jpg)
平板电脑6G晶振,C2E-48.000-10-1530-X-R,AKER无源晶振,C2E-30.720-8-1530-X-R,2520mm晶振，尺寸图
| 贴片晶振 | 供应商 | 说明 |
| C2E-26.000-10-1530-X-R | Aker晶振 | Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C2E-16.000-10-1530-X-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C2E-25.000-10-1530-X-R | Aker晶振 | Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C2E-24.000-10-1530-X-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C2E-20.000-10-1530-X-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C2E-32.000-10-1530-X-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R |
| C2E-27.000-10-1530-X-R | Aker晶振 | Crystal 27MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm 4-Pin SMD T/R |
| C2E-30.000-10-1530-X-R | Aker晶振 | Crystal 30MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R |
| C2E-48.000-10-1530-X-R | Aker晶振 | Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R |
| C2E-40.000-10-1530-X-R | Aker晶振 | Crystal 40MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm 4-Pin SMD T/R |
| C2E-36.000-10-1520-R | Aker晶振 | Crystal 36MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-12.000-8-1530-X-R | Aker晶振 | Crystal 12MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 300Ohm Automotive 4-Pin SMD T/R |
| C2E-12.000-8-1520-R | Aker晶振 | Crystal 12MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 300Ohm Automotive 4-Pin SMD T/R |
| C2E-30.720-8-1530-X-R | Aker晶振 | Crystal 30.72MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-30.720-8-1520-R | Aker晶振 | Crystal 30.72MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-30.720-10-1520-R | Aker晶振 | Crystal 30.72MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-30.720-12-1520-R | Aker晶振 | Crystal 30.72MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-48.000-10-1520-R | Aker晶振 | Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-18.080-12-50100-X1-R | Aker晶振 | Crystal 18.08MHz ±50ppm (Tol) ±100ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.576-8-1520-R | Aker晶振 | Crystal 24.576MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.576-12-1520-R | Aker晶振 | Crystal 24.576MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-16.000-10-1520-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-16.000-8-1520-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.576-12-1530-X-R | Aker晶振 | Crystal 24.576MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.576-8-1530-X-R | Aker晶振 | Crystal 24.576MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-16.000-12-1520-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-16.000-12-1530-X-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.576-10-1520-R | Aker晶振 | Crystal 24.576MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.576-10-1530-X-R | Aker晶振 | Crystal 24.576MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-27.120-12-1530-X-R | Aker晶振 | Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-27.120-12-1520-R | Aker晶振 | Crystal 27.12MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-27.120-10-1520-R | Aker晶振 | Crystal 27.12MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-27.120-10-1530-X-R | Aker晶振 | Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-12.000-10-1520-R | Aker晶振 | Crystal 12MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 300Ohm Automotive 4-Pin SMD T/R |
| C2E-27.120-8-1520-R | Aker晶振 | Crystal 27.12MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-12.000-12-1520-R | Aker晶振 | Crystal 12MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 300Ohm Automotive 4-Pin SMD T/R |
| C2E-12.000-12-1530-X-R | Aker晶振 | Crystal 12MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 300Ohm Automotive 4-Pin SMD T/R |
| C2E-38.400-10-1520-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-26.000-8-1530-X-R | Aker晶振 | Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-38.400-12-1530-X-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-38.400-8-1520-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-26.000-12-1530-X-R | Aker晶振 | Crystal 26MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-48.000-8-1520-R | Aker晶振 | Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-48.000-12-1520-R | Aker晶振 | Crystal 48MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-48.000-8-1530-X-R | Aker晶振 | Crystal 48MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-16.000-8-1530-X-R | Aker晶振 | Crystal 16MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-12.000-10-1530-X-R | Aker晶振 | Crystal 12MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 300Ohm Automotive 4-Pin SMD T/R |
| C2E-27.120-8-1530-X-R | Aker晶振 | Crystal 27.12MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-26.000-8-1520-R | Aker晶振 | Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-38.400-12-1520-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-38.400-8-1530-X-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-26.000-10-1520-R | Aker晶振 | Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-26.000-12-1520-R | Aker晶振 | Crystal 26MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-38.400-10-1530-X-R | Aker晶振 | Crystal 38.4MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-8-50100-X1-R | Aker晶振 | Crystal 20MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-10-50100-X1-R | Aker晶振 | Crystal 20MHz ±50ppm (Tol) ±100ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-12-50100-X1-R | Aker晶振 | Crystal 20MHz ±50ppm (Tol) ±100ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-19.200-12-1530-X-R | Aker晶振 | Crystal 19.2MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-25.000-8-1520-R | Aker晶振 | Crystal 25MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-25.000-12-1520-R | Aker晶振 | Crystal 25MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-27.000-8-50100-X1-R | Aker晶振 | Crystal 27MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-19.200-10-1520-R | Aker晶振 | Crystal 19.2MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-19.200-8-1520-R | Aker晶振 | Crystal 19.2MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-19.200-8-1530-X-R | Aker晶振 | Crystal 19.2MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-19.200-10-1530-X-R | Aker晶振 | Crystal 19.2MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-19.200-12-1520-R | Aker晶振 | Crystal 19.2MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-25.000-10-1520-R | Aker晶振 | Crystal 25MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-25.000-8-1530-X-R | Aker晶振 | Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-25.000-12-1530-X-R | Aker晶振 | Crystal 25MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.000-10-1520-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-12-1530-X-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.000-12-1520-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.000-8-1520-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-8-1520-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.000-12-1530-X-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-10-1520-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-12-1520-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-24.000-8-1530-X-R | Aker晶振 | Crystal 24MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-20.000-8-1530-X-R | Aker晶振 | Crystal 20MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-37.400-10-1530-X-R | Aker晶振 | Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-32.000-12-1520-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-32.000-8-1530-X-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-32.000-8-1520-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-37.400-8-1530-X-R | Aker晶振 | Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-32.000-12-1530-X-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-37.400-8-1520-R | Aker晶振 | Crystal 37.4MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-37.400-12-1520-R | Aker晶振 | Crystal 37.4MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-32.000-10-1520-R | Aker晶振 | Crystal 32MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-37.400-10-1520-R | Aker晶振 | Crystal 37.4MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-37.400-12-1530-X-R | Aker晶振 | Crystal 37.4MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-40.000-8-50100-X1-R | Aker晶振 | Crystal 40MHz ±50ppm (Tol) ±100ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-27.000-8-1520-R | Aker晶振 | Crystal 27MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-50.000-12-1520-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-27.000-10-1520-R | Aker晶振 | Crystal 27MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-50.000-8-1530-X-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-50.000-8-1520-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 8pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-50.000-10-1530-X-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-16.000-12-50100-X1-R | Aker晶振 | Crystal 16MHz ±50ppm (Tol) ±100ppm (Stability) 12pF FUND 100Ohm Automotive 4-Pin SMD T/R |
| C2E-50.000-12-1530-X-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±30ppm (Stability) 12pF FUND 70Ohm Automotive 4-Pin SMD T/R |
| C2E-50.000-10-1520-R | Aker晶振 | Crystal 50MHz ±15ppm (Tol) ±20ppm (Stability) 10pF FUND 70Ohm Automotive 4-Pin SMD T/R |
