首页进口晶振 AEL晶振ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,数码电子晶振

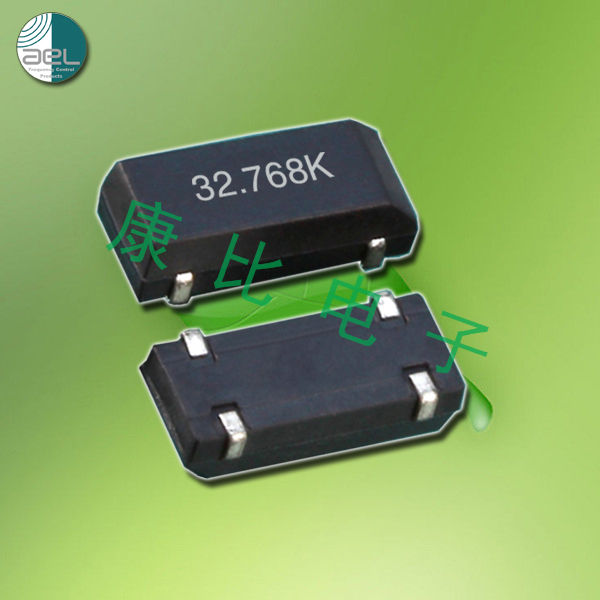

ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,数码电子晶振

产品型号：7065550
频率：32.768KHz
尺寸：8.0x3.8x2.5mm
产品介绍：ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,数码电子晶振,ELS25,石英晶体谐振器，英国进口晶振，AEL晶振，艾尔晶振，型号：ELS25系列，编码为：ELS25-32.768kHz-6-2-T...

ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,数码电子晶振,ELS25,石英晶体谐振器，英国进口晶振，AEL晶振，艾尔晶振，型号：ELS25系列，编码为：ELS25-32.768kHz-6-2-T，频率：32.768KHz，负载电容：6pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：8.0x3.8x2.5mm，四脚贴片晶振，8038晶振，SMD晶振，石英晶振，石英晶体谐振器，无源晶振，陶瓷晶振，具有超小型晶振，轻薄型晶振，高品质晶振，耐热及耐环境特点，应用于：无线网络晶振，移动通讯晶振，钟表晶振，仪器仪表设备晶振，测试设备晶振，智能家居晶振等应用。

ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,数码电子晶振,ELS25,石英晶体谐振器，产品特点：
•SMD音叉晶体谐振器
•公差：±20ppm，±10ppm可用
•工作温度-40°C至+85°C

ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,数码电子晶振,ELS25,石英晶体谐振器,参数表

PARAMETERS

MAX (Unless otherwise noted)

Nominal Frequency

32.768 kHz

Frequency Range

30 to 100 kHz

Operating Temperature

-40°C to +85°C

Turnover Temperature

+20°C to +30°C

Storage Temperature

-55°C to +125°C

Frequency Tolerance @ 25°C
32.768kHz
Other frequencies

± 20PPM
± 30PPM

Capacitance Ratio (C0/C1)
32.768kHz
Other frequencies

450 typ
425 to 800 typ

Frequency Coefficient (ß)

-0.035±0.01 ppm/°C2

Equivalent Series Resistance (R1)

50 k?

Shunt Capacitance (C0)
32.768kHz
Other frequencies

1.35 pF typ
0.8 to 1.7 pF typ

Load Capacitance (CL)

12.5 pF, see options

Drive Level

1 μW

Aging (@25°C±3°C First year )
32.768kHz
Other frequencies

±3ppm
±5ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes

Pb Free

Exempt 7(a)

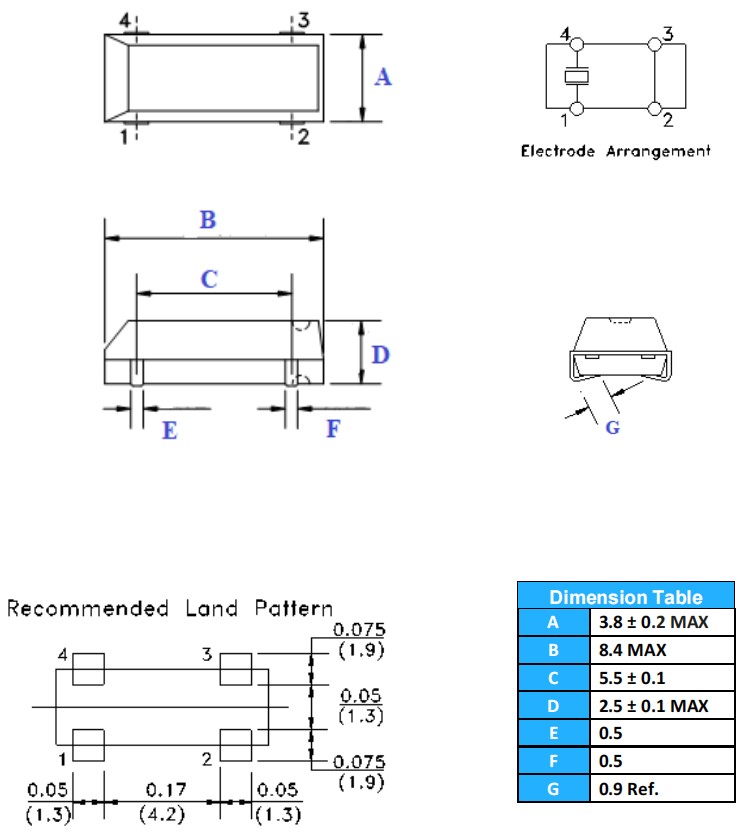

ELS25-32.768kHz-6-2-T,8038mm,AEL晶振,数码电子晶振,ELS25,石英晶体谐振器,尺寸图

产品编码	进口晶振	频率	长度	宽度	高度
ELS07-32.768kHz-6-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS06-32.768kHz-9-T	AEL晶振	32.768 kHz	2mm	1.2mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	32.768 kHz	1.6mm	1mm	0.5mm
X32K768L025	AEL晶振	32.768 kHz	2.1mm	6.2mm	13.2mm
X32K768L104	AEL晶振	32.768 kHz	2.9mm	8mm	17mm
X32K768S003	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S012	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S013	石英晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S020	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S021	AEL晶振	32.768 kHz	4.1mm	1.5mm	0.7mm
X32K768S036	AEL晶振	32.768 kHz	10.41mm	4.06mm	3.56mm
X32K768S038	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S041	AEL晶振	32.768 kHz	4mm	1.5mm	0.7mm
X32K768S045	AEL晶振	32.768 kHz	2mm	6mm	9mm
X32K768S051	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S067	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
X32K768S073	AEL晶振	32.768 kHz	6mm	2.5mm	8.3mm
X32K768S112	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S115	AEL晶振	32.768 kHz	8mm	4mm	2.4mm
X32K768S134	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
X32K768S233	AEL晶振	32.768 kHz	10.4mm	4mm	3.5mm
X32K768S239	AEL晶振	32.768 kHz	7.9mm	3.8mm	2.4mm
X32K768S300	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
