首页进口晶振 AEL晶振ELM12W-24.000MHz-6-R120-D7X-T3,AEL无源晶振,轻薄型晶振

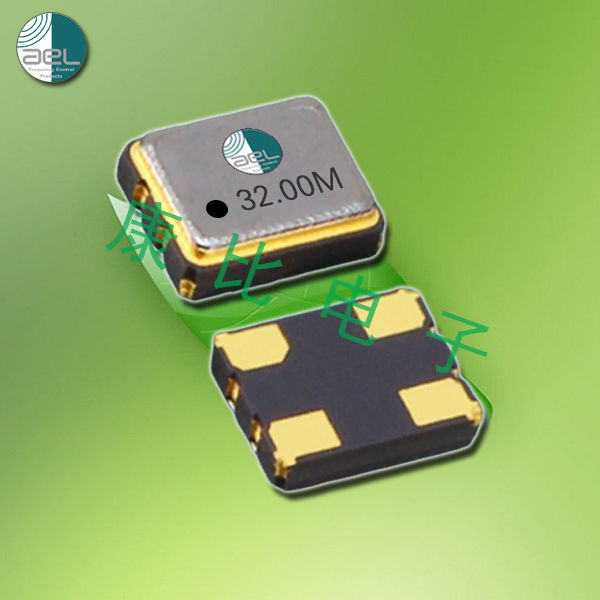

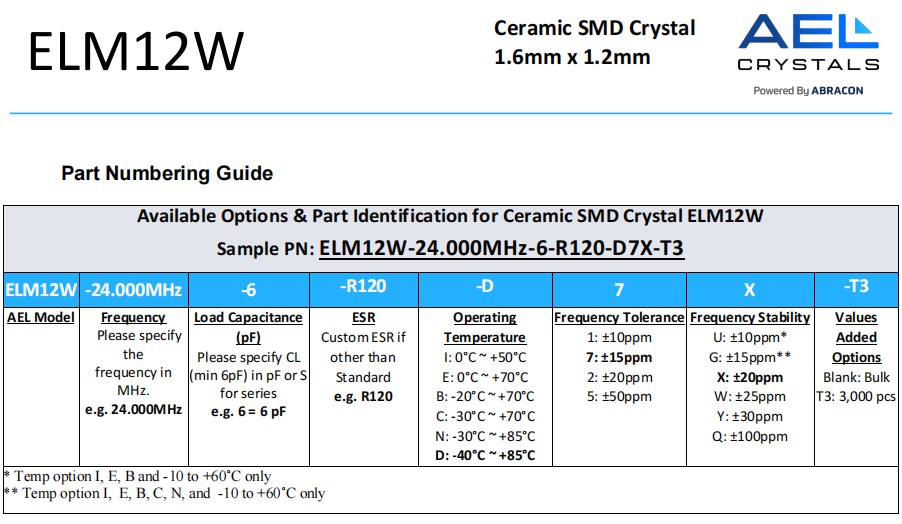

ELM12W-24.000MHz-6-R120-D7X-T3,AEL无源晶振,轻薄型晶振

产品型号：65344290
频率：24.000MHz
尺寸：1.6x1.2mm
产品介绍：ELM12W-24.000MHz-6-R120-D7X-T3,AEL无源晶振,轻薄型晶振，英国进口晶振，AEL晶振，艾尔晶振，型号：ELM12W晶振，编码为：ELM12W-24.000MHz-6-R120-D7X-T3，频率为...

ELM12W-24.000MHz-6-R120-D7X-T3,AEL无源晶振,轻薄型晶振，英国进口晶振，AEL晶振，艾尔晶振，型号：ELM12W晶振，编码为：ELM12W-24.000MHz-6-R120-D7X-T3，频率为：24.000MHz，小体积晶振尺寸：1.6x1.2mm封装，四脚贴片晶振，SMD石英晶体，石英晶体谐振器，石英晶振，无源晶振，无铅环保晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境等特点。被广泛应用于：通讯设备，无线网络，蓝牙模块，智能穿戴设备，玩具晶振，小型便捷式设备，车载控制器，平板电脑，智能手机，智能家居，游戏机设备，遥控器晶振，安防设备等应用。

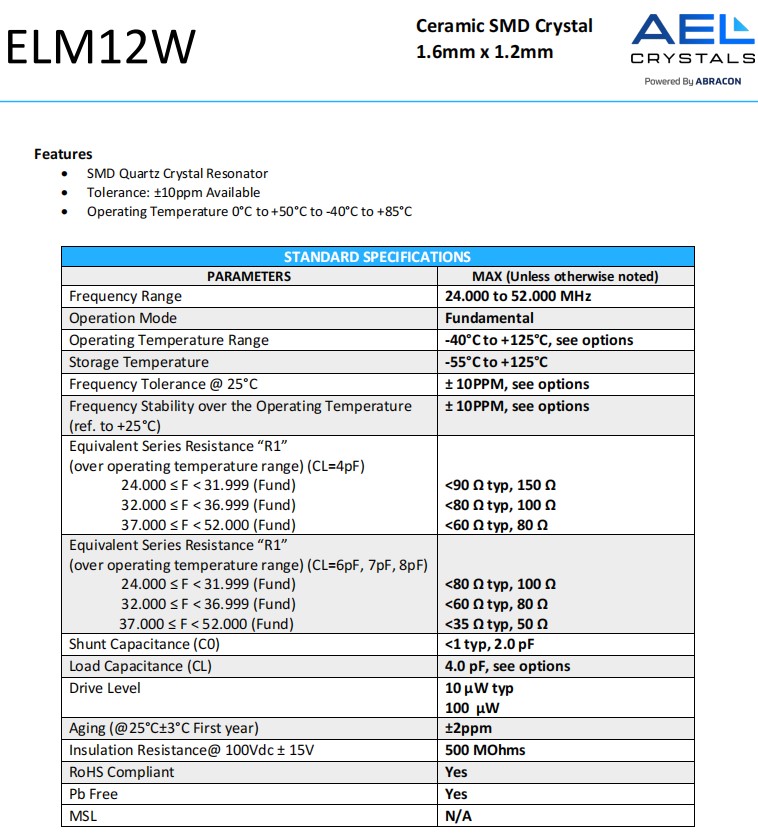

ELM12W-24.000MHz-6-R120-D7X-T3,AEL无源晶振,轻薄型晶振,参数表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

24.000 to 52.000 MHz

Operation Mode

Fundamental

Operating Temperature Range

-40°C to +125°C, see options

Storage Temperature

-55°C to +125°C

Frequency Tolerance @ 25°C

± 10PPM, see options

Frequency Stability over the Operating Temperature
(ref. to +25°C)

± 10PPM, see options

Equivalent Series Resistance “R1”
(over operating temperature range) (CL=4pF)
24.000 ≤ F < 31.999 (Fund)
32.000 ≤ F < 36.999 (Fund)
37.000 ≤ F < 52.000 (Fund)

<90Ω typ, 150Ω
<80Ω typ, 100Ω
<60Ω typ, 80Ω

Equivalent Series Resistance “R1”
(over operating temperature range) (CL=6pF, 7pF, 8pF)
24.000 ≤ F < 31.999 (Fund)
32.000 ≤ F < 36.999 (Fund)
37.000 ≤ F < 52.000 (Fund)

<80Ω typ, 100Ω
<60Ω typ, 80Ω
<35Ω typ, 50Ω

Shunt Capacitance (C0)

<1 typ, 2.0 pF

Load Capacitance (CL)

4.0 pF, see options

Drive Level

10 μW typ
100 μW

Aging (@25°C±3°C First year)

±2ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes

Pb Free

Yes

MSL

N/A

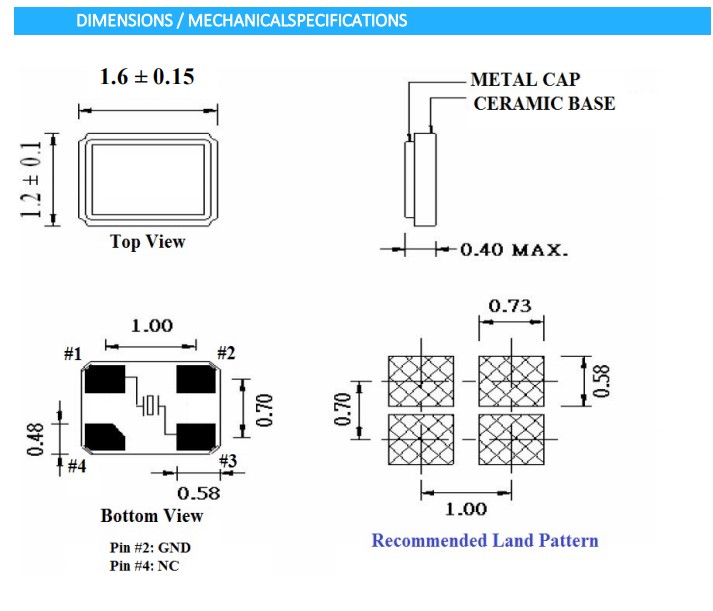

ELM12W-24.000MHz-6-R120-D7X-T3,AEL无源晶振,轻薄型晶振,尺寸图

ELM12W-24.000MHz-6-R120-D7X-T3,AEL无源晶振,轻薄型晶振
产品特点：

SMD石英晶体谐振器

公差：±10ppm可用

工作温度0°C至+50°C至-40°C至+85°C

产品编码	进口晶振	频率	长度	宽度	高度
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	10 MHz	12.3mm	4.6mm	4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	12 MHz	12.3mm	4.6mm	4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	13.56 MHz	12.3mm	4.6mm	4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	30 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	4 MHz	12.3mm	4.6mm	4.3mm
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	8 MHz	12.3mm	4.6mm	4.3mm
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	16 MHz	2.5mm	2mm	0.5mm
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	24 MHz	2.5mm	2mm	0.5mm
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	32 MHz	2mm	1.6mm	0.5mm
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	12 MHz	5mm	3.2mm	1mm
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	14 MHz	5mm	3.2mm	1mm
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	24 MHz	5mm	3.2mm	1mm
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	8.057 MHz	5mm	3.2mm	1mm
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	12 MHz	3mm	2.5mm	0.6mm
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	12.5829 MHz	3mm	2.5mm	0.6mm
ELM8-14.000MHz-16-R150-B1U-T	AEL晶振	14.8 MHz	3mm	2.5mm	0.6mm
ELM8-18.432MHz-16-R80-DQ-T	AEL晶振	18.432 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-10-R60-D1W-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-18-R60-B1W-T	石英晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	24 MHz	3mm	2.5mm	0.6mm
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	26 MHz	3mm	2.5mm	0.6mm
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	32 MHz	3mm	2.5mm	0.6mm
ELS07-32.768kHz-6-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	32.768 kHz	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-7-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	32.768 kHz	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	32.768 kHz	8mm	3.8mm	2.4mm
ELS06-32.768kHz-9-T	AEL晶振	32.768 kHz	2mm	1.2mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	32.768 kHz	1.6mm	1mm	0.5mm
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	24 MHz	1.6mm	1.2mm	0.4mm
